TURN SIGNALS

ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

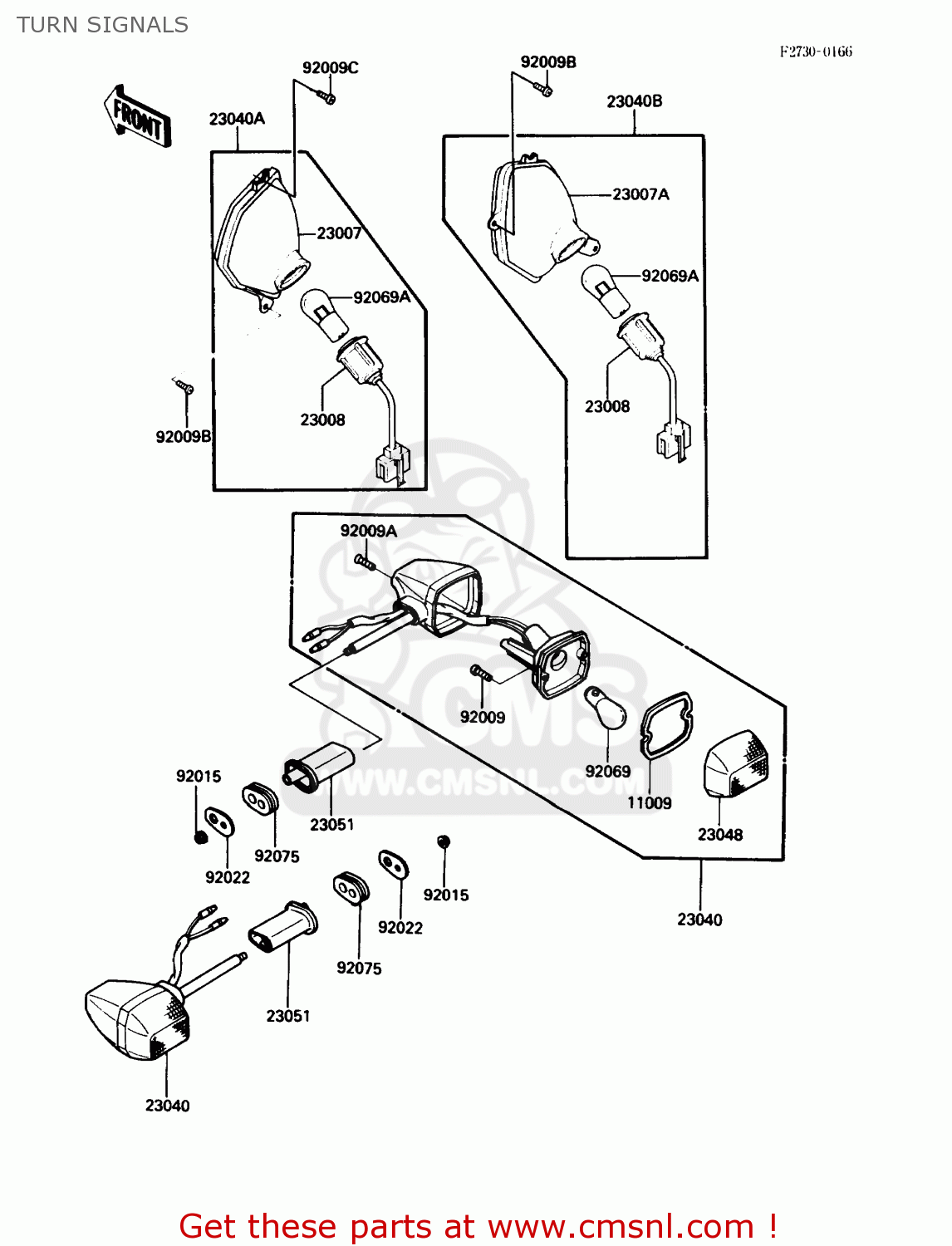

Turn signals diagram ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

TURN SIGNALS ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
TURN SIGNALS ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
TURN SIGNALS ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091402
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091402
€ 3.50
23007
230071142
ref: 23007
LENS-COMP,SIGNAL LAMP
230071142
€ 19.50
23007A
230071143
ref: 23007A
LENS-COMP,SIGNAL LAMP
230071143
€ 35.00
23008
230081299
ref: 23008
SOCKET-ASSY,SIGNAL LA
€ 16.00
23040
230401108
ref: 23040
LAMP-SIGNAL,RR
230401108
€ 39.50
23040A
230401136
ref: 23040A
LAMP-SIGNAL,FR,LH
€ 55.00
23040B
230401137
ref: 23040B
LAMP-SIGNAL,FR,RH
€ 56.00
23048
230481054
ref: 23048
LENS-SIGNAL LAMP
230481054
€ 12.00
23051
230511165
ref: 23051
BRACKET-SIGNAL LAMP,R
230511165
€ 17.00
92009
920091115
ref: 92009
SCREW,TAPPING,3X16
920091115
€ 2.00
92009A
920091304
ref: 92009A
SCREW,4X20
920091304
€ 3.00
92009B
920091355
ref: 92009B
SCREW,4X18
920091355
€ 2.50
92009C
920091444
ref: 92009C
SCREW
920091444
€ 2.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221672
ref: 92022
WASHER,SIGNAL LAMP
920221672
€ 3.50
92069
92069055
ref: 92069
BULB 12V 32CP
92069055
€ 4.50
92069A
92069060
ref: 92069A
BULB.12V 23/8W
92069060
€ 5.00
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
920751698
€ 6.00
