CYLINDER/PISTON(S)

ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

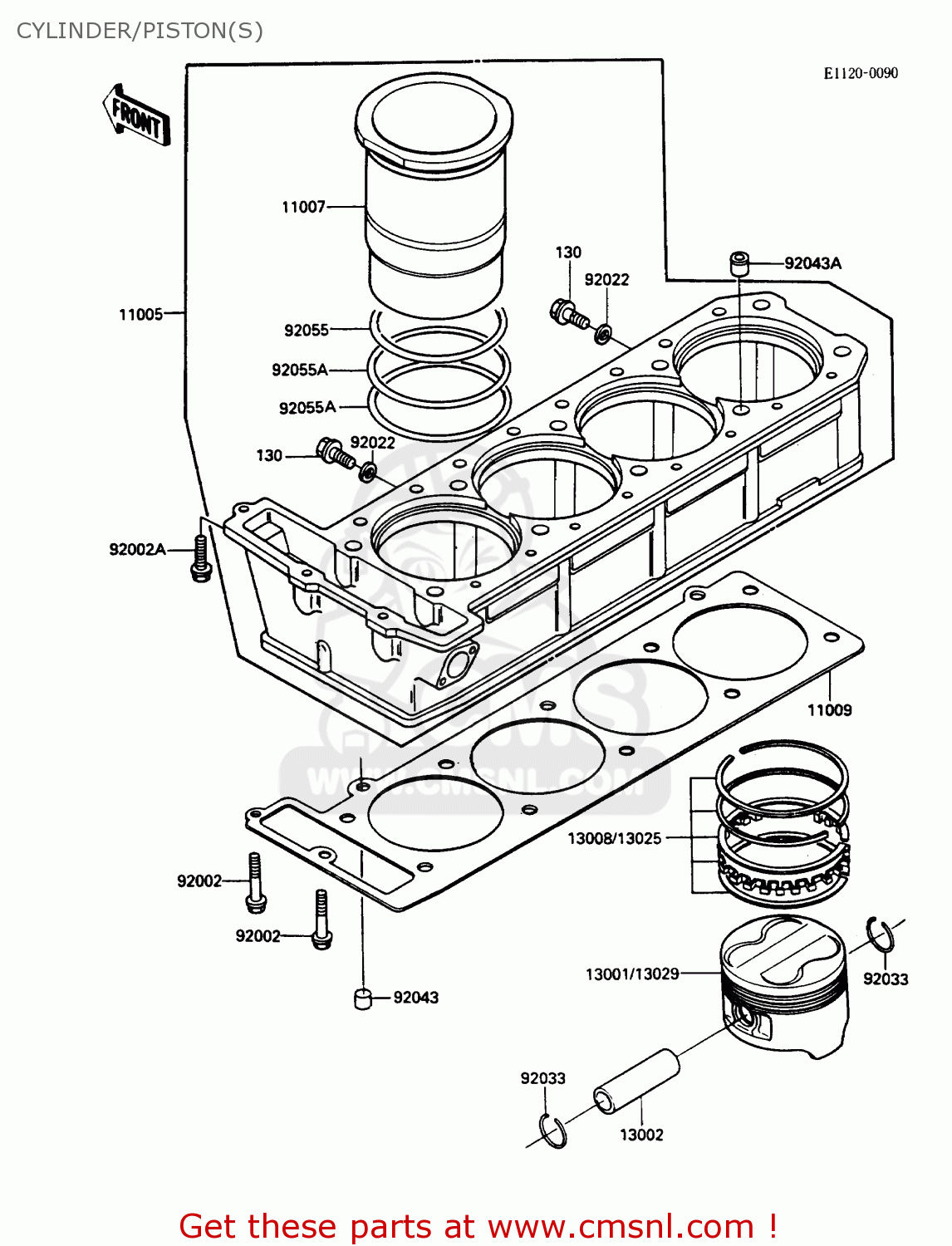

Cylinder/piston(s) diagram ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

11005

110051430
ref: 11005

CYLINDER-ENGINE

€ 1,685.00

11007

110071076
ref: 11007

LINER-CYLINDER

€ 109.50

11009

110091505
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 24.50

13001

130011197
ref: 13001

PISTON-ENGINE,STD

€ 76.00

13002

130021058
ref: 13002

PIN-PISTON

€ 17.00

13008

130081066
ref: 13008

RING-SET-PISTON,STD

€ 60.50

13025

130251065
ref: 13025

RING-SET-PISTON L,O/S

€ 39.50

13029

130291132
ref: 13029

PISTON-ENGINE L,O/S 0

€ 99.00

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92002A

920021138
ref: 92002A

BOLT,6X30

€ 3.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92043A

920431279
ref: 92043A

PIN,11.5X14X14

€ 3.00

92055

920551229
ref: 92055

RING-O,78MM

€ 13.50

92055A

920551247
ref: 92055A

RING-O,80.6X2.4

€ 8.00
