BALANCER

ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

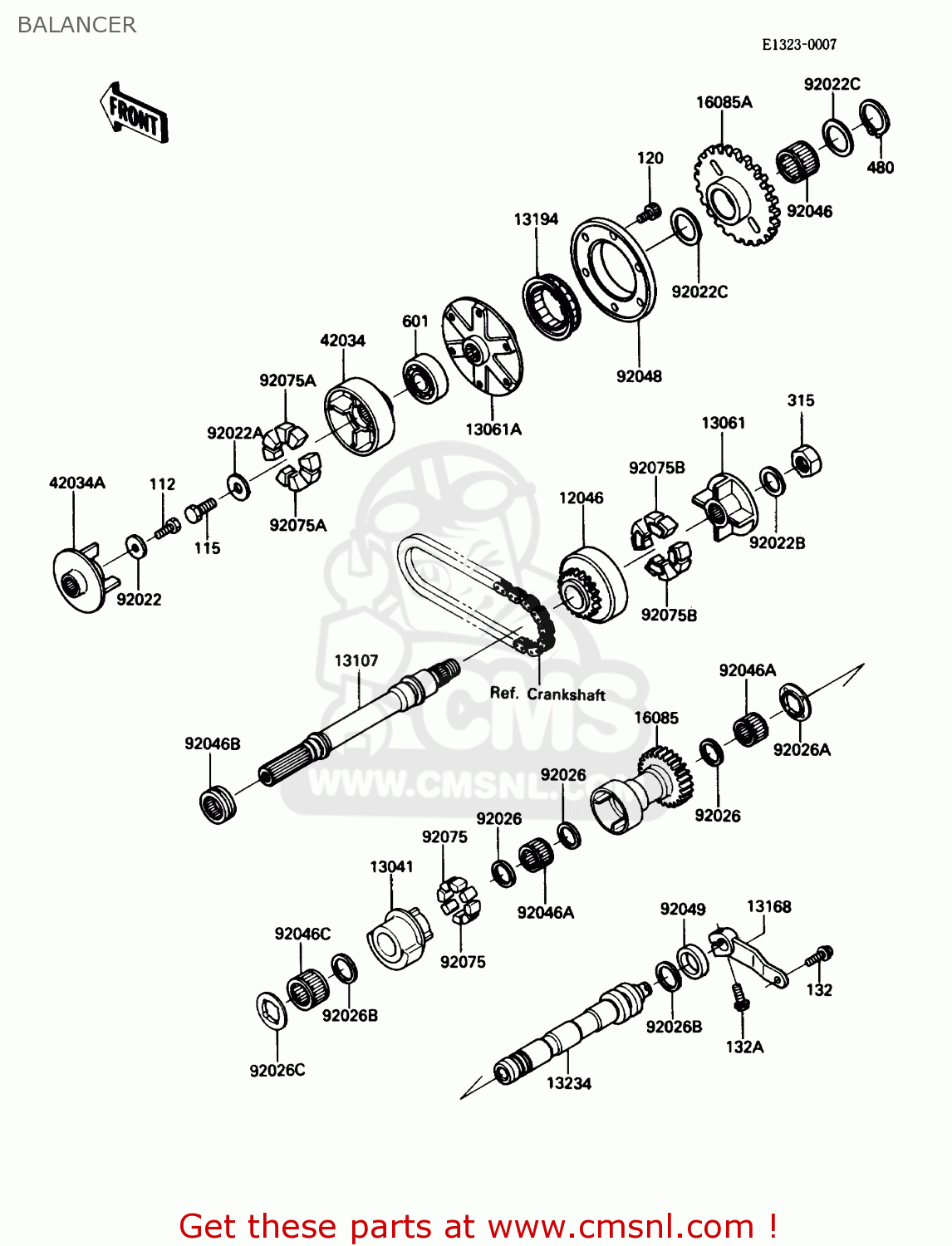

Balancer diagram ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

BALANCER ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
BALANCER ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
BALANCER ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
112
112G0616
ref: 112
BOLT UPSET,6X16
112G0616
€ 1.00
115
115G0820
ref: 115
BOLT,8X20
115G0820
€ 2.00
120
120P0612
ref: 120
BOLT,SOCKET,6X12
120P0612
€ 1.00
132
132W0616
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132W0620
ref: 132A
BOLT-FLANGED-SMALL
132W0620
€ 2.00
315
315G1600
ref: 315
NUT-HEX-FINE
€ 2.50
480
480J2500
ref: 480
CIRCLIP-TYPE-C,25MM
480J2500
€ 1.00
601
601A6203
ref: 601
BEARING-BALL,#6203
601A6203
€ 10.50
12046
120461083
ref: 12046
SPROCKET,GENERATOR
120461083
€ 89.00
13041
130411064
ref: 13041
BALANCER
130411064
€ 122.00
13061
130611183
ref: 13061
BOSS,SPROCKET
130611183
€ 57.00
13061A
130611191
ref: 13061A
BOSS,COUPLING
€ 76.00
13107
131071108
ref: 13107
SHAFT
131071108
€ 175.50
13168
131681236
ref: 13168
LEVER,BALANCER
131681236
€ 20.00
13194
131941067
ref: 13194
CLUTCH-ONEWAY
131941067
€ 81.00
13234
132341072
ref: 13234
SHAFT-COMP,BALNCER
132341072
€ 179.00
16085
160851139
ref: 16085
GEAR,BALANCER
€ 141.50
16085A
160851173
ref: 16085A
GEAR,ONEWAY CLUTCH
160851173
€ 100.00
42034
420341055
ref: 42034
COUPLING
420341055
€ 64.00
42034A
420341056
ref: 42034A
COUPLING
420341056
€ 58.00
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92022A
920221518
ref: 92022A
WASHER,8X22X3
920221518
€ 2.50
92022B
920221519
ref: 92022B
WASHER,16X26X2
920221519
€ 3.00
92022C
92022225
ref: 92022C
WASHER-THRUST
92022225
€ 3.50
92026
920261213
ref: 92026
SPACER,21.3X24.3X1.5
920261213
€ 4.00
92026A
920261214
ref: 92026A
SPACER,BALANCER
920261214
€ 29.50
92026B
920261223
ref: 92026B
SPACER,21.3X26X1
920261223
€ 4.50
92026C
920261271
ref: 92026C
SPACER
€ 29.50
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
920461022
€ 24.50
92046A
920461105
ref: 92046A
BEARING-NEEDLE,K21X25
920461105
€ 23.50
92046B
920461109
ref: 92046B
BEARING-NEEDLE,RNA490
920461109
€ 48.50
92046C
920461155
ref: 92046C
BEARING-NEEDLE
920461155
€ 28.00
92048
920481065
ref: 92048
RACE,ONEWAY CLUTCH
920481065
€ 71.00
92049
920491174
ref: 92049
SEAL-OIL,S192705
920491174
€ 6.00
92075
920751709
ref: 92075
DAMPER,BALANCER
920751709
€ 3.50
92075A
920751790
ref: 92075A
DAMPER,COUPLING
920751790
€ 6.50
92075B
920751810
ref: 92075B
DAMPER,COUPLING
920751810
€ 6.50
