Genuine ZG Kawasaki Parts delivered quickly!


CARBURETOR

ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

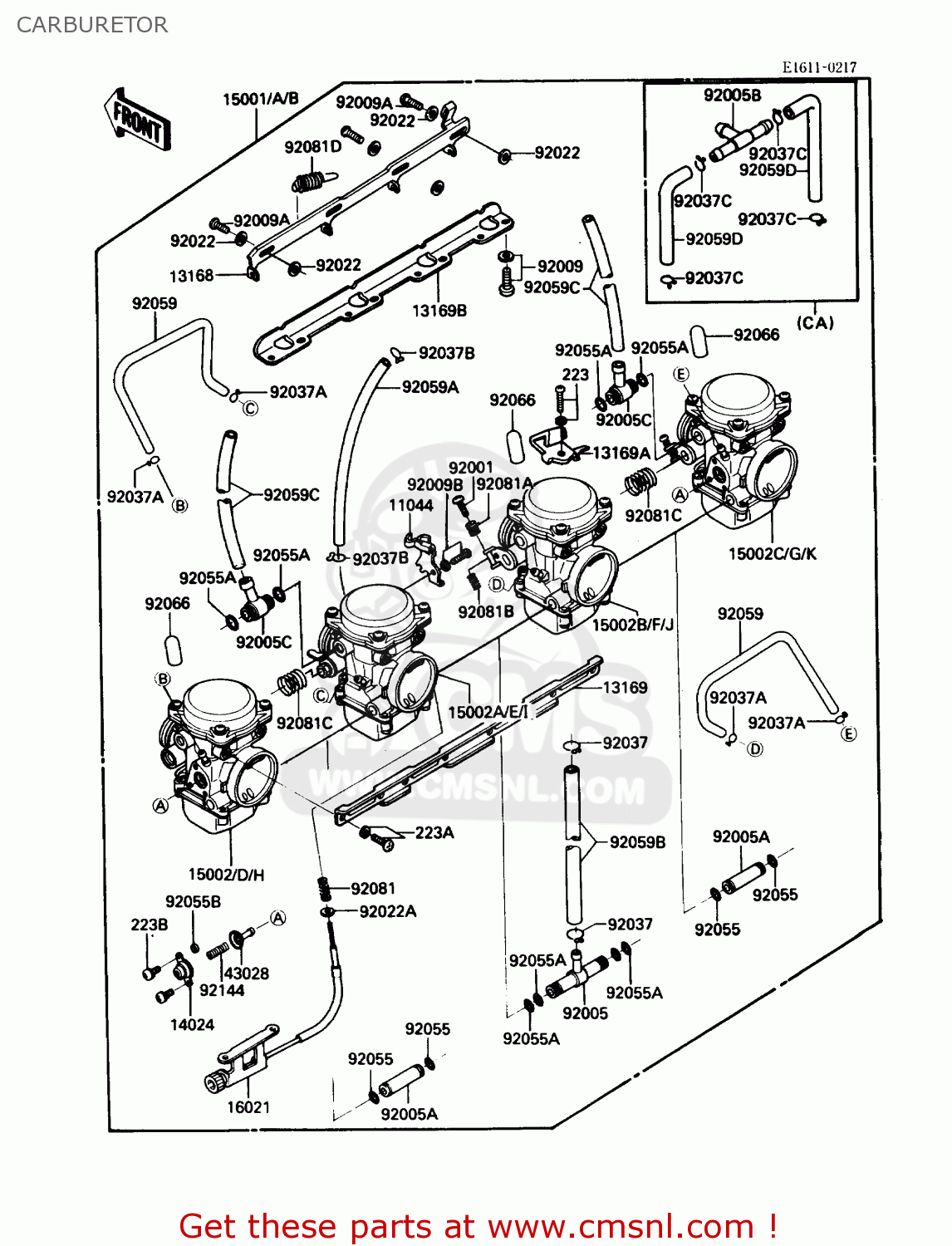

Carburetor diagram ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA

CARBURETOR ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
CARBURETOR ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
CARBURETOR ZG1000A3 CONCOURS 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
110441546
€ 41.00
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
131691869
€ 80.50
13169A
131691871
ref: 13169A
PLATE,STARTER CABLE
€ 16.00
13169B
131691873
ref: 13169B
PLATE,CARBURETOR STAY
€ 85.00
14024
140251903
ref: 14024
COVER,AIR CUT VALVE
140251903
€ 43.00
15001
150011247
ref: 15001
CN
CARBURETOR-ASSY
€ 2,231.00
15001A
150011251
ref: 15001A
US
CARBURETOR ASSEMBLY
€ 1,427.50
15001B
150011252
ref: 15001B
CA
CARBURETOR ASSEMBLY
€ 1,401.50
15002
150021346
ref: 15002
CN
CARBURETOR,LH,OUTSIDE
€ 707.00
15002A
150021347
ref: 15002A
CN
CARBURETOR,LH,INSIDE
€ 707.00
15002B
150021348
ref: 15002B
CN
CARBURETOR,RH,INSIDE
€ 629.50
15002C
150021349
ref: 15002C
CN
CARBURETOR,RH,OUTSIDE
€ 629.50
15002D
150021362
ref: 15002D
US
CARBURETOR,OUTSIDE,LH
€ 393.50
15002E
150021363
ref: 15002E
US
CARBURETOR,INSIDE,LH
€ 386.50
15002F
150021364
ref: 15002F
US
CARBURETOR,INSIDE,RH
€ 393.50
15002G
150021365
ref: 15002G
US
CARBURETOR,OUTSIDE,RH
€ 386.50
15002H
150021366
ref: 15002H
CA
CARBURETOR,OUTSIDE,LH
€ 413.50
15002I
150021367
ref: 15002I
CA
CARBURETOR,INSIDE,LH
€ 413.50
15002J
150021368
ref: 15002J
CA
CARBURETOR,INSIDE,RH
€ 413.50
15002K
150021369
ref: 15002K
CA
CARBURETOR,OUTSIDE,RH
€ 421.00
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
160211101
€ 83.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
920051109
€ 25.00
92005B
920051119
ref: 92005B
CA
FITTING,T-TYPE
€ 17.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
92005C
920051125
ref: 92005C
FITTING,T-TYPE
920051125
€ 18.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
920371142
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
920371477
€ 3.00
92037C
920371606
ref: 92037C
CA
TUBE CLAMP
€ 2.50
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551245
ref: 92055B
RING-O
920551245
€ 3.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
920591140
€ 17.50
92059A
920591173
ref: 92059A
TUBE,5X9X200
€ 16.50
92059B
920591492
ref: 92059B
TUBE,7.3X12.5X260
€ 25.00
92059C
920591598
ref: 92059C
CNUS
TUBE,6.5X9.5X260
€ 20.50
92059D
920591688
ref: 92059D
CA
TUBE
€ 17.00
92066
92068006
ref: 92066
US
RUBBER PLUG
92068006
€ 2.50
92066
92068006
ref: 92066
CN
RUBBER PLUG
92068006
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
920811762
€ 14.00
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
921441072
€ 6.50
