FUEL TANK
Z750P9 GT750 1994 UNITED KINGDOM

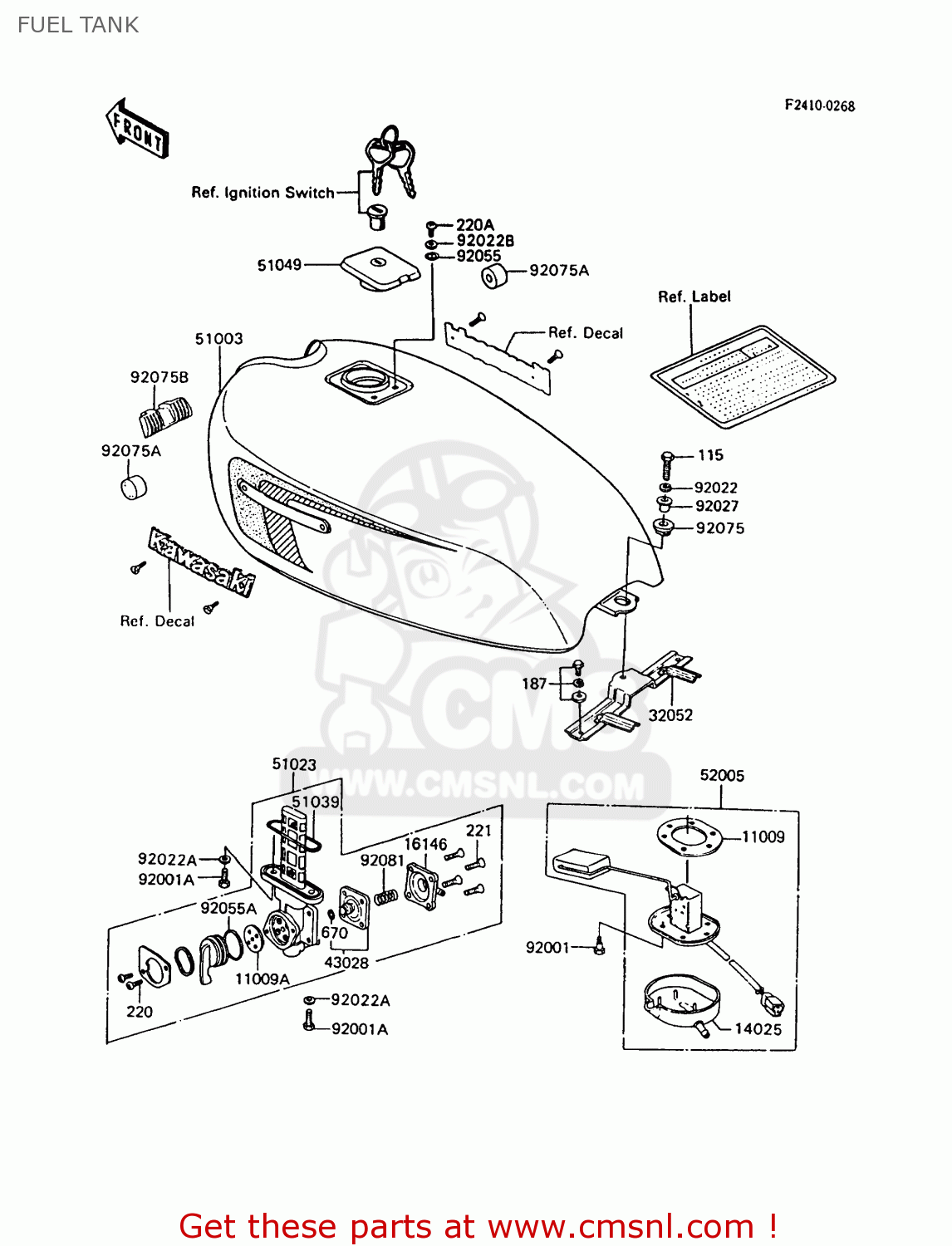

Fuel tank diagram Z750P9 GT750 1994 UNITED KINGDOM
FUEL TANK Z750P9 GT750 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
115
115B0830
ref: 115
BOLT 8X30
€ 3.00
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
11009
110091037
ref: 11009
GASKET (NAS)
€ 14.00
11009A
110091194
ref: 11009A
GASKET,TAP VALVE (NAS)
€ 6.50
14025
140251400
ref: 14025
COVER,FUEL GAUGE
€ 22.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 14.00
32052
320521078
ref: 32052
BRACKET-TANK,RR
€ 16.50
43028
430281015
ref: 43028
DIAPHRAGM,TAP
€ 14.50
51003
510035447M4
ref: 51003
TANK-COMP-FUEL,L.P.BL
€ 898.00
51023
510231031
ref: 51023
TAP ASSY,FUEL
€ 107.00
51039
51039010
ref: 51039
RING,TAP FLANGED
€ 4.50
51049
510491084
ref: 51049
CAP-TANK,FUEL
€ 156.50
52005
520051026
ref: 52005
GAUGE,FUEL
€ 109.00
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
€ 4.50
92001A
920011091
ref: 92001A
BOLT,6X20,FUEL TAP
€ 2.50
92022
92022035
ref: 92022
WASHER-FUEL TANK FIT
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92022B
920221977
ref: 92022B
WASHER,5.1X10X1.0
€ 2.50
92027
920271081
ref: 92027
COLLAR
€ 6.50
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551027
ref: 92055A
RING-O,TAP LEVER
€ 3.50
92075
920751116
ref: 92075
DAMPER,FUEL TANK
€ 4.00
92075A
92075125
ref: 92075A
DAMPER RUBBER-FL TANK
€ 4.00
92075B
920751669
ref: 92075B
DAMPER,FUEL TANK
€ 20.50
92081
920811171
ref: 92081
SPRING,TAP
€ 2.50
