FRONT FORK
Z750P9 GT750 1994 UNITED KINGDOM

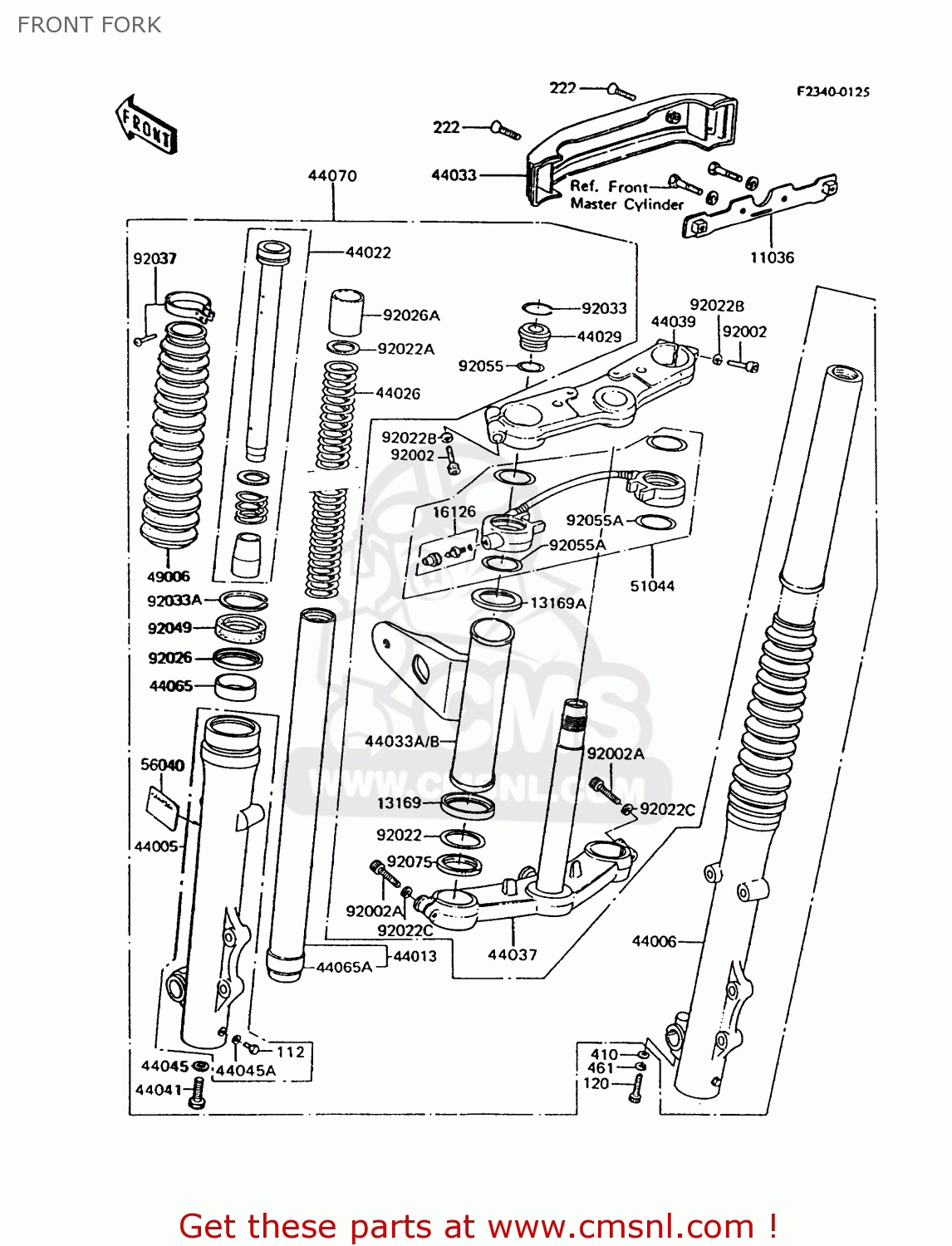

Front fork diagram Z750P9 GT750 1994 UNITED KINGDOM
FRONT FORK Z750P9 GT750 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
€ 0.50
11036
110361320
ref: 11036
BRACKET-A,FORK COVER
€ 19.00
13169
131691134
ref: 13169
PLATE,FORK COVER,LOWE
€ 8.00
13169A
131691135
ref: 13169A
PLATE,FORK COVER,UPPE
€ 6.00
16126
161261043
ref: 16126
VALVE,AIR
€ 24.50
44005
440051091
ref: 44005
PIPE-LEFT FORK OUTER,
€ 271.50
44006
440061091
ref: 44006
PIPE-RIGHT FORK OUTER
€ 271.50
44013
440131092
ref: 44013
PIPE-FORK INNER
€ 137.50
44022
440221092
ref: 44022
CYLINDER-FORK
€ 77.50
44026
440261184
ref: 44026
SPRING-FRONT FORK
€ 57.50
44029
440291006
ref: 44029
SEAT-FORK SPRING
€ 9.50
44033
440331084
ref: 44033
COVER-FORK
€ 28.00
44033A
440331093
ref: 44033A
COVER-FORK,LH,F.BLACK
€ 72.50
44033B
440331094
ref: 44033B
COVER-FORK,RH,F.BLACK
€ 65.00
44037
440371082
ref: 44037
HOLDER-FORK UNDER
€ 205.00
44039
440391058
ref: 44039
HOLDER-FORK UPPER
€ 94.00
44041
44041078
ref: 44041
BOLT, FORK CYLINDER
€ 6.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651011
ref: 44065
BUSHING,FORK
€ 16.00
44065A
440651052
ref: 44065A
BUSHING-FRONT FORK,IN
€ 16.50
44070
440705022
ref: 44070
DAMPER-ASSY,FORK
€ 710.00
49006
490061070
ref: 49006
BOOT,FORK,BLACK
€ 44.00
51044
510441014
ref: 51044
TUBE-ASSY,FRONT FORK
€ 149.50
56040
560401033
ref: 56040
LABEL-WARNING
€ 2.50
92002
920021285
ref: 92002
BOLT,SOCKET,8X40
€ 2.50
92002A
920021286
ref: 92002A
BOLT,SOCKET,10X40
€ 4.50
92022
920221111
ref: 92022
WASHER,FORK COVER
€ 7.50
92022A
920221310
ref: 92022A
WASHER,FORK SPRING
€ 3.00
92022B
920221552
ref: 92022B
WASHER,SPRING,8MM
€ 2.50
92022C
920221553
ref: 92022C
WASHER,SPRING,10MM
€ 1.50
92026
920261038
ref: 92026
SPACER,FORK
€ 6.50
92026A
920261112
ref: 92026A
SPACER,FORK SPRING
€ 11.50
92033
920331023
ref: 92033
CIRCLIP
€ 3.00
92033A
920331055
ref: 92033A
RING,SNAP
€ 4.00
92037
920371346
ref: 92037
CLAMP,FRONT FORK,BLAC
€ 12.00
92049
920491063
ref: 92049
SEAL-OIL,FORK
€ 14.50
92055
920551034
ref: 92055
RING-O
€ 5.00
92055A
920551131
ref: 92055A
RING-O,TUBE ASSY
€ 3.00
92075
920751137
ref: 92075
DAMPER,FORK COVER
€ 5.50
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
222
222C0518
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
