CARBURETOR
Z750P9 GT750 1994 UNITED KINGDOM

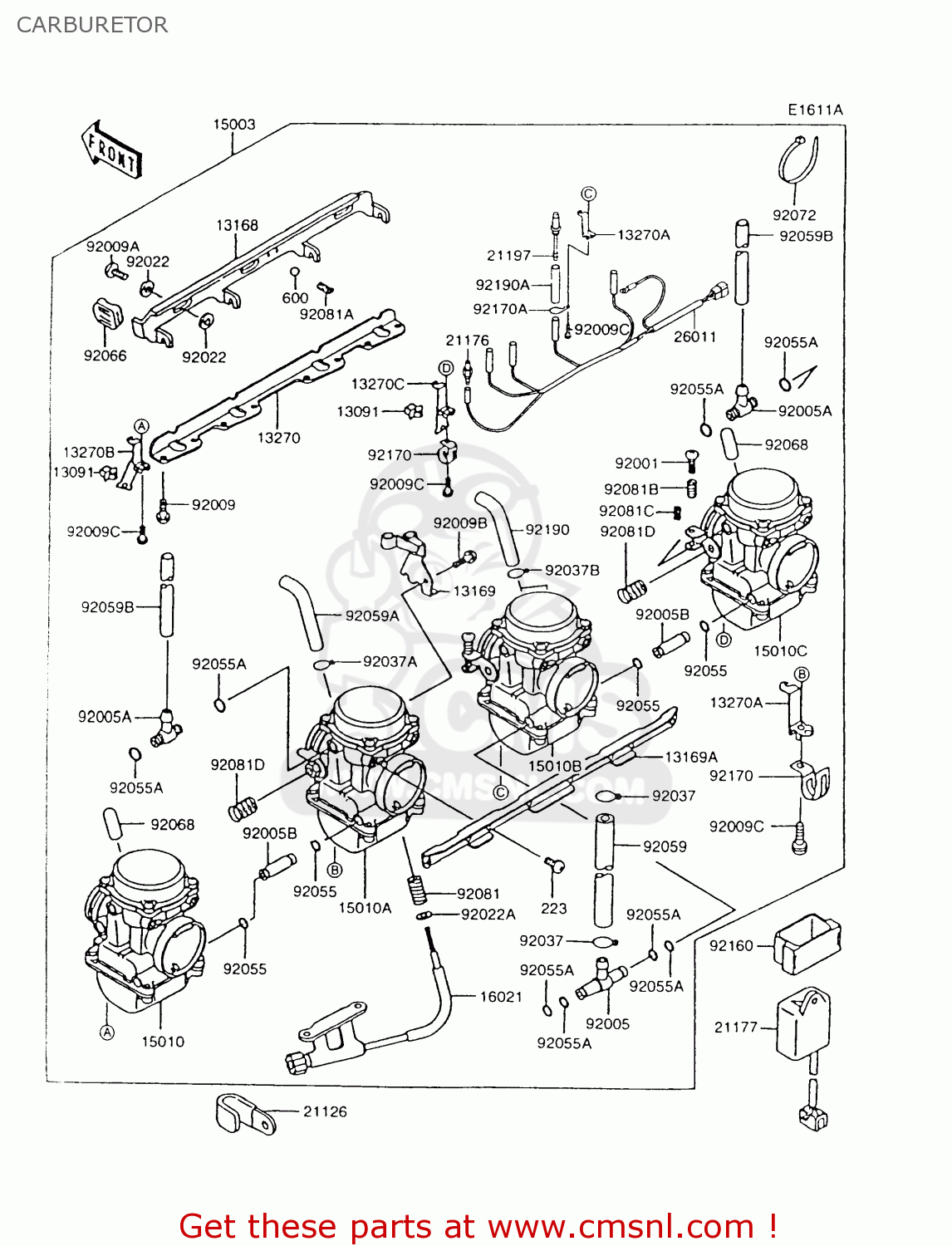

Carburetor diagram Z750P9 GT750 1994 UNITED KINGDOM
CARBURETOR Z750P9 GT750 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
13091
130911866
ref: 13091
HOLDER,HEATER
€ 6.50
13168
131681434
ref: 13168
LEVER,STARTER
€ 96.50
13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
€ 48.00
13169A
131691963
ref: 13169A
PLATE,CARBURETOR STAY
€ 85.00
13270
132701071
ref: 13270
PLATE,LWR,STAY
€ 89.00
13270A
132701075
ref: 13270A
PLATE,WIRE
€ 5.00
13270B
132701143
ref: 13270B
PLATE,HEATER STAY
€ 9.00
13270C
132701145
ref: 13270C
PLATE,HEATER STAY
€ 8.50
15003
150031088
ref: 15003
CARBURETOR-ASSY
€ 1,997.00
15010
150101718
ref: 15010
CARBURETOR,LH,OUTSIDE
€ 952.00
15010A
150101719
ref: 15010A
CARBURETOR,LH,INSIDE
€ 952.00
15010B
150101720
ref: 15010B
CARBURETOR,RH,INSIDE
€ 952.00
15010C
150101721
ref: 15010C
CARBURETOR,RH,OUTSIDE
€ 952.00
16021
160211136
ref: 16021
SCREW-THROTTLE STOP
€ 75.50
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
€ 3.00
21176
211761067
ref: 21176
SENSOR,HETER
€ 100.00
21177
211771053
ref: 21177
CONTROLLER
€ 163.50
21197
211971004
ref: 21197
HEATER
€ 119.50
26011
260111600
ref: 26011
WIRE-LEAD
€ 38.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051125
ref: 92005A
FITTING,T-TYPE
€ 18.00
92005B
920051157
ref: 92005B
FITTING
€ 25.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92009C
920091706
ref: 92009C
SCREW
€ 2.00
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371201
ref: 92037A
CLAMP
€ 3.00
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591378
ref: 92059A
TUBE,5X9X150
€ 16.50
92059B
920591720
ref: 92059B
TUBE,6.5X9.5X230
€ 11.50
92066
920661157
ref: 92066
PLUG,STARTER LEVER
€ 10.50
92068
92068006
ref: 92068
RUBBER PLUG
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
92072
920721250
ref: 92072
BAND
€ 3.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811619
ref: 92081A
SPRING,SHAFT STOP
€ 4.50
92081B
920811620
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811621
ref: 92081C
SPRING,THROTTLE ADJUS
€ 3.00
92081D
920811622
ref: 92081D
SPRING,THROTTLE ADJUS
€ 6.50
92160
921601537
ref: 92160
DAMPER
€ 4.50
92170
921701432
ref: 92170
CLAMP,HARNESS
€ 2.50
92170A
921701433
ref: 92170A
CLAMP,HEATER
€ 5.50
92190
921901316
ref: 92190
TUBE,4.5X8X200
€ 10.00
92190A
921901494
ref: 92190A
TUBE
€ 3.50
