REAR HUB
Z750P4 1985 UNITED KINGDOM WG

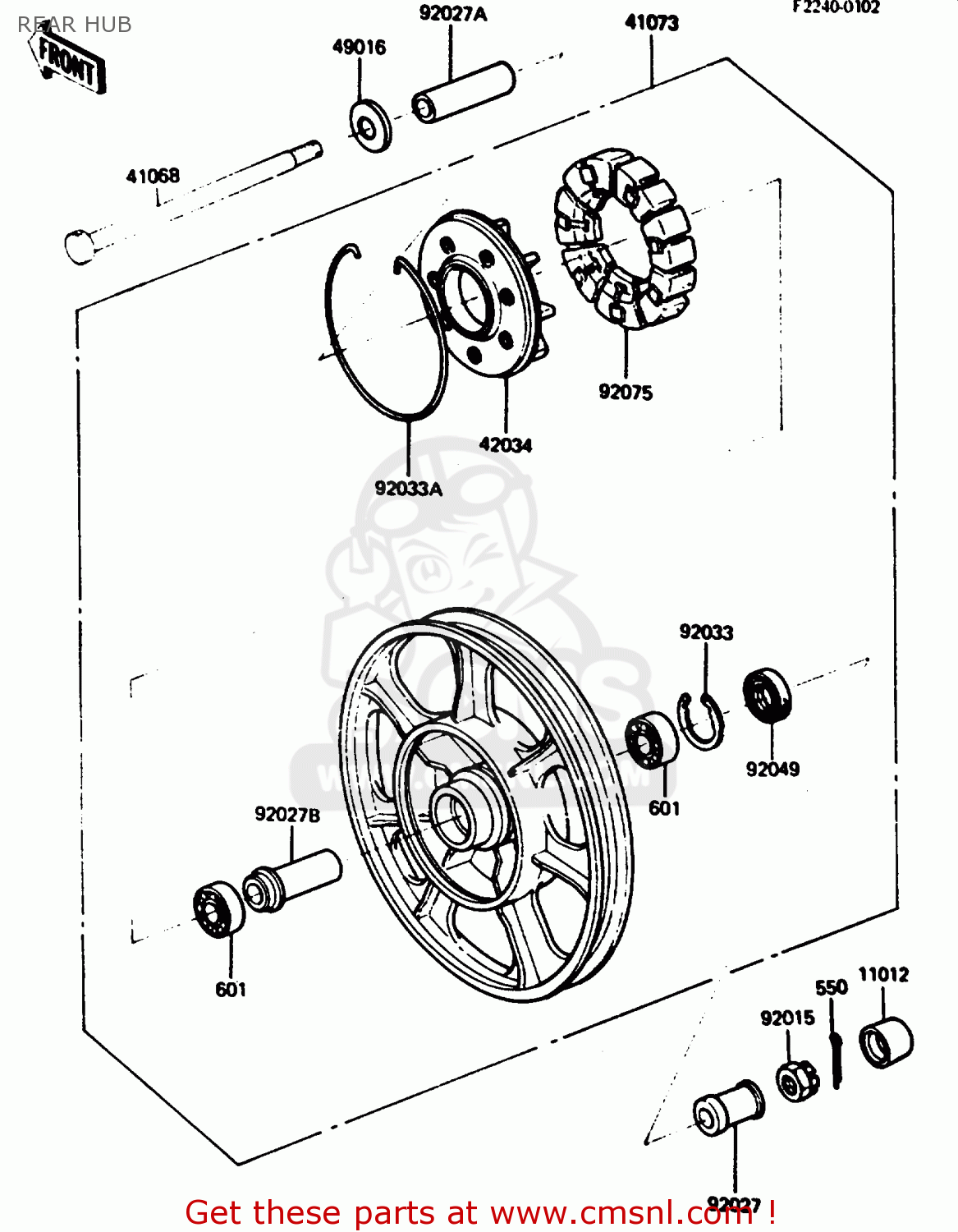

Rear hub diagram Z750P4 1985 UNITED KINGDOM WG
REAR HUB Z750P4 1985 UNITED KINGDOM WG
×
prices are in EUR
ref
part #
description
quantity
11012
110121590
ref: 11012
WG
CAP,AXLE NUT
€ 3.50
41068
410681127
ref: 41068
AXLE,RR
€ 61.50
41073
41073120321
ref: 41073
WHEEL-ASSY,RR,F.BLACK
€ 757.00
42034
420341029
ref: 42034
COUPLING,RR HUB
€ 154.50
49016
490161038
ref: 49016
COVER-SEAL,RR AXLE
€ 4.50
92015
92015056
ref: 92015
NUT-RR BRAKE ROD ADJS
€ 4.00
92027
920271414
ref: 92027
COLLAR,L=41
€ 13.00
92027A
920271415
ref: 92027A
COLLAR,17.2X25X79
€ 14.00
92027B
920271416
ref: 92027B
COLLAR,L=60
€ 12.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331075
ref: 92033A
RING-SNAP,194MM
€ 10.50
92049
920491056
ref: 92049
OIL SEAL,BJN28475
€ 8.50
92075
920751372
ref: 92075
DAMPER,RR HUB SHOCK
€ 66.00
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6303Z
ref: 601
BEARING-BALL,#6303ZC3
€ 17.50
