IGNITION SWITCH
Z750P4 1985 UNITED KINGDOM WG

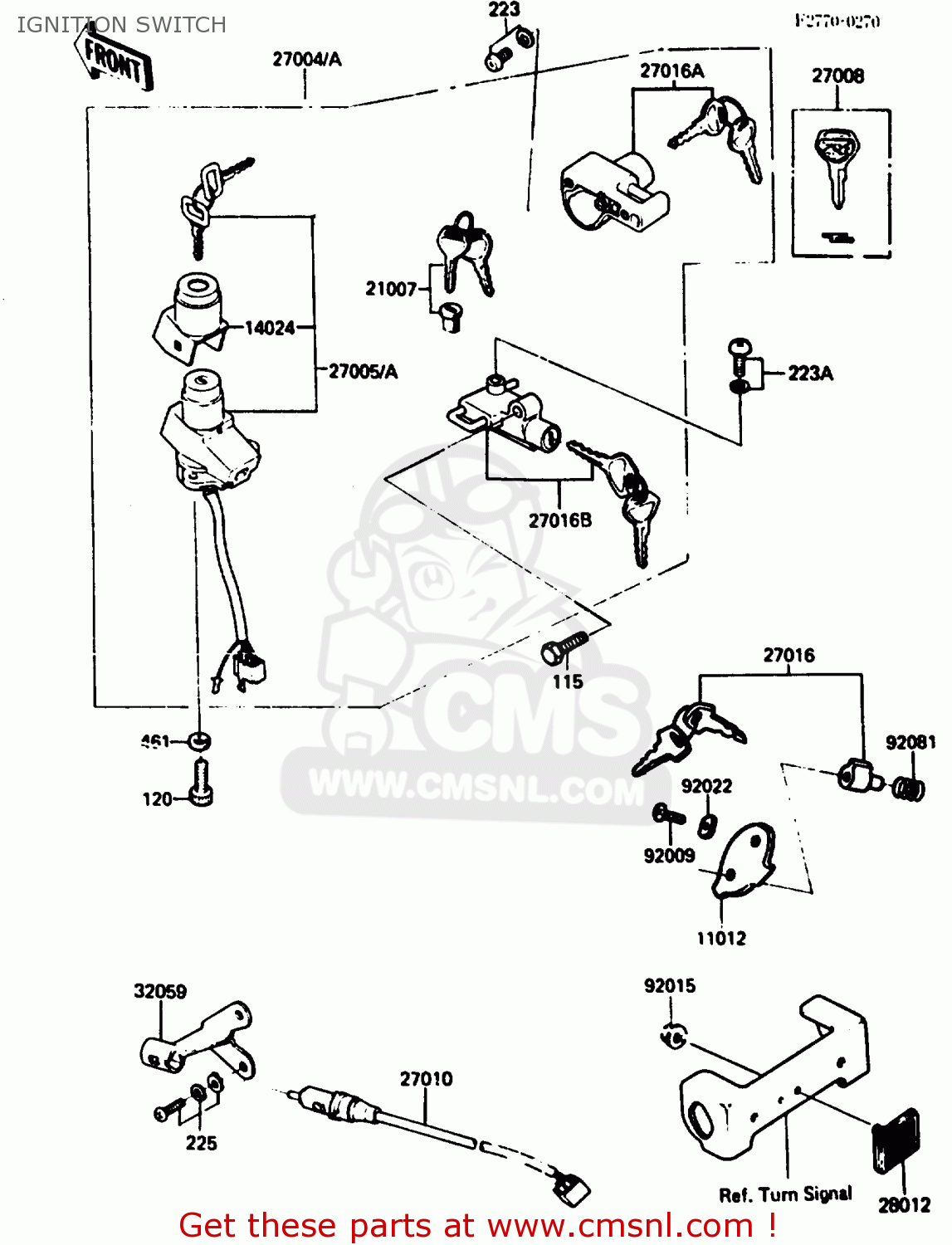

Ignition switch diagram Z750P4 1985 UNITED KINGDOM WG
IGNITION SWITCH Z750P4 1985 UNITED KINGDOM WG
×
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
WG
CAP,STEERING LOCK
€ 4.50
14024
140241332
ref: 14024
UK
COVER,IGNITION SWITCH
€ 9.00
21007
210075005
ref: 21007
ROTOR,FUEL TANK
€ 71.00
27004
270045222
ref: 27004
UK
SWITCH-ASSY
€ 267.00
27004A
270045223
ref: 27004A
WG
SWITCH-ASSY
€ 251.00
27005
270055030
ref: 27005
UK
SWITCH-ASSY-IGNITION
€ 235.50
27005A
270055031
ref: 27005A
WG
SWITCH-ASSY-IGNITION
€ 154.00
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 13.50
27010
270101060
ref: 27010
SWITCH,BRAKE LAMP
€ 15.00
27016
ref: 27016
WG (LOCAL PROCUREMEN
27016A
270165038
ref: 27016A
LOCK-ASSY,HELMET
€ 67.50
27016B
270165049
ref: 27016B
LOCK-ASSY,SEAT
€ 63.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
32059
320591021
ref: 32059
BRACKET-SWITCH,BRAKE
€ 6.00
92009
92008007
ref: 92009
WG
SCREW-TAPPING
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
92097003
ref: 92022
WG
WASHER
€ 2.50
92081
27032001
ref: 92081
WG
SPRING-STEERING LOCK
€ 3.50
115
115C0830
ref: 115
BOLT-SMALL-UPSET,8X30
€ 2.50
120
120T0616
ref: 120
BOLT-SOCKET
€ 1.50
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
223A
223C0610
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
225
225C0512
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
