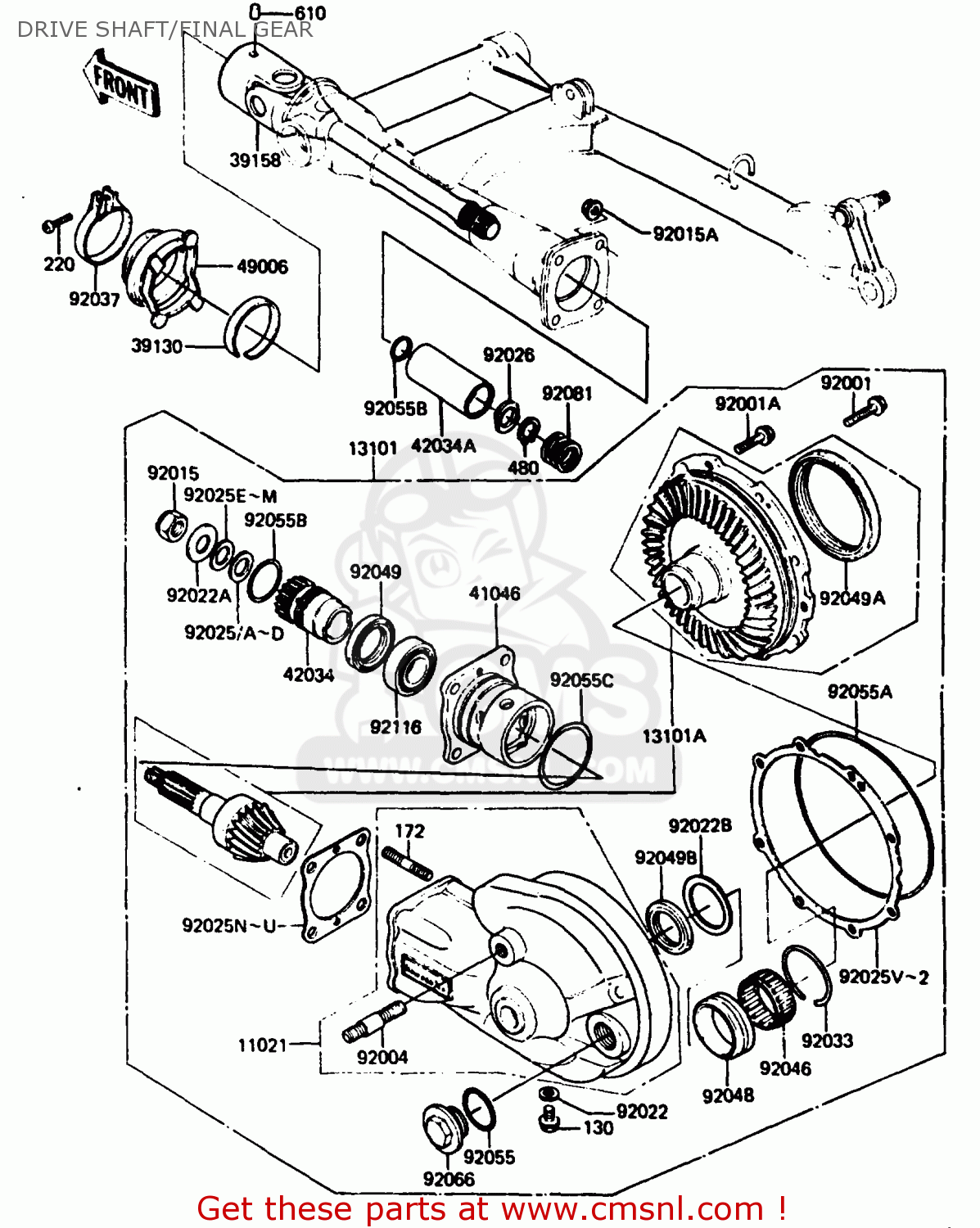

DRIVE SHAFT/FINAL GEAR

ref

part #

description

quantity

11021

11021101521
ref: 11021

CASE-ASSY,FINAL GEAR,

€ 908.50

13101

13101102421
ref: 13101

GEAR-ASSY,FINAL

€ 1,983.00

13101A

131015035
ref: 13101A

GEAR-ASSY,FINAL BEVEL

€ 1,199.50

39130

391301002
ref: 39130

SPRING,LEAF

€ 3.00

39158

391581005
ref: 39158

SHAFT-ASSY-DRIVE

€ 237.50

41046

410461015
ref: 41046

HOUSING-BEARING

€ 132.50

42034

420341030
ref: 42034

COUPLING,DRIVE SHAFT,

€ 81.00

42034A

420341031
ref: 42034A

COUPLING,DRIVE SHAFT,

€ 85.50

49006

490061059
ref: 49006

BOOT,PROPELLER SHAFT

€ 22.50

92001

920011095
ref: 92001

BOLT,8X28

€ 4.50

92001A

920011324
ref: 92001A

BOLT,FLANGED,8X25

€ 3.00

92004

920041047
ref: 92004

STUD,RR SHOCKABSORBER

€ 10.00

92015

920151182
ref: 92015

NUT,12MM

€ 4.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00

92022

920221086
ref: 92022

WASHER,8.2X16X1

€ 2.50

92022A

920221293
ref: 92022A

WASHER,12.3X25X3.2

€ 4.00

92022B

920221294
ref: 92022B

WASHER,39X49.5X1

€ 4.50

92025

920251282
ref: 92025

SHIM,12.5X17X1.30

€ 6.50

92025A

920251283
ref: 92025A

SHIM,12.5X17X1.32

€ 6.00

92025B

920251284
ref: 92025B

SHIM,12.5X17X1.34

€ 6.00

92025C

920251285
ref: 92025C

SHIM,12.5X17X1.36

€ 6.00

92025D

920251286
ref: 92025D

SHIM,12.5X17X1.38

€ 6.00

92025E

920251287
ref: 92025E

SHIM,12.5X17X0.1

€ 3.50

92025F

920251288
ref: 92025F

SHIM,12.5X17X0.2

€ 3.50

92025G

920251289
ref: 92025G

SHIM,12.5X17X0.3

€ 3.50

92025H

920251290
ref: 92025H

SHIM,12.5X17X0.5

€ 4.00

92025I

920251291
ref: 92025I

SHIM,12.5X17X0.6

€ 5.50

92025J

920251292
ref: 92025J

SHIM,12.5X17X0.7

€ 6.00

92025K

920251293
ref: 92025K

SHIM,12.5X17X0.8

€ 5.50

92025L

920251294
ref: 92025L

SHIM,12.5X17X0.9

€ 5.50

92025M

920251295
ref: 92025M

SHIM,12.5X17X1.0

€ 5.50

92025N

920251312
ref: 92025N

SHIM,T=0.15

€ 7.00

92025O

920251313
ref: 92025O

SHIM,T=0.5

€ 5.50

92025P

920251314
ref: 92025P

SHIM,T=0.6

€ 6.00

92025Q

920251315
ref: 92025Q

SHIM,T=0.7

€ 6.00

92025R

920251316
ref: 92025R

SHIM,T=0.8

€ 7.00

92025S

920251317
ref: 92025S

SHIM,T=0.9

€ 6.50

92025T

920251318
ref: 92025T

SHIM,T=1.0

€ 6.50

92025U

920251319
ref: 92025U

SHIM,T=1.2

€ 6.00

92025V

920251336
ref: 92025V

SHIM,T=0.15

€ 11.00

92025W

920251337
ref: 92025W

SHIM,T=0.5

€ 11.00

92025X

920251338
ref: 92025X

SHIM,T=0.6

€ 12.00

92025Y

920251339
ref: 92025Y

SHIM,T=0.7

€ 12.00

92025Z

920251340
ref: 92025Z

SHIM,T=0.8

€ 12.00

920250

920251341
ref: 920250

SHIM,T=0.9

€ 11.00

920251

920251342
ref: 920251

SHIM,T=1.0

€ 12.00

920252

920251343
ref: 920252

SHIM,T=1.2

€ 12.00

92026

920261106
ref: 92026

SPACER,DRIVE SHAFT

€ 5.50

92033

920331074
ref: 92033

RING-SNAP,52MM

€ 3.00

92037

920371112
ref: 92037

CLAMP,BOOT FITTING

€ 11.50

92046

920461037
ref: 92046

BEARING-NEEDLE,KT3846

€ 46.50

92048

920481019
ref: 92048

RACE,ORT465021E01

€ 35.00

92049

920491084
ref: 92049

SEAL-OIL,SC28438

€ 9.00

92049A

920491085
ref: 92049A

SEAL-OIL,SC759510

€ 21.00

92049B

920491155
ref: 92049B

SEAL-OIL,SC32435.5

€ 10.00

92055

920551005
ref: 92055

RING-O,35.8X3.0

€ 3.50

92055A

920551039
ref: 92055A

RING-O,ID=150.4

€ 9.50

92055B

920551119
ref: 92055B

RING-O,27MM

€ 3.00

92055C

920551120
ref: 92055C

RING-0,55MM

€ 3.50

92066

92066100621
ref: 92066

PLUG,OIL FILLER CAP,F

€ 9.50

92081

920811427
ref: 92081

SPRING,DRIVE SHAFT

€ 3.50

92116

921161010
ref: 92116

BEARING-ROLLER,4T3200

€ 37.50

130

130B0812
ref: 130

BOLT,FLANGED,8X12

€ 0.50

172

172G0830
ref: 172

STUD,8X30

€ 1.50

220

220B0430
ref: 220

SCREW-PAN-CROS

€ 0.50

480

480J2000
ref: 480

CIRCLIP-TYPE-C,20MM

€ 1.00

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50
