OIL PUMP

Z550G7 GT550 1991 EUROPE UK SD SP

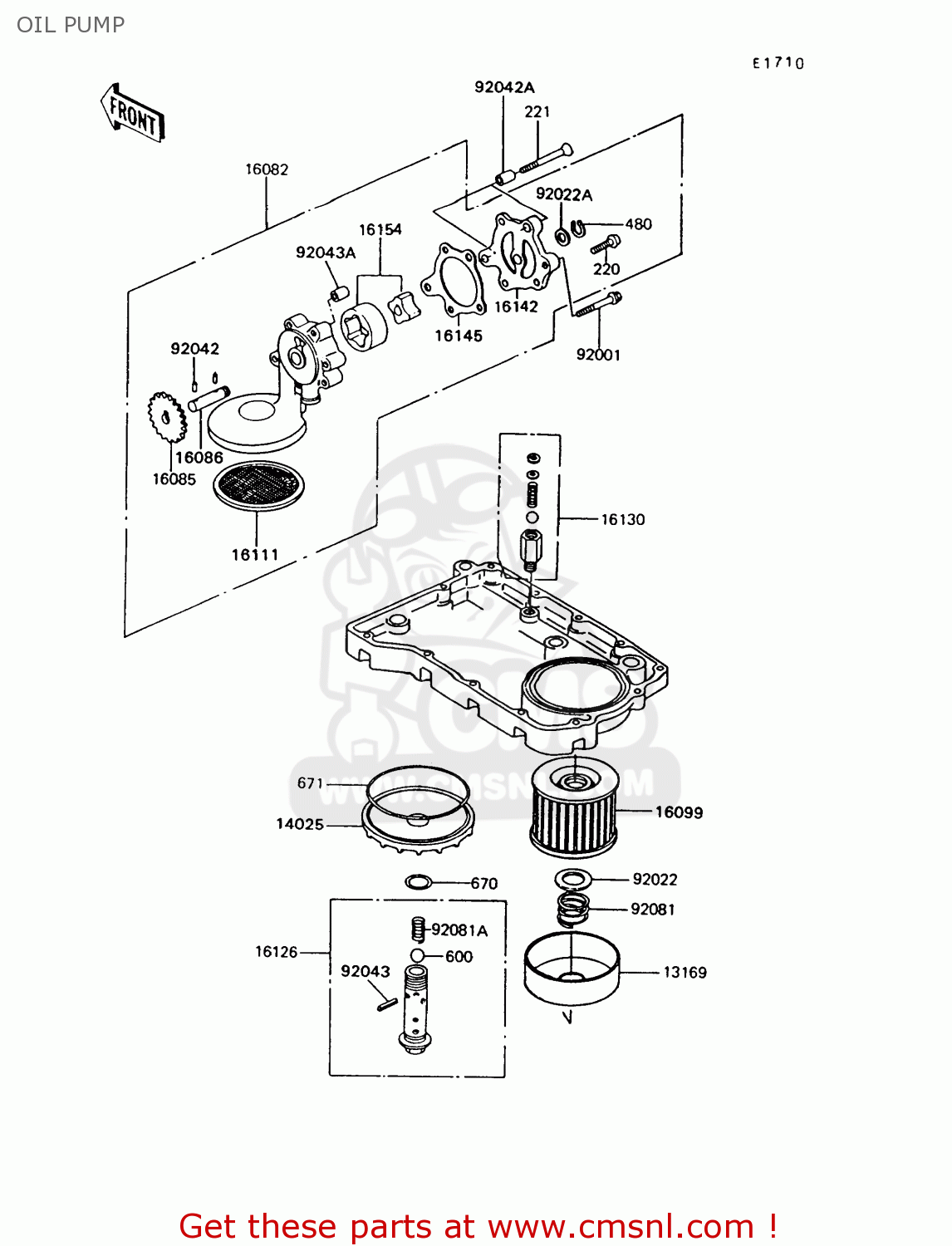

Oil pump diagram Z550G7 GT550 1991 EUROPE UK SD SP

OIL PUMP Z550G7 GT550 1991 EUROPE UK SD SP
OIL PUMP Z550G7 GT550 1991 EUROPE UK SD SP
OIL PUMP Z550G7 GT550 1991 EUROPE UK SD SP
prices are in EUR
ref
part #
description
quantity
220
220B0618
ref: 220
SCREW-PAN HEAD,6X18
220B0618
€ 2.50
221
221B0655
ref: 221
SCREW,COUNTERSUNK HED
221B0655
€ 3.00
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
480J1100
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
600A1200
€ 0.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
671
671B2590
ref: 671
O RING,90MM
671B2590
€ 6.50
13169
131691110
ref: 13169
PLATE,OIL FILTER
131691110
€ 4.50
14025
140251422
ref: 14025
COVER,OIL FILTER,F.BL
140251422
€ 31.00
16082
16082064
ref: 16082
PUMP-ASSY-OIL
16082064
€ 165.00
16085
16085025
ref: 16085
GEAR, OIL PUMP, 57T
€ 31.50
16086
16086004
ref: 16086
SHAFT,OIL PUMP
16086004
€ 17.00
16099
16099003
ref: 16099
FILTER,OIL
16099003
€ 6.50
16111
16111004
ref: 16111
FILTER,OIL PUMP
16111004
€ 23.50
16126
161261108
ref: 16126
VALVE,OIL FILTER
161261108
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
16142005
ref: 16142
COVER-PUMP
16142005
€ 24.00
16145
16145004
ref: 16145
GASKET,OIL PUMP COVER (NAS)
16145004
€ 2.50
16154
16154003
ref: 16154
ROTOR-PUMP
16154003
€ 47.50
92001
92001165
ref: 92001
BOLT,HEX HEAD,6X45
92001165
€ 3.00
92022
920221012
ref: 92022
WASHER,20.5X30X1
920221012
€ 3.00
92022A
92022311
ref: 92022A
WASHER,PLAIN
92022311
€ 2.50
92042
92042041
ref: 92042
PIN,DOWEL
92042041
€ 4.50
92042A
92042050
ref: 92042A
PIN, DOWEL, 6.2X8X28
92042050
€ 2.50
92043
92043111
ref: 92043
SPRING PIN
92043111
€ 4.00
92043A
920431302
ref: 92043A
PIN,DOWEL,8X10
920431302
€ 1.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
920811018
€ 3.00
92081A
92081109
ref: 92081A
SPRING
92081109
€ 7.50
