MUFFLER(S)
Z550G7 GT550 1991 EUROPE UK SD SP

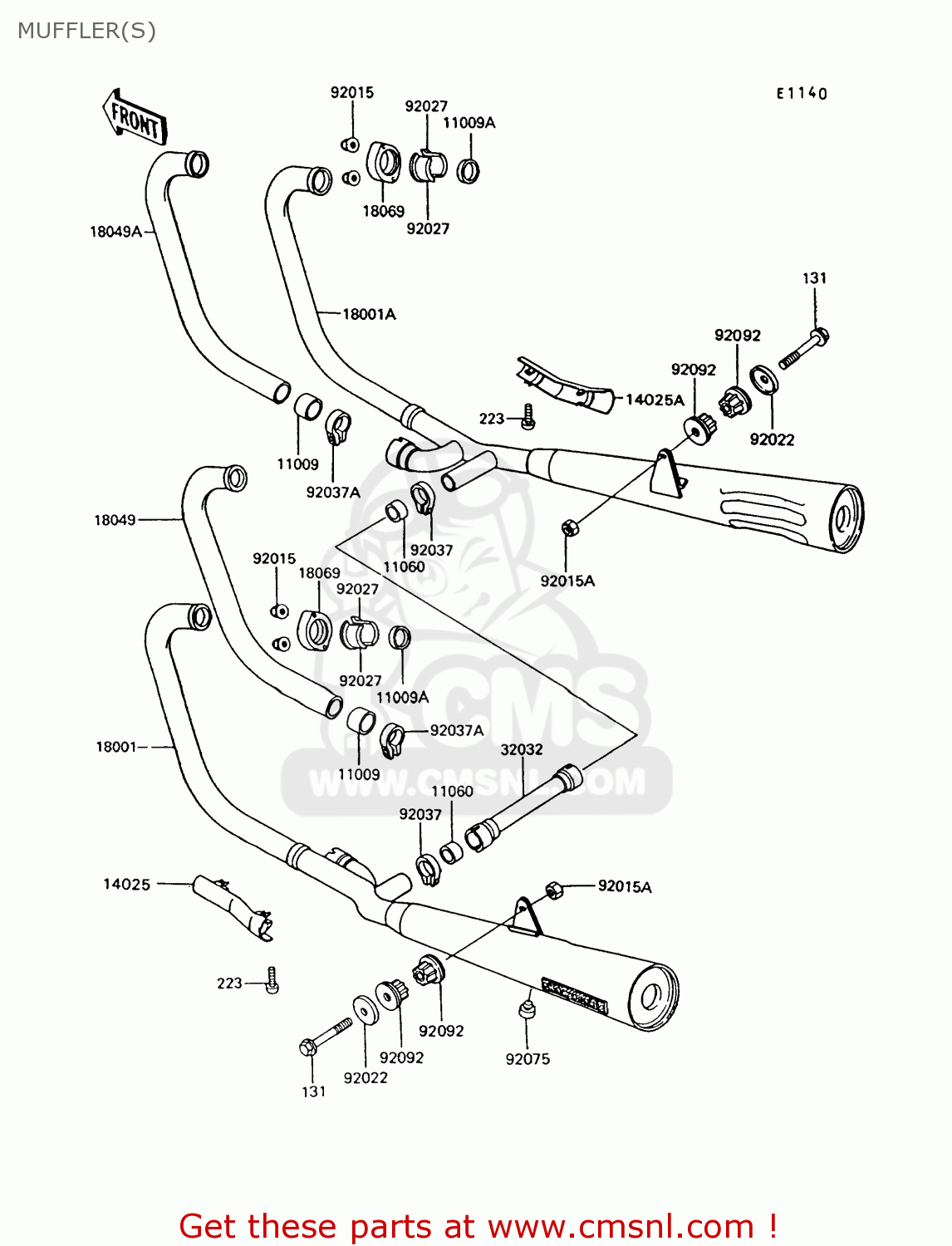

Muffler(s) diagram Z550G7 GT550 1991 EUROPE UK SD SP
MUFFLER(S) Z550G7 GT550 1991 EUROPE UK SD SP
×
prices are in EUR
ref
part #
description
quantity
131
131J1055
ref: 131
BOLT-FLANGED,10X55,BL
€ 4.00
223
223X0640
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
11009
110091667
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
11009A
110091866
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
€ 7.50
11060
110601051
ref: 11060
GASKET,MUFFLER CONNEC (NAS)
€ 15.00
14025
140251531
ref: 14025
COVER,MUFFLER,LH
€ 34.00
14025A
140251532
ref: 14025A
COVER,MUFFLER,RH
€ 34.00
18001
180011524
ref: 18001
MUFFLER,LH
€ 572.50
18001A
180011525
ref: 18001A
MUFFLER,RH
€ 521.00
18049
180491154
ref: 18049
PIPE-EXHAUST,#2
€ 120.50
18049A
180491155
ref: 18049A
PIPE-EXHAUST,#3
€ 120.50
18069
180691025
ref: 18069
HOLDER-EXHAUST PIPE
€ 15.00
32032
320321671
ref: 32032
PIPE,MUFFLER CONNECTI
€ 17.50
92015
920151385
ref: 92015
NUT,CAP,6MM
€ 2.50
92015A
920151387
ref: 92015A
NUT,FLANGED,10MM
€ 2.50
92022
920221355
ref: 92022
WASHER
€ 3.50
92027
92027264
ref: 92027
COLLAR, EXHAUST PIPE
€ 3.00
92037
920371227
ref: 92037
CLAMP,MUFFLER
€ 18.00
92037A
920371349
ref: 92037A
CLAMP,42MM
€ 8.50
92075
920751002
ref: 92075
DAMPER RUBBER,MAIN ST
€ 4.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
