CRANKCASE
Z550G7 GT550 1991 EUROPE UK SD SP

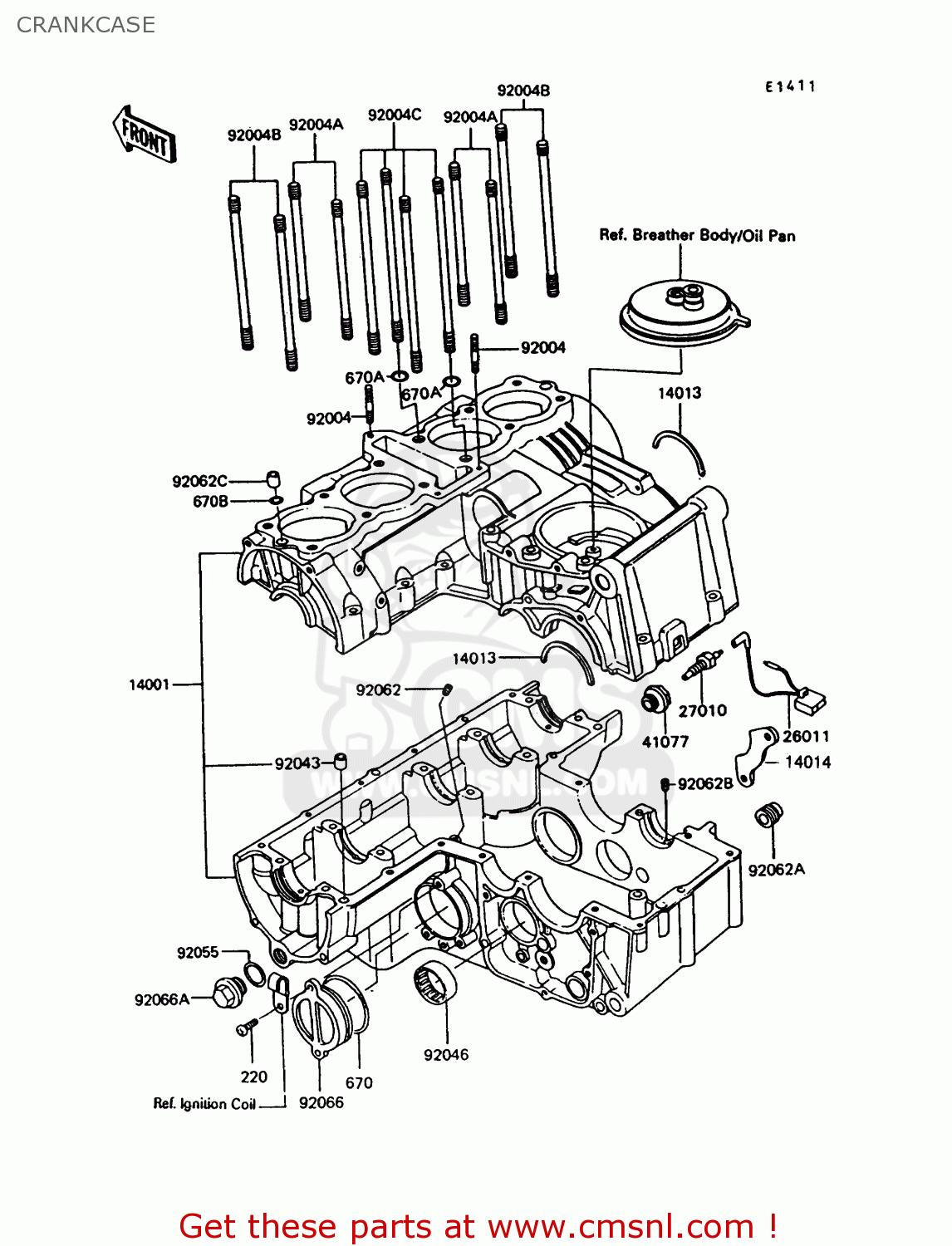

Crankcase diagram Z550G7 GT550 1991 EUROPE UK SD SP
CRANKCASE Z550G7 GT550 1991 EUROPE UK SD SP
×
prices are in EUR
ref
part #
description
quantity
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
670
670B3046
ref: 670
O RING,46MM
€ 3.50
670A
670D1508
ref: 670A
O RING,8MM
€ 2.50
670B
670D2010
ref: 670B
O RING,10MM
€ 1.00
14001
140015146
ref: 14001
SET-CRANCASE,F.BLACK
€ 1,999.00
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14014
140141006
ref: 14014
PLATE-POSITION
€ 7.50
92004
92004059
ref: 92004
STUD
€ 4.00
92004A
920041017
ref: 92004A
STUD,8X108.5
€ 8.00
92004B
920041018
ref: 92004B
STUD,8X128.5
€ 8.00
92004C
920041193
ref: 92004C
STUD,8X146
€ 7.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92046
92046051
ref: 92046
BEARING-NEEDLE,37BTM4
€ 23.00
92055
920551146
ref: 92055
RING-O
€ 5.50
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92062A
92062014
ref: 92062A
NOZZLE
€ 6.00
92062B
92062015
ref: 92062B
NOZZLE
€ 4.00
92062C
92062016
ref: 92062C
NOZZLE
€ 3.50
92066
920661019
ref: 92066
PLUG,SECONDARY SHAFT,
€ 12.50
92066A
920661096
ref: 92066A
PLUG,MAIN GALLARY,18X
€ 7.50
