FUEL TANK
Z550G7 GT550 1991 EUROPE UK SD SP

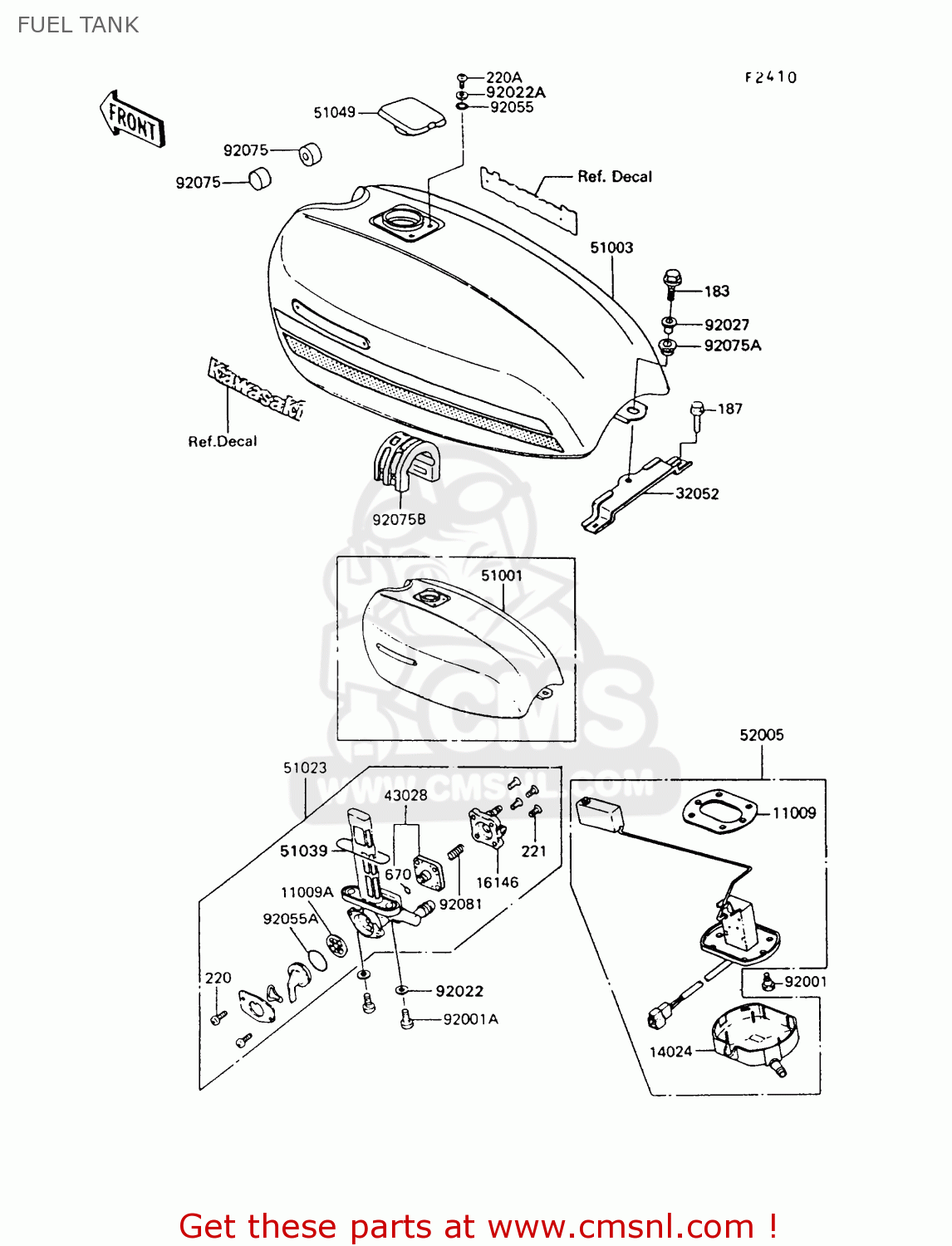

Fuel tank diagram Z550G7 GT550 1991 EUROPE UK SD SP
FUEL TANK Z550G7 GT550 1991 EUROPE UK SD SP
×
prices are in EUR
ref
part #
description
quantity
183
183B0830
ref: 183
BOLT-UPSET-WS-SMALL
€ 0.50
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
11009
110091037
ref: 11009
GASKET (NAS)
€ 14.00
11009A
110091188
ref: 11009A
GASKET,TAP VALVE (NAS)
€ 4.00
14024
140241434
ref: 14024
COVER,FUEL GAUGE
€ 22.50
16146
161461009
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 12.50
32052
320521083
ref: 32052
BRACKET-TANK,FUEL
€ 13.00
43028
430281033
ref: 43028
DIAPHRAGM
€ 15.00
51001
510011118GC
ref: 51001
SP
TANK-COMP-FUEL,P.WHIT
€ 529.00
51003
510035234A5
ref: 51003
EUSDUK
TANK-COMP-FUEL,C.P.RE
€ 890.50
51023
510231186
ref: 51023
TAP-ASSY,FUEL
€ 105.50
51039
51039003
ref: 51039
'O' RING
€ 4.00
51049
510491084
ref: 51049
CAP-TANK,FUEL
€ 156.50
52005
520051025
ref: 52005
GAUGE,FUEL
€ 102.00
92001
920011069
ref: 92001
BOLT,FUEL GAUGE FIT
€ 4.50
92001A
920011091
ref: 92001A
BOLT,6X20,FUEL TAP
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92022A
920221977
ref: 92022A
WASHER,5.1X10X1.0
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551085
ref: 92055A
'O' RING,FUEL TAP LEV
€ 3.00
92075
92075101
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751116
ref: 92075A
DAMPER,FUEL TANK
€ 4.00
92075B
920751151
ref: 92075B
DAMPER,FUEL TANK
€ 13.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
