HEADLIGHT(S)

VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA

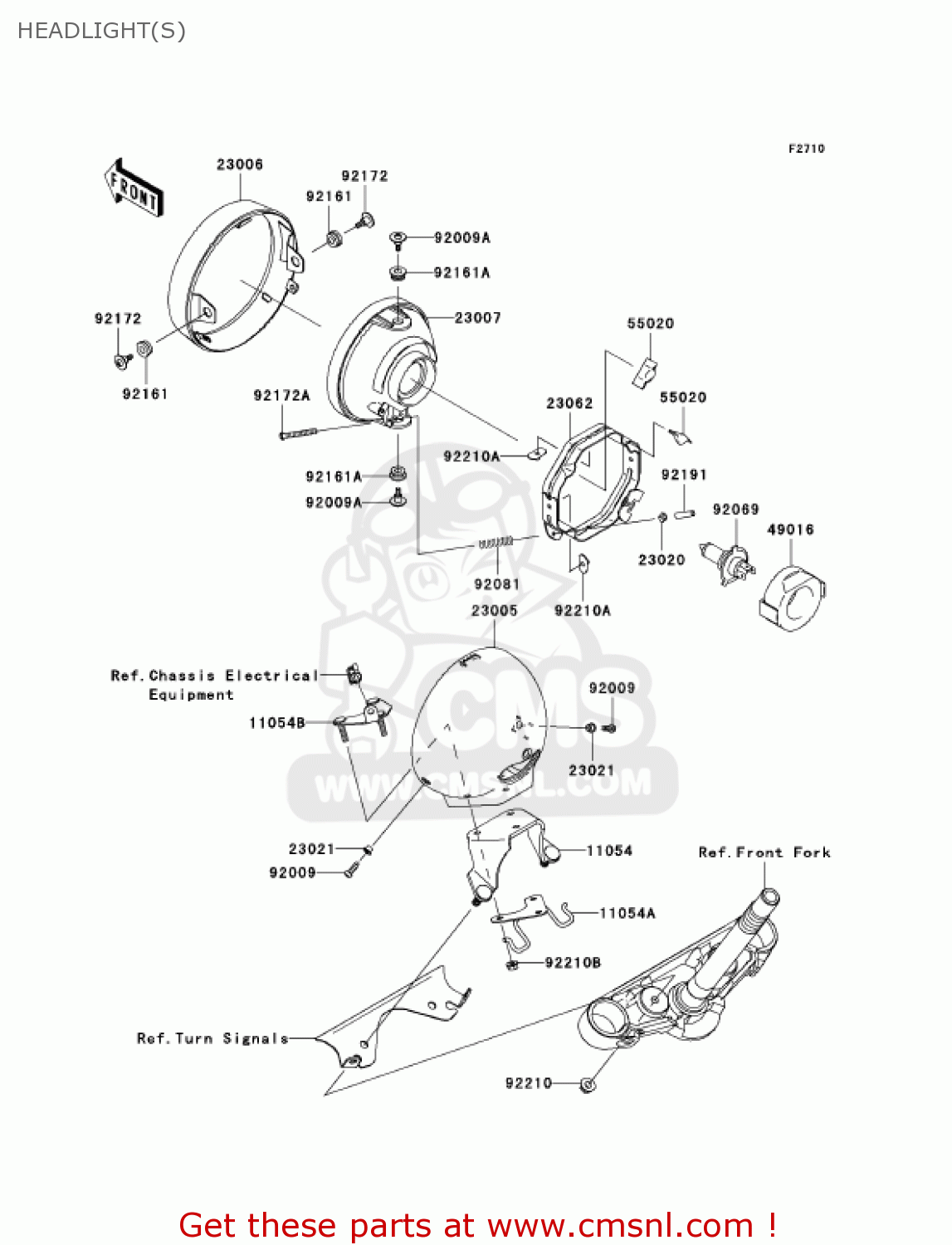

Headlight(s) diagram VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA

HEADLIGHT(S) VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA
HEADLIGHT(S) VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA
HEADLIGHT(S) VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11054
110540747
ref: 11054
BRACKET,HEAD LAMP
€ 50.50
11054A
110541173
ref: 11054A
BRACKET,SIGNAL LAMP H
€ 11.00
11054B
110541391
ref: 11054B
BRACKET,HEAD LAMP
€ 11.00
23005
230050021
ref: 23005
BODY-COMP-HEAD LAMP
230050021
€ 139.50
23006
230060013
ref: 23006
RIM-LAMP
230060013
€ 71.50
23007
230070081
ref: 23007
LENS-COMP, HEAD LAMP
€ 150.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
23062
230620048
ref: 23062
BRACKET-COMP,HEAD LAM
€ 41.50
49016
490161210
ref: 49016
COVER-SEAL
490161210
€ 12.50
55020
550200292
ref: 55020
GUARD,HEAD LAMP
€ 5.50
92009
920091947
ref: 92009
SCREW,5MM
920091947
€ 2.00
92009A
920091956
ref: 92009A
SCREW
€ 2.00
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
920811701
€ 3.00
92161
921611187
ref: 92161
DAMPER
€ 2.00
92161A
921611188
ref: 92161A
DAMPER
921611188
€ 2.00
92172
921720293
ref: 92172
SCREW
921720293
€ 1.50
92172A
921720294
ref: 92172A
SCREW
€ 2.50
92191
921911217
ref: 92191
TUBE
921911217
€ 1.50
92210
922100004
ref: 92210
NUT,FLANGED,8MM
922100004
€ 1.00
92210A
922100364
ref: 92210A
NUT
€ 2.00
92210B
922100368
ref: 92210B
NUT,FLANGED,6MM
922100368
€ 1.00
