FRONT FORK

VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA

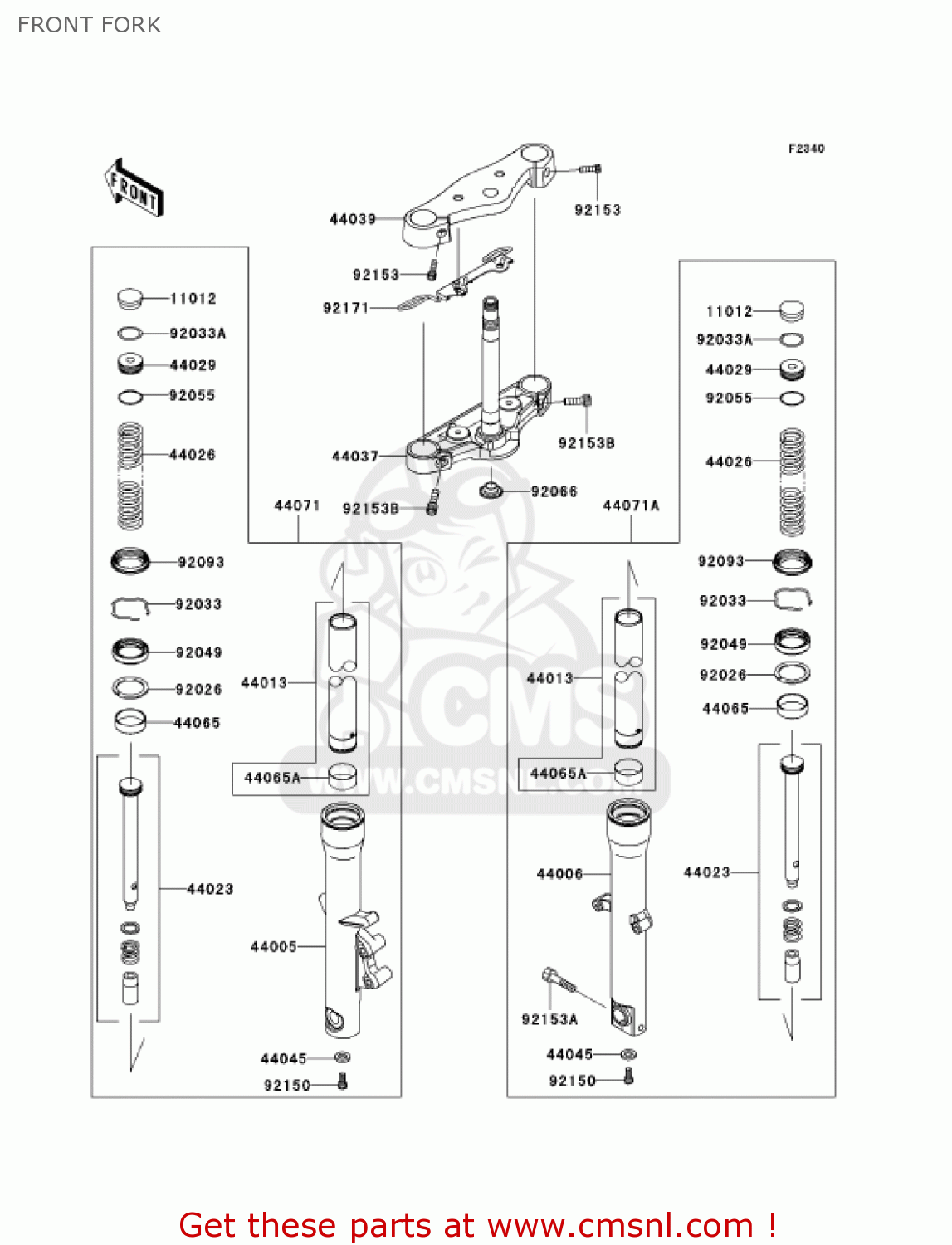

Front fork diagram VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA

FRONT FORK VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA
FRONT FORK VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA
FRONT FORK VN900C7F VULCAN 900 CUSTOM 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121618
ref: 11012
CAP,FORK TOP
110121618
€ 10.00
44005
440050049
ref: 44005
PIPE-LEFT FORK OUTER
440050049
€ 316.50
44006
440060048
ref: 44006
PIPE-RIGHT FORK OUTER
€ 332.00
44013
440130049
ref: 44013
PIPE-FORK INNER
€ 195.00
44023
440230042
ref: 44023
CYLINDER-SET-FORK
€ 70.00
44026
440260101
ref: 44026
SPRING-FRONT FORK
€ 59.50
44029
440290008
ref: 44029
SEAT-FORK SPRING
440290008
€ 23.50
44037
440370070
ref: 44037
HOLDER-FORK UNDER
440370070
€ 264.50
44039
440390062
ref: 44039
HOLDER-FORK UPPER
€ 284.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440650019
ref: 44065
BUSHING-FRONT FORK
440650019
€ 18.50
44065A
440651087
ref: 44065A
BUSHING-FRONT FORK,IN
440651087
€ 19.00
44071
440710459
ref: 44071
DAMPER-ASSY,FORK,LH
€ 598.00
44071A
440710460
ref: 44071A
DAMPER-ASSY,FORK,RH
€ 598.00
92026
920260090
ref: 92026
SPACER,FORK
€ 15.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92049
920490058
ref: 92049
SEAL-OIL
920490058
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
920551363
€ 4.50
92066
920660078
ref: 92066
PLUG
€ 9.00
92093
920930035
ref: 92093
SEAL,DUST
920930035
€ 19.00
92150
921501432
ref: 92150
BOLT
921501432
€ 6.50
92153
921530500
ref: 92153
BOLT,SOCKET
921530500
€ 8.00
92153A
921530533
ref: 92153A
BOLT
€ 8.00
92153B
921531376
ref: 92153B
BOLT,SOCKET,10X25
€ 3.00
92171
921710580
ref: 92171
CLAMP
921710580
€ 38.00
