TAILLIGHT(S)

VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

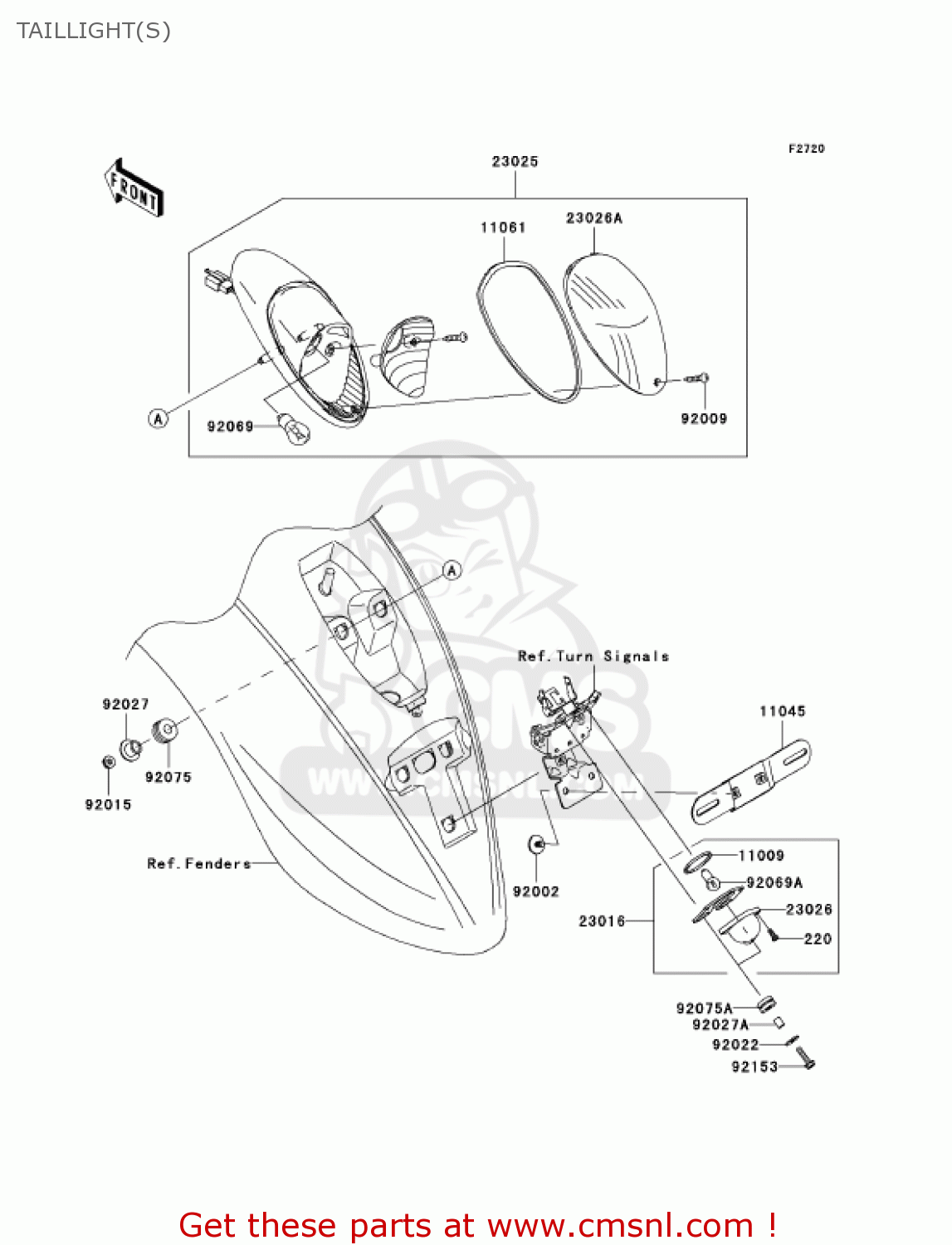

Taillight(s) diagram VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

TAILLIGHT(S) VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
TAILLIGHT(S) VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
TAILLIGHT(S) VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220B0410
ref: 220
SCREW-PAN-CROS
220B0410
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
110091372
€ 3.00
11045
110451387
ref: 11045
BRACKET,LICENSE
110451387
€ 11.00
11061
110611089
ref: 11061
GASKET,TAIL LAMP LENS (NAS)
110611089
€ 5.50
23016
230160007
ref: 23016
LAMP-ASSY,LICENSE
230160007
€ 68.50
23025
230250025
ref: 23025
LAMP-TAIL
€ 92.00
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 7.00
23026A
230261246
ref: 23026A
LENS,TAIL LAMP
€ 48.00
92002
920021884
ref: 92002
BOLT,6X12
920021884
€ 2.50
92009
920091966
ref: 92009
SCREW,TAPPING,4X16
920091966
€ 1.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
920691055
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92075A
92075209
ref: 92075A
DAMPER RUBBER
92075209
€ 3.00
92153
921530514
ref: 92153
BOLT,FLANGED,6X25
921530514
€ 1.50
