STARTER MOTOR

VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

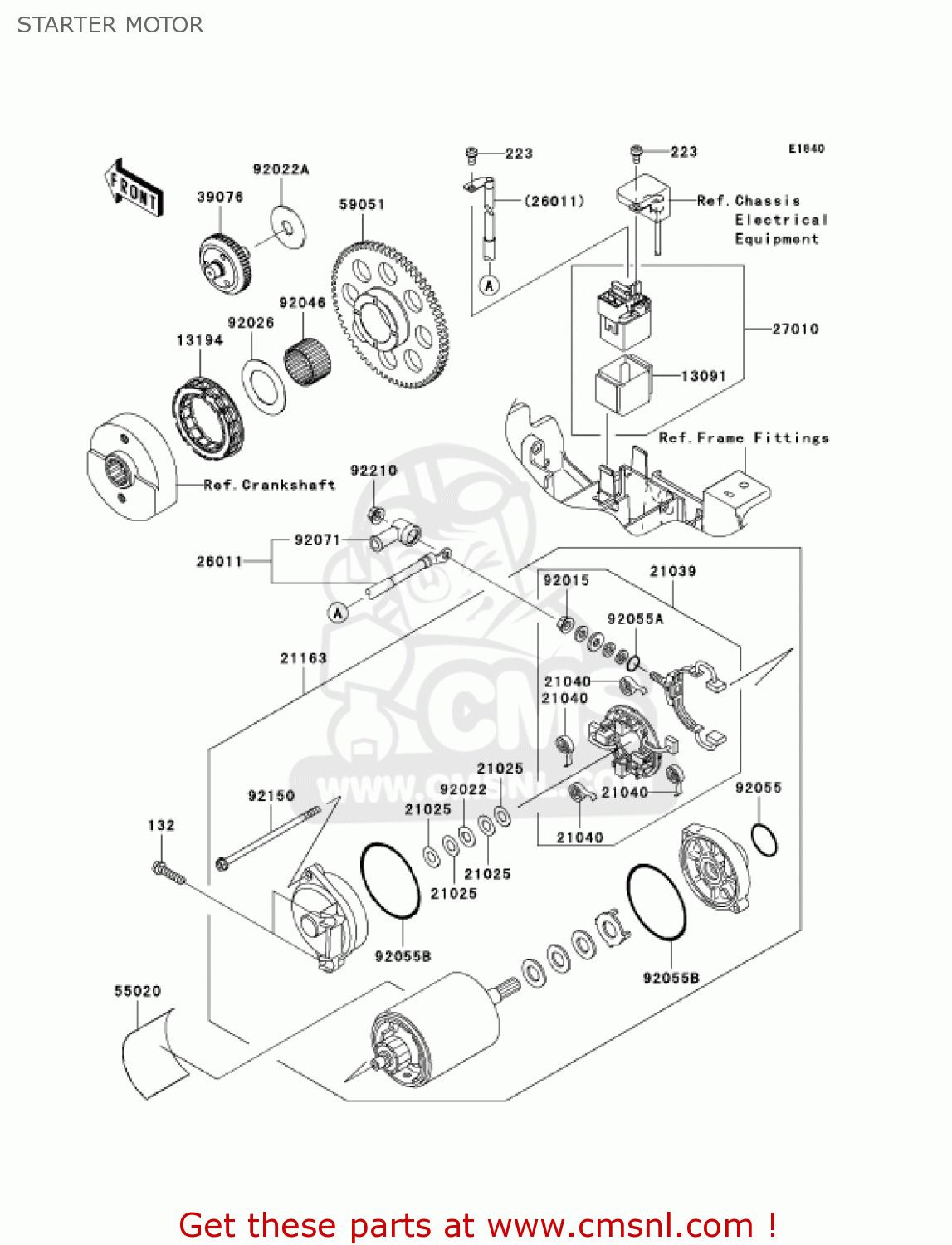

Starter motor diagram VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

STARTER MOTOR VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
STARTER MOTOR VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
STARTER MOTOR VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132L0625
ref: 132
BOLT-FLANGED-SMALL,6X
132L0625
€ 2.00
223
223D0510
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
13091
130911884
ref: 13091
HOLDER,MAGNETIC SWITC
130911884
€ 8.00
13194
131940009
ref: 13194
CLUTCH-ONEWAY
131940009
€ 141.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21163
211631263
ref: 21163
STARTER-ELECTRIC
211631263
€ 574.50
26011
260110126
ref: 26011
WIRE-LEAD,STARTER MOT
260110126
€ 48.50
27010
270101327
ref: 27010
SWITCH,MAGNETIC
270101327
€ 116.00
39076
390760008
ref: 39076
LIMITER
390760008
€ 115.50
55020
550201589
ref: 55020
GUARD,STARTER MOTER
€ 4.50
59051
590510060
ref: 59051
GEAR-SPUR,63T
€ 109.50
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92022A
920221664
ref: 92022A
WASHER,12.3X38X2.0
920221664
€ 4.50
92026
920261490
ref: 92026
SPACER
€ 7.00
92046
920461171
ref: 92046
BEARING-NEEDLE,K30X35
920461171
€ 23.50
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92071
920710024
ref: 92071
GROMMET
920710024
€ 7.50
92150
921501913
ref: 92150
BOLT,STARTER MOTOR
921501913
€ 6.50
92210
922100188
ref: 92210
NUT,6MM
€ 1.50
