CHASSIS ELECTRICAL EQUIPMENT

VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

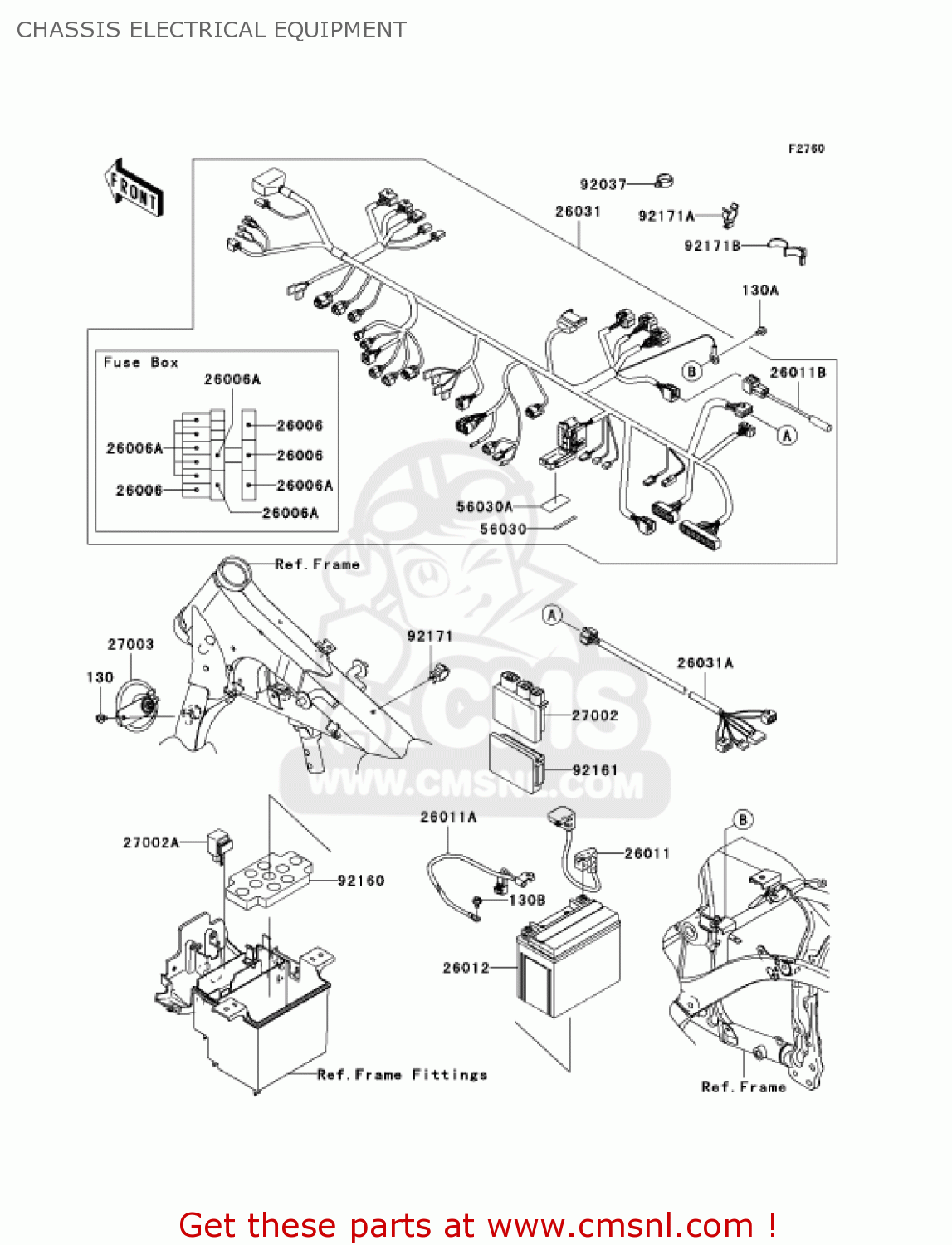

Chassis electrical equipment diagram VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130L0610
ref: 130A
BOLT-FLANGED
€ 1.50
130B
130V0610
ref: 130B
BOLT-FLANGED,6X10
130V0610
€ 0.50
26006
260060001
ref: 26006
FUSE,15A
€ 4.00
26006A
260061078
ref: 26006A
FUSE,10A
260061078
€ 3.50
26011
260110089
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 36.50
26011A
260110090
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 24.50
26011B
260111774
ref: 26011B
WIRE-LEAD,DIAGNOSIS
260111774
€ 12.50
26012
260121330
ref: 26012
BATTERY,YTX12BS,12V10
€ 120.50
26031
260310388
ref: 26031
HARNESS,MAIN
€ 360.00
26031A
260310448
ref: 26031A
HARNESS,RR
€ 51.50
27002
270020007
ref: 27002
RELAY-ASSY
270020007
€ 112.50
27002A
270021101
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270030039
ref: 27003
HORN
€ 49.00
56030
560300016
ref: 56030
LABEL,FUSE BOX
€ 4.00
56030A
560300046
ref: 56030A
LABEL,FUSE BOX
€ 4.00
92037
920371827
ref: 92037
CLAMP,HOSE
920371827
€ 5.00
92160
921601635
ref: 92160
DAMPER,BATTERY
€ 21.00
92161
921610203
ref: 92161
DAMPER,RELAY BOX
921610203
€ 7.50
92171
921710081
ref: 92171
CLAMP
921710081
€ 3.00
92171A
921710347
ref: 92171A
CLAMP
921710347
€ 4.00
92171B
921711423
ref: 92171B
CLAMP,DIA=10
921711423
€ 3.00
