GEAR CHANGE MECHANISM

VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

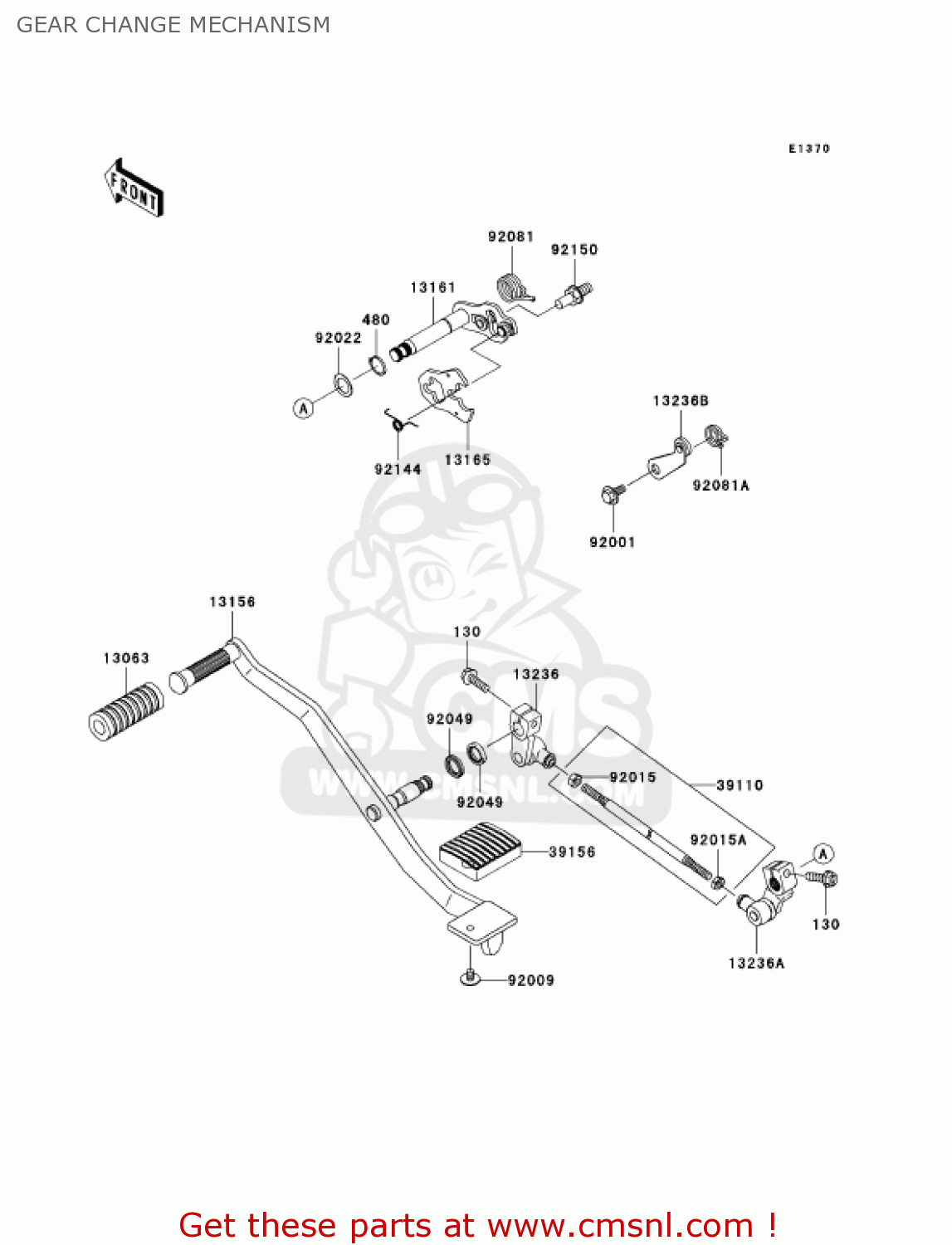

Gear change mechanism diagram VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN900B7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130W0620
ref: 130
BOLT-FLANGED
€ 2.00
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13063
13063002
ref: 13063
RUBBER-KICK PEDAL
13063002
€ 3.00
13156
131560063
ref: 13156
LEVER-CHANGE
131560063
€ 137.00
13161
131610046
ref: 13161
LEVER-COMP-CHANGE SHA
131610046
€ 64.50
13165
131651151
ref: 13165
PAWL,CHANGE LEVER
131651151
€ 9.50
13236
132360100
ref: 13236
LEVER-COMP
132360100
€ 38.50
13236A
132360119
ref: 13236A
LEVER-COMP
132360119
€ 41.50
13236B
132361126
ref: 13236B
LEVER-COMP,POSITION
132361126
€ 9.00
39110
391101124
ref: 39110
ROD-ASSY-TIE
391101124
€ 13.50
39156
391561641
ref: 39156
PAD
391561641
€ 9.50
92001
920011715
ref: 92001
BOLT
920011715
€ 7.00
92009
920091677
ref: 92009
SCREW,6X8,BLACK
920091677
€ 2.50
92015
920151443
ref: 92015
NUT
920151443
€ 2.50
92015A
920151444
ref: 92015A
NUT
920151444
€ 3.00
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
920221224
€ 2.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92081
920811750
ref: 92081
SPRING,CHANGE PEDAL R
920811750
€ 7.50
92081A
920811777
ref: 92081A
SPRING,RETURN
920811777
€ 6.00
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
