TAILLIGHT(S)
VN800C1 VULCAN 800 DRIFTER 1999 CANADA

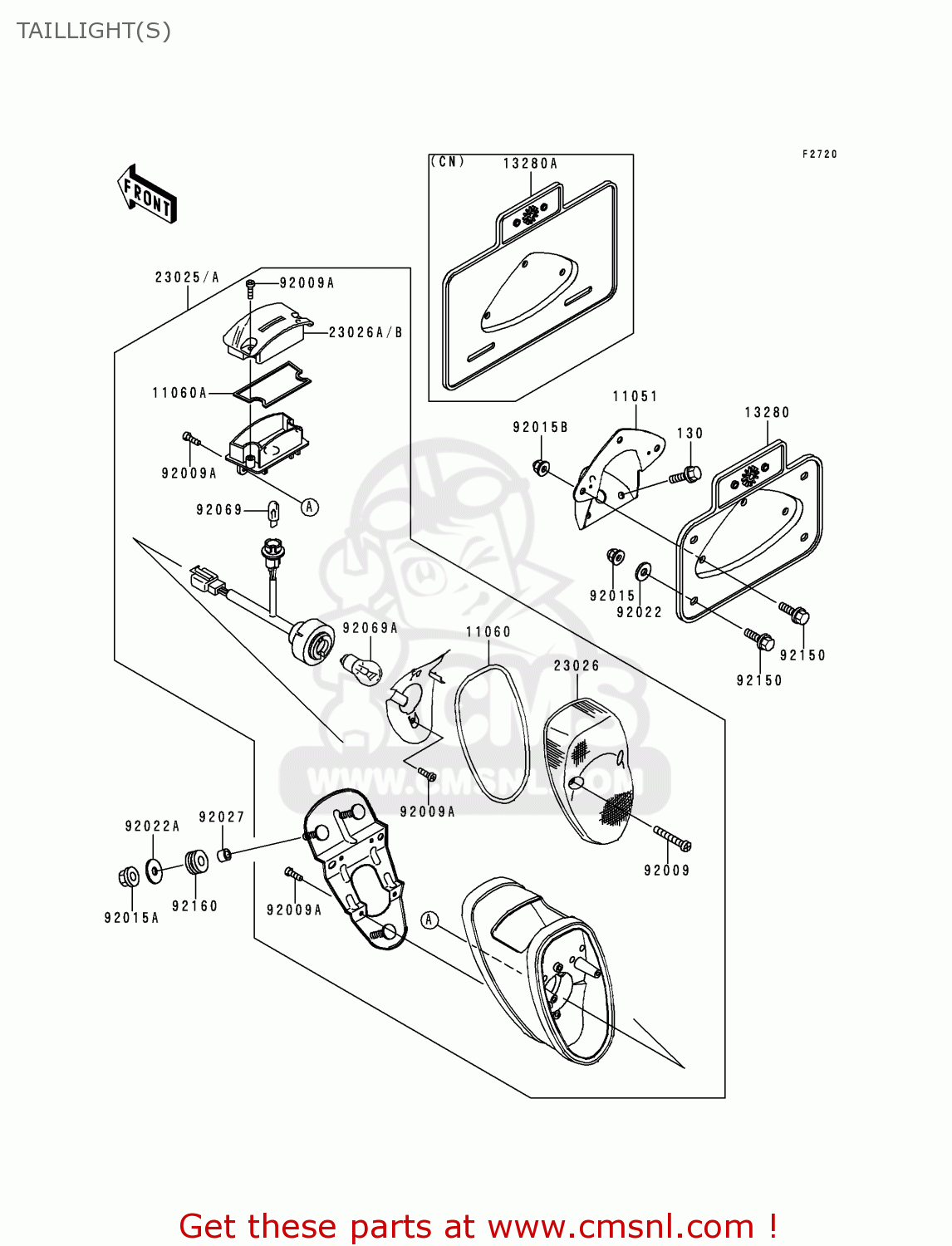

Taillight(s) diagram VN800C1 VULCAN 800 DRIFTER 1999 CANADA
TAILLIGHT(S) VN800C1 VULCAN 800 DRIFTER 1999 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
11051
110511086
ref: 11051
BRACKET,LICENSE HOLDE
€ 20.50
11060
110601884
ref: 11060
GASKET,TAIL LAMP (NAS)
€ 6.50
11060A
110601939
ref: 11060A
GASKET,LICENSE LENS (NAS)
€ 2.00
13280A
132801130
ref: 13280A
HOLDER,LICENSE PLATE
€ 12.50
23025
230251280
ref: 23025
TAIL LAMP
€ 237.00
23026
230261220
ref: 23026
LENS,TAIL
€ 47.50
23026A
230261221
ref: 23026A
LENS,LICENSE
€ 11.00
92009
920091378
ref: 92009
SCREW,TAPPING,4X20
€ 2.50
92009A
920091381
ref: 92009A
SCREW,TAPPING,4X12
€ 2.00
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92015B
920151385
ref: 92015B
NUT,CAP,6MM
€ 2.50
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
€ 0.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
920691016
ref: 92069
BULB,12V 5W
€ 4.00
92069A
920691084
ref: 92069A
BULB,12V 21/5W
€ 6.00
92150
921501133
ref: 92150
BOLT,6X14
€ 2.50
92160
921601162
ref: 92160
DAMPER
€ 3.00
