RADIATOR
VN800C1 VULCAN 800 DRIFTER 1999 CANADA

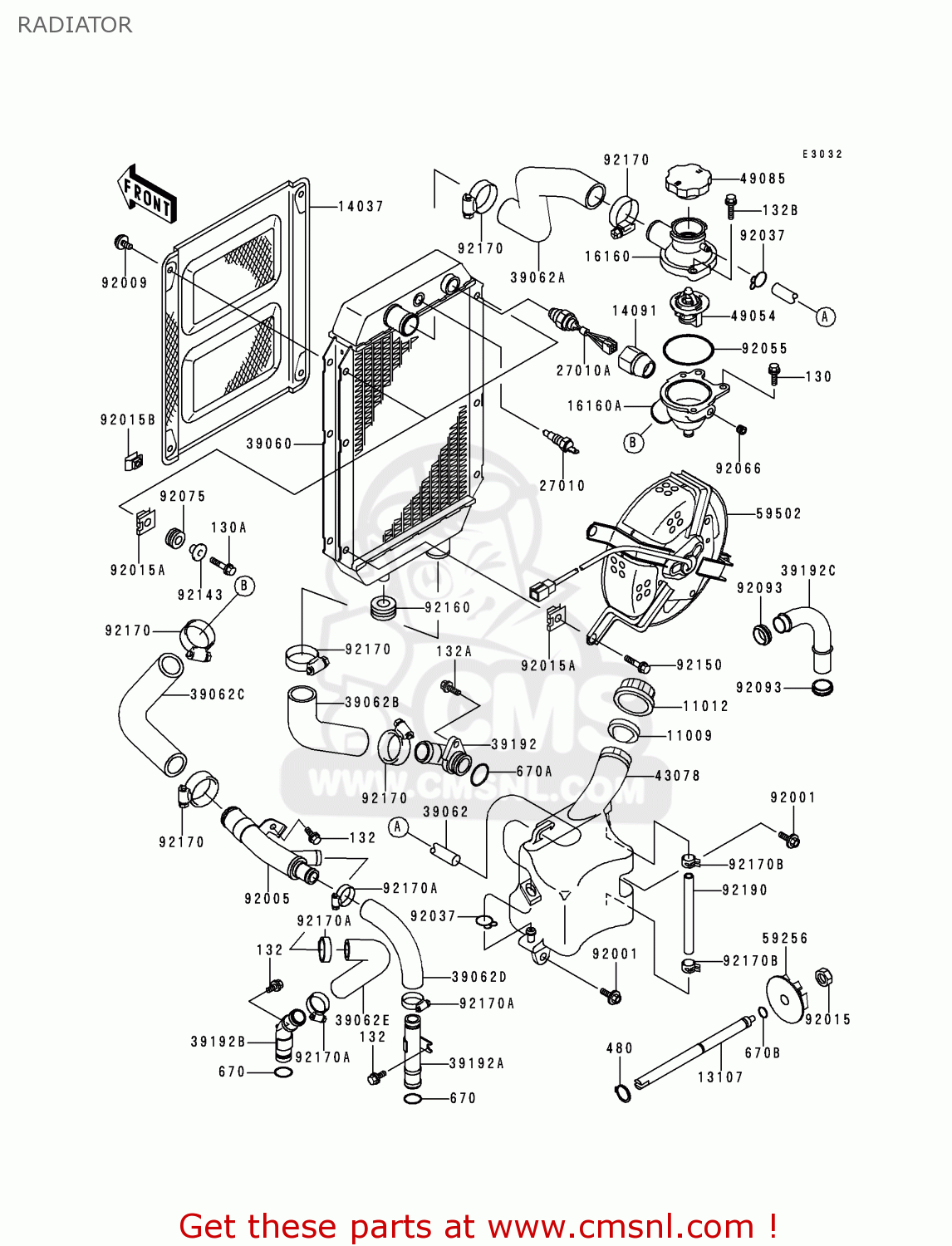

Radiator diagram VN800C1 VULCAN 800 DRIFTER 1999 CANADA
RADIATOR VN800C1 VULCAN 800 DRIFTER 1999 CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
13107
131071155
ref: 13107
SHAFT,IMPELLER
€ 35.00
14037
140371200
ref: 14037
SCREEN,RADIATOR
€ 58.50
14091
140911094
ref: 14091
COVER
€ 5.00
16160
161601152
ref: 16160
BODY,UPP
€ 57.00
16160A
161601242
ref: 16160A
BODY
€ 48.00
27010
270101305
ref: 27010
SWITCH
€ 60.00
27010A
270101403
ref: 27010A
SWITCH,THERMOSTAT
€ 61.50
39060
390601164
ref: 39060
RADIATOR
€ 512.50
39062
390621124
ref: 39062
HOSE-COOLING, RESERVO
€ 17.50
39062A
390621646
ref: 39062A
HOSE-COOLING,THERMO-R
€ 27.50
39062B
390621647
ref: 39062B
HOSE-COOLING,RADIATOR
€ 13.50
39062C
390621648
ref: 39062C
HOSE-COOLING,THERMO-F
€ 15.50
39062D
390621649
ref: 39062D
HOSE-COOLING,HEAD,RR-
€ 9.50
39062E
390621650
ref: 39062E
HOSE-COOLING,HEAD,FR-
€ 11.00
39192
391921078
ref: 39192
PIPE-WATER,INLET
€ 34.50
39192A
391921079
ref: 39192A
PIPE-WATER,HEAD,RR
€ 21.00
39192B
391921080
ref: 39192B
PIPE-WATER,HEAD,FR
€ 23.00
39192C
391921106
ref: 39192C
PIPE-WATER,OUTLET
€ 20.50
43078
430781149
ref: 43078
RESERVOIR
€ 45.50
49054
490541067
ref: 49054
THERMOSTAT
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
59256
592561058
ref: 59256
IMPELLER
€ 32.00
59502
595021132
ref: 59502
FAN-ASSY
€ 622.00
92001
920011950
ref: 92001
BOLT,6X16
€ 2.50
92005
920051281
ref: 92005
FITTING
€ 41.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
€ 2.00
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151487
ref: 92015A
NUT
€ 3.00
92015B
920151758
ref: 92015B
NUT
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92066
920661227
ref: 92066
PLUG,OIL LINE,1/8X7
€ 4.00
92075
920751901
ref: 92075
DAMPER
€ 2.00
92093
920931427
ref: 92093
SEAL
€ 3.00
92143
921431353
ref: 92143
COLLAR
€ 5.50
92150
921501186
ref: 92150
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701284
ref: 92170
CLAMP,CABLE
€ 7.50
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0618
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
132B
132J0620
ref: 132B
BOLT-FLANGED-SMALL
€ 2.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2021
ref: 670A
O RING,21MM
€ 3.00
670B
670D1509
ref: 670B
O RING,9MM
€ 3.00
92170A
921701285
ref: 92170A
CLAMP,COOLING HOSE
€ 13.00
92170B
921701493
ref: 92170B
CLAMP
€ 3.00
92190
921901603
ref: 92190
TUBE,7X10X106
€ 2.50
