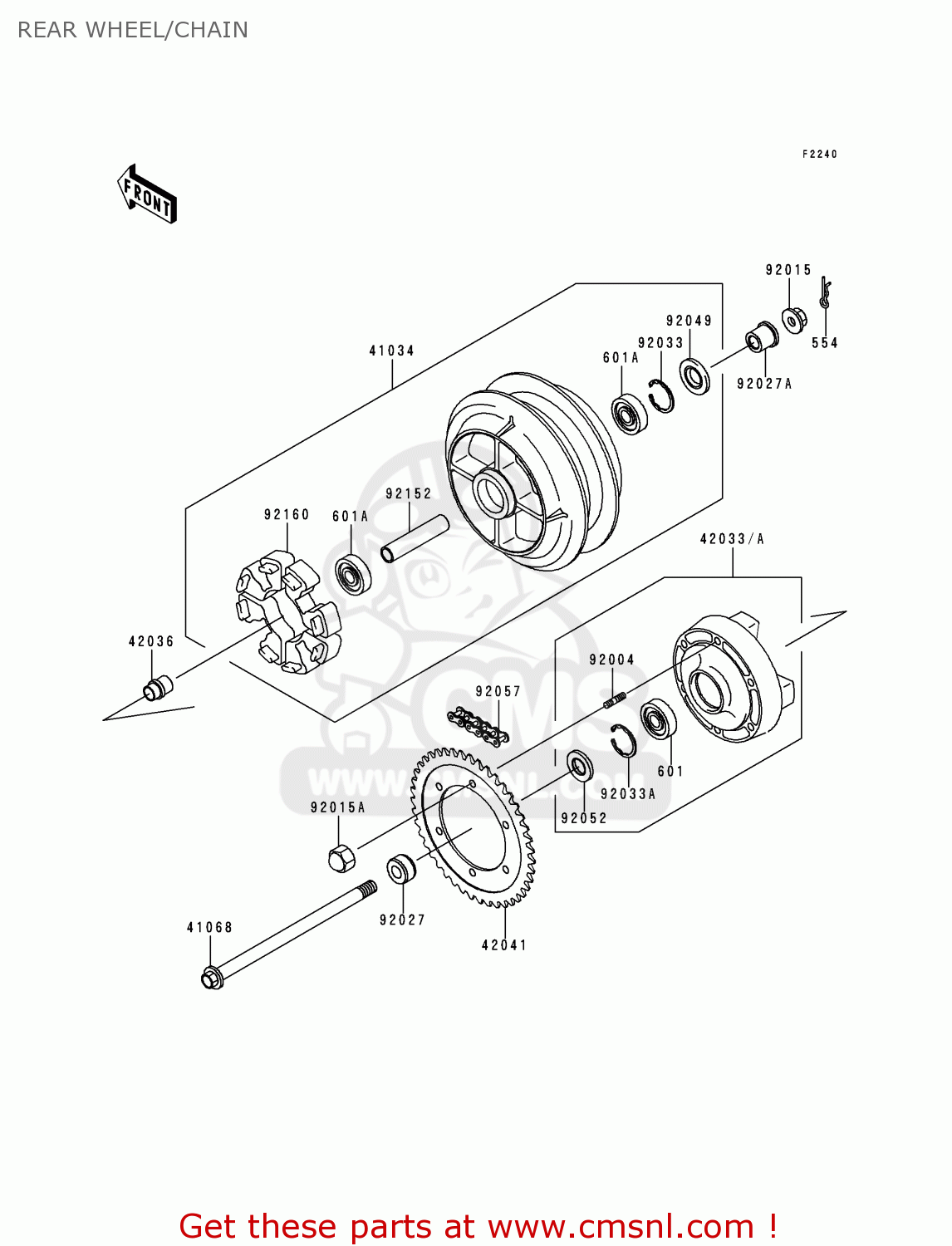

REAR WHEEL/CHAIN

ref

part #

description

quantity

554

554A1000
ref: 554

PIN-SNAP,10MM

€ 1.00

601

601B6205UG
ref: 601

BEARING-BALL,#6205UG

€ 27.00

601A

601B6303UU
ref: 601A

BEARING-BALL,6303LLUC

€ 30.50

41034

410341299
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 679.50

41068

410681365
ref: 41068

AXLE,RR

€ 59.50

42033

420331180
ref: 42033

COUPLING-ASSY,RR HUB

€ 194.50

42036

420361146
ref: 42036

SLEEVE,RR HUB,L=33

€ 34.00

42041

420411519
ref: 42041

SPROCKET-HUB,40T

€ 69.00

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

920151946
ref: 92015

NUT

€ 8.50

92015A

920151961
ref: 92015A

NUT,CAP,10MM

€ 6.50

92027

920271321
ref: 92027

COLLAR,REAR AXLE,LH,L

€ 17.00

92027A

920271875
ref: 92027A

COLLAR,RR AXLE,L=28

€ 16.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920571284
ref: 92057

CHAIN,112L

€ 215.00

92152

921521117
ref: 92152

COLLAR,RR HUB,L=101

€ 19.50

92160

921601697
ref: 92160

DAMPER,SHOCK,RR HUB

€ 16.00

all assemblies
