HANDLEBAR
VN800C1 VULCAN 800 DRIFTER 1999 CANADA

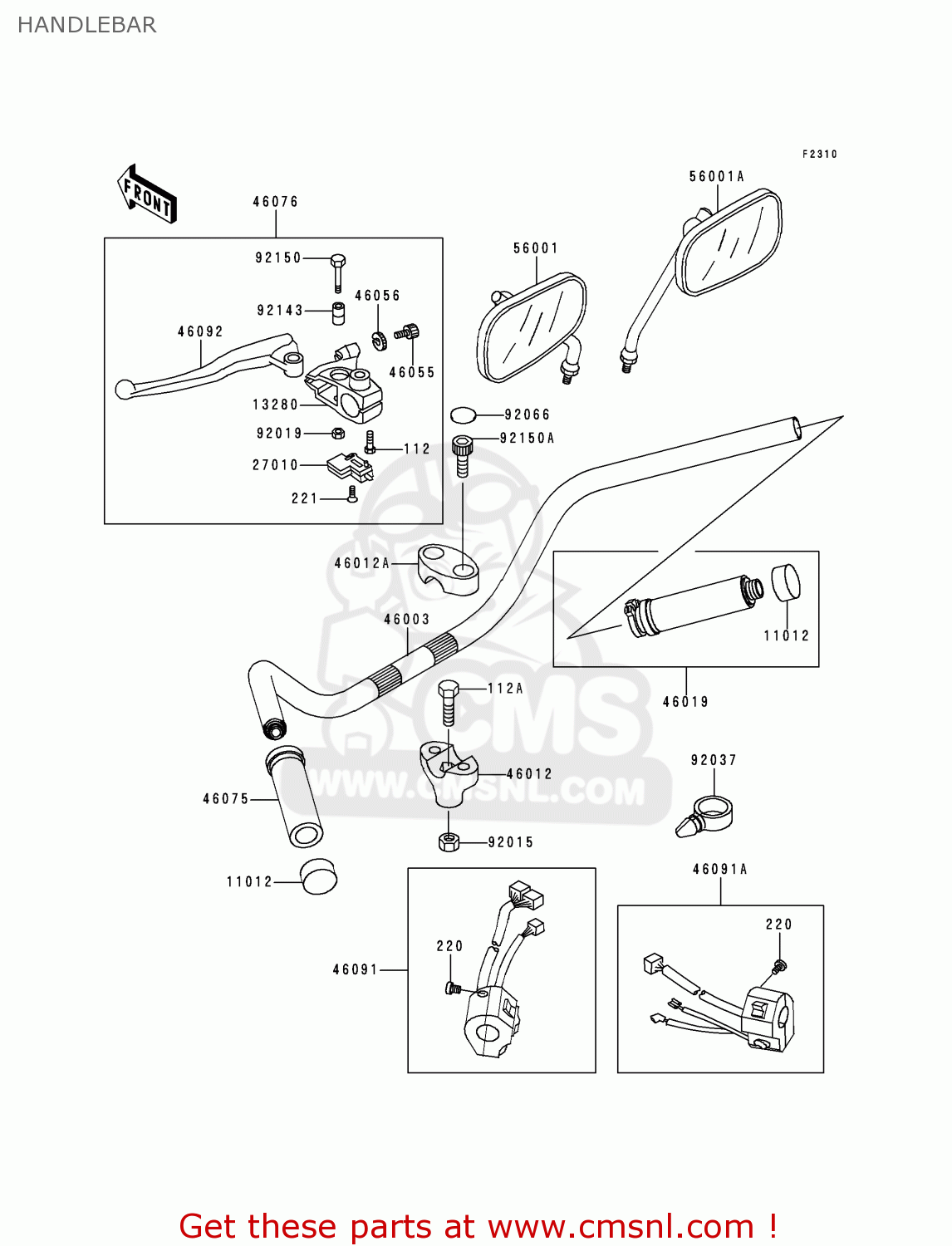

Handlebar diagram VN800C1 VULCAN 800 DRIFTER 1999 CANADA
HANDLEBAR VN800C1 VULCAN 800 DRIFTER 1999 CANADA
×
prices are in EUR
ref
part #
description
quantity
112
112G0620
ref: 112
BOLT 6X20
€ 1.00
112A
112H1065
ref: 112A
BOLT-UPSET,10X65
€ 5.00
220
220C0525
ref: 220
SCREW-PAN-CROS
€ 2.00
221
221B0320
ref: 221
SCREW-CSK-CROS,3X20
€ 3.50
11012
110121975
ref: 11012
CAP,GRIP END
€ 14.00
13280
132801101
ref: 13280
HOLDER,CLUTCH LEVER
€ 43.00
27010
270101268
ref: 27010
SWITCH,CLUTCH
€ 20.50
46003
460031512
ref: 46003
HANDLE
€ 110.50
46012
460121291
ref: 46012
HOLDER-HANDLE,LWR
€ 28.50
46012A
460121292
ref: 46012A
HOLDER-HANDLE,UPP
€ 48.00
46019
460191109
ref: 46019
GRIP-ASSY,THROTTLE
€ 51.50
46055
46055003
ref: 46055
SCREW-CABLE ADJUST
€ 11.50
46056
46056005
ref: 46056
NUT-LOCK
€ 6.00
46075
460751074
ref: 46075
GRIP,LH
€ 20.50
46076
460761220
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 88.00
46091
460911752
ref: 46091
HOUSING-ASSY-CONTROL,
€ 199.50
46091A
460911759
ref: 46091A
CONTROLLER HOUSING ASSEMBLY
€ 115.00
46092
460921204
ref: 46092
LEVER-GRIP,CLUCTH
€ 18.50
56001
560011451
ref: 56001
MIRROR-ASSY,LH
€ 81.50
56001A
560011452
ref: 56001A
MIRROR-ASSY,RH
€ 81.50
92015
920151717
ref: 92015
NUT,LOCK,FLANGED,10MM
€ 6.50
92019
92019008
ref: 92019
NUT-LOCK,6MM
€ 3.00
92037
920371827
ref: 92037
CLAMP,HOSE
€ 5.00
92066
920661285
ref: 92066
PLUG
€ 5.00
92143
921431351
ref: 92143
COLLAR
€ 12.50
92150
921501330
ref: 92150
BOLT,LEVER SET
€ 9.00
92150A
921501942
ref: 92150A
BOLT,SOCKET,10X23
€ 4.50
