REAR WHEEL/CHAIN

VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

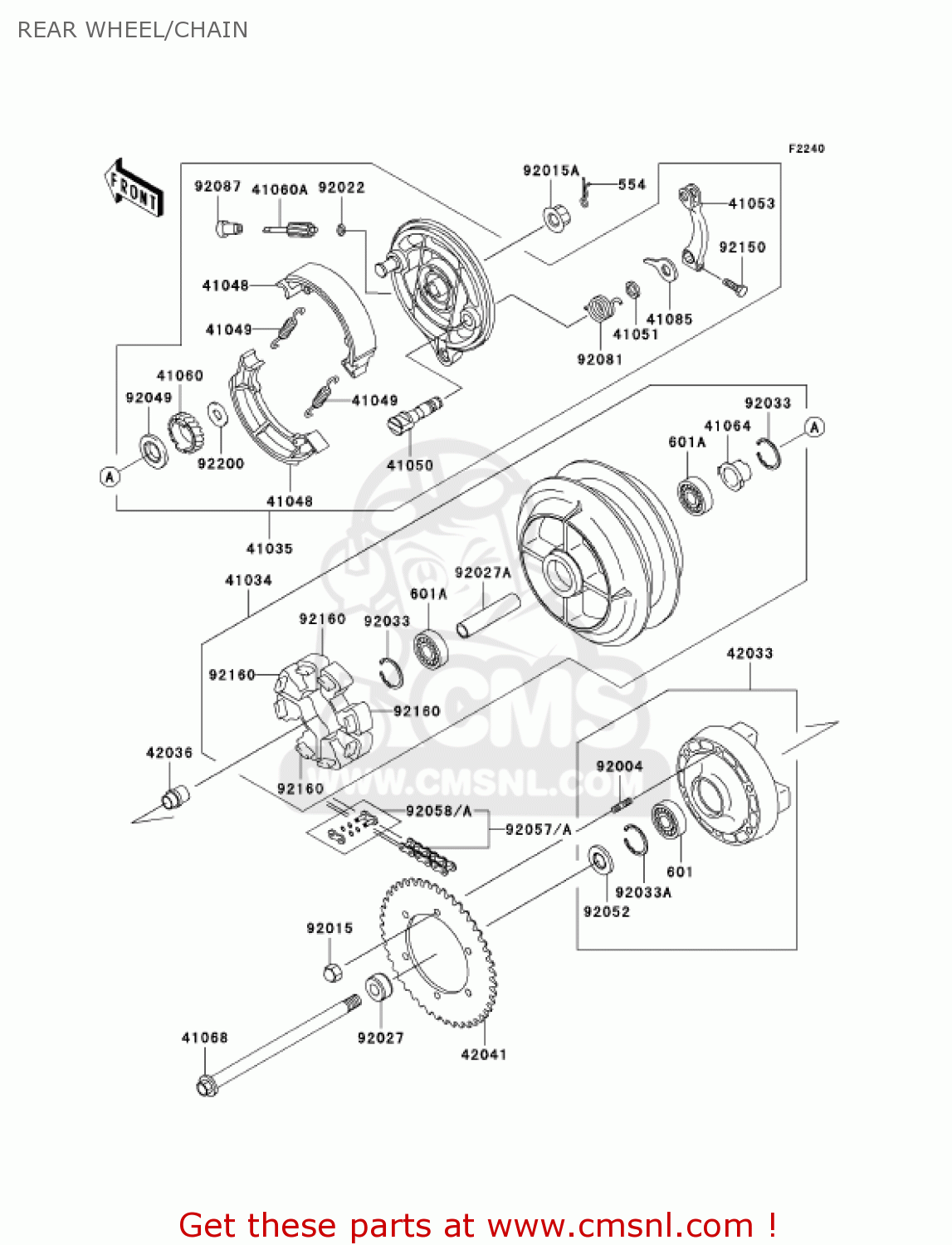

Rear wheel/chain diagram VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
554
554A1000
ref: 554
PIN-SNAP,10MM
554A1000
€ 1.00
601
601B6205UG
ref: 601
BEARING-BALL,#6205UG
601B6205UG
€ 27.00
601A
601B6303UU
ref: 601A
BEARING-BALL,6303LLUC
601B6303UU
€ 30.50
41034
410341248
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 393.00
41035
410351482
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 498.00
41048
410481070
ref: 41048
SHOE-BRAKE (NAS)
410481070
€ 26.00
41049
41049012
ref: 41049
SPRING, BRKE SHOE
41049012
€ 6.00
41050
410501013
ref: 41050
CAM-BRAKE
410501013
€ 35.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
41053
410531063
ref: 41053
LEVER-BRAKE CAM
410531063
€ 43.00
41060
410601154
ref: 41060
GEAR-METER SCREW,23T
410601154
€ 20.50
41060A
410601155
ref: 41060A
GEAR-METER SCREW,8T
410601155
€ 22.00
41064
410641057
ref: 41064
RECEIVER-SPEEDOMETER
410641057
€ 41.50
41068
410681365
ref: 41068
AXLE,RR
€ 59.50
41085
410851054
ref: 41085
INDICATOR
€ 9.00
42033
420331219
ref: 42033
COUPLING-ASSY,RR HUB
€ 194.50
42036
420361146
ref: 42036
SLEEVE,RR HUB,L=33
420361146
€ 34.00
42041
420411473
ref: 42041
SPROCKET-HUB,42T
420411473
€ 56.00
92004
920041275
ref: 92004
STUD
920041275
€ 6.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
920151335
€ 1.50
92015A
920151946
ref: 92015A
NUT
920151946
€ 8.50
92022
920221511
ref: 92022
WASHER,5X9.5X0.8
920221511
€ 2.50
92027
920271321
ref: 92027
COLLAR,REAR AXLE,LH,L
920271321
€ 17.00
92027A
920271555
ref: 92027A
COLLAR,17.2X25X96
920271555
€ 13.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
920491057
€ 7.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057A
920571554
ref: 92057A
CHAIN,DRIVE,EK50MV-OX
€ 215.00
92058
920581097
ref: 92058
JOINT-CHAIN,DRIVE
€ 9.50
92081
920811816
ref: 92081
SPRING,BRAKE CAM LEVE
920811816
€ 6.50
92087
920871060
ref: 92087
BUSHING-METER GEAR
920871060
€ 12.50
92150
921501797
ref: 92150
BOLT
921501797
€ 3.50
92160
921601697
ref: 92160
DAMPER,SHOCK,RR HUB
921601697
€ 16.00
92200
922001269
ref: 92200
WASHER,24X32X1.5
922001269
€ 4.00
