Genuine VN Kawasaki Parts delivered quickly!


CARBURETOR

VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

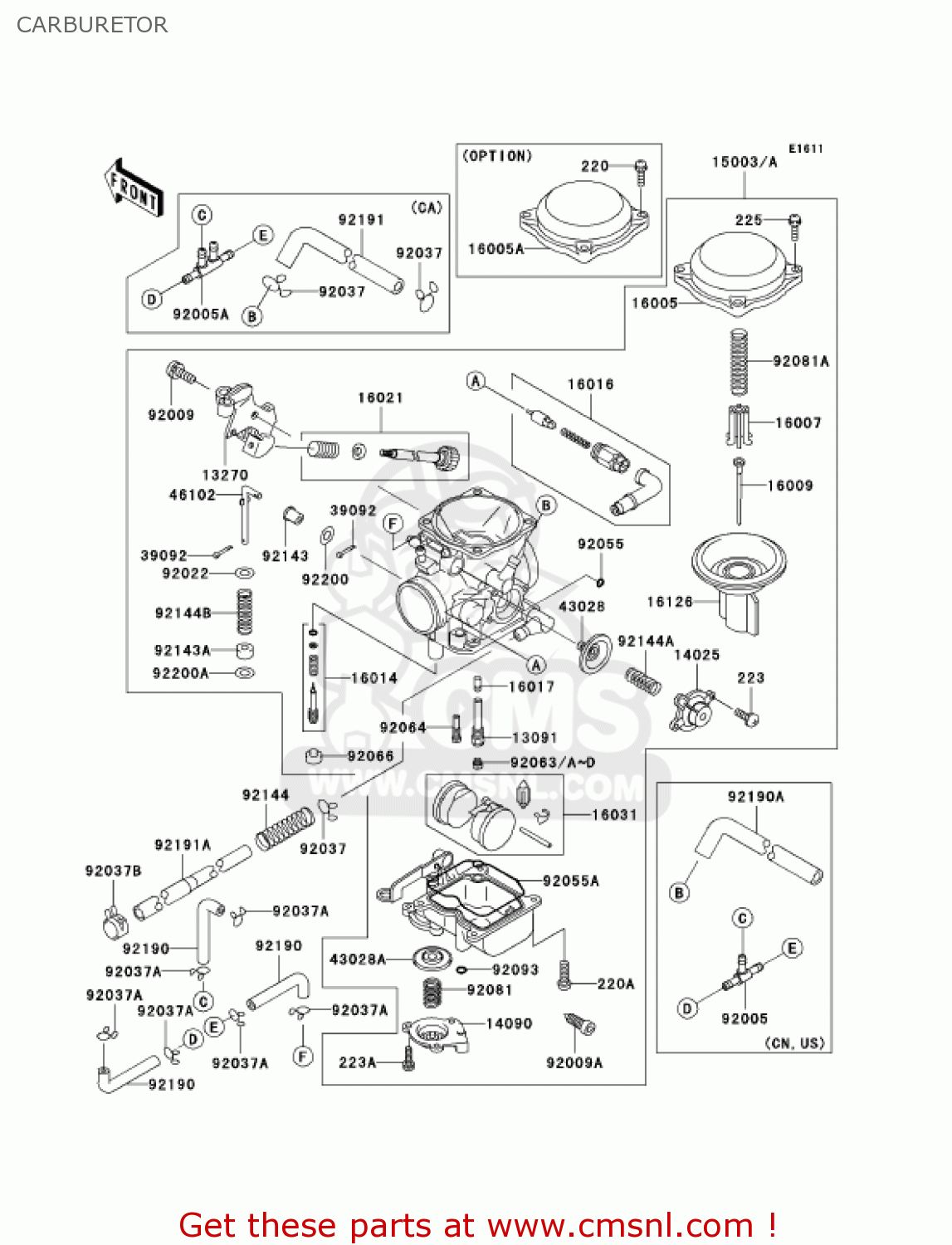

Carburetor diagram VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

CARBURETOR VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
CARBURETOR VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
CARBURETOR VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911930
ref: 13091
HOLDER
130911930
€ 20.50
13270
132701513
ref: 13270
PLATE
€ 31.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
140251903
€ 43.00
14090
140901635
ref: 14090
COVER,ACCELERATOR
€ 40.50
15003A
150031200
ref: 15003A
CARBURETOR-ASSY
€ 1,268.50
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
160051057
€ 30.50
16005A
160051065
ref: 16005A
(OPTION)
TOP-CHAMBER,MIXING
160051065
€ 47.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091861
ref: 16009
NEEDLE-JET
160091861
€ 26.00
16014
160141081
ref: 16014
SCREW-PILOT AIR
160141081
€ 15.50
16016
160161100
ref: 16016
PLUNGER,STARTER
160161100
€ 32.00
16017
160171377
ref: 16017
JET-NEEDLE
€ 41.00
16021
160211207
ref: 16021
SCREW-THROTTLE STOP
160211207
€ 83.00
16031
160311089
ref: 16031
FLOAT
160311089
€ 47.50
16126
161261170
ref: 16126
VALVE,VACUUM
161261170
€ 168.00
39092
390921058
ref: 39092
PIN-HAIR
390921058
€ 2.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
43028A
430281077
ref: 43028A
DIAPHRAGM
430281077
€ 62.50
46102
461021385
ref: 46102
ROD
€ 13.00
92005
920051017
ref: 92005
[CN,US
FITTING,TUBE
920051017
€ 6.50
92005A
920051307
ref: 92005A
[CA]
FITTING
€ 4.00
92009
920091365
ref: 92009
SCREW
920091365
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92022
920221480
ref: 92022
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371104
ref: 92037
[CN,US
CLAMP,HOSE
920371104
€ 1.00
92037
920371104
ref: 92037
[CA]
CLAMP,HOSE
920371104
€ 1.00
92037A
920371610
ref: 92037A
CLAMP
920371610
€ 1.50
92037B
920372082
ref: 92037B
CLAMP
920372082
€ 1.00
92055
920551245
ref: 92055
RING-O
920551245
€ 3.50
92055A
920551518
ref: 92055A
RING-O,FLOAT CHAMBER
920551518
€ 15.00
92063
920631013
ref: 92063
(OPTION)
MAIN JET,#140
920631013
€ 9.00
220
220B0408
ref: 220
(OPTION)
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
223
223C0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223D0410
ref: 223A
SCREW-PAN-WS-CROS
223D0410
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92063A
920631014
ref: 92063A
MAIN JET,#135
920631014
€ 9.50
92063B
920631015
ref: 92063B
(OPTION)
MAIN JET,#138
920631015
€ 9.50
92063C
920631075
ref: 92063C
(OPTION)
MAIN JET,2ND #130
920631075
€ 9.50
92063D
920631076
ref: 92063D
(OPTION)
JET-MAIN,#132
920631076
€ 9.50
92064
920641174
ref: 92064
JET-PILOT
920641174
€ 12.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811092
ref: 92081
SPRING,DIAPHRAGM
920811092
€ 8.00
92081A
920811826
ref: 92081A
SPRING,VACUUM VALVE
920811826
€ 16.50
92093
920931046
ref: 92093
SEAL-"U"RING
920931046
€ 4.00
92143
921431790
ref: 92143
COLLAR
921431790
€ 1.50
92143A
921431791
ref: 92143A
COLLAR
921431791
€ 5.50
92144
921441874
ref: 92144
SPRING
€ 4.50
92144A
921441885
ref: 92144A
SPRING
921441885
€ 7.50
92144B
921441886
ref: 92144B
SPRING
€ 6.00
92190
921901610
ref: 92190
TUBE,4X9X80
921901610
€ 3.00
92190A
921901619
ref: 92190A
[CN,US
TUBE,7X12X540,GREEN
921901619
€ 17.50
92191
921911008
ref: 92191
[CA]
TUBE,7X12X480,YELLOW
€ 12.00
92191A
921911041
ref: 92191A
TUBE
921911041
€ 10.50
92200
922001274
ref: 92200
WASHER
922001274
€ 1.50
92200A
922001275
ref: 92200A
WASHER
922001275
€ 1.50
