CYLINDER/PISTON(S)

VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

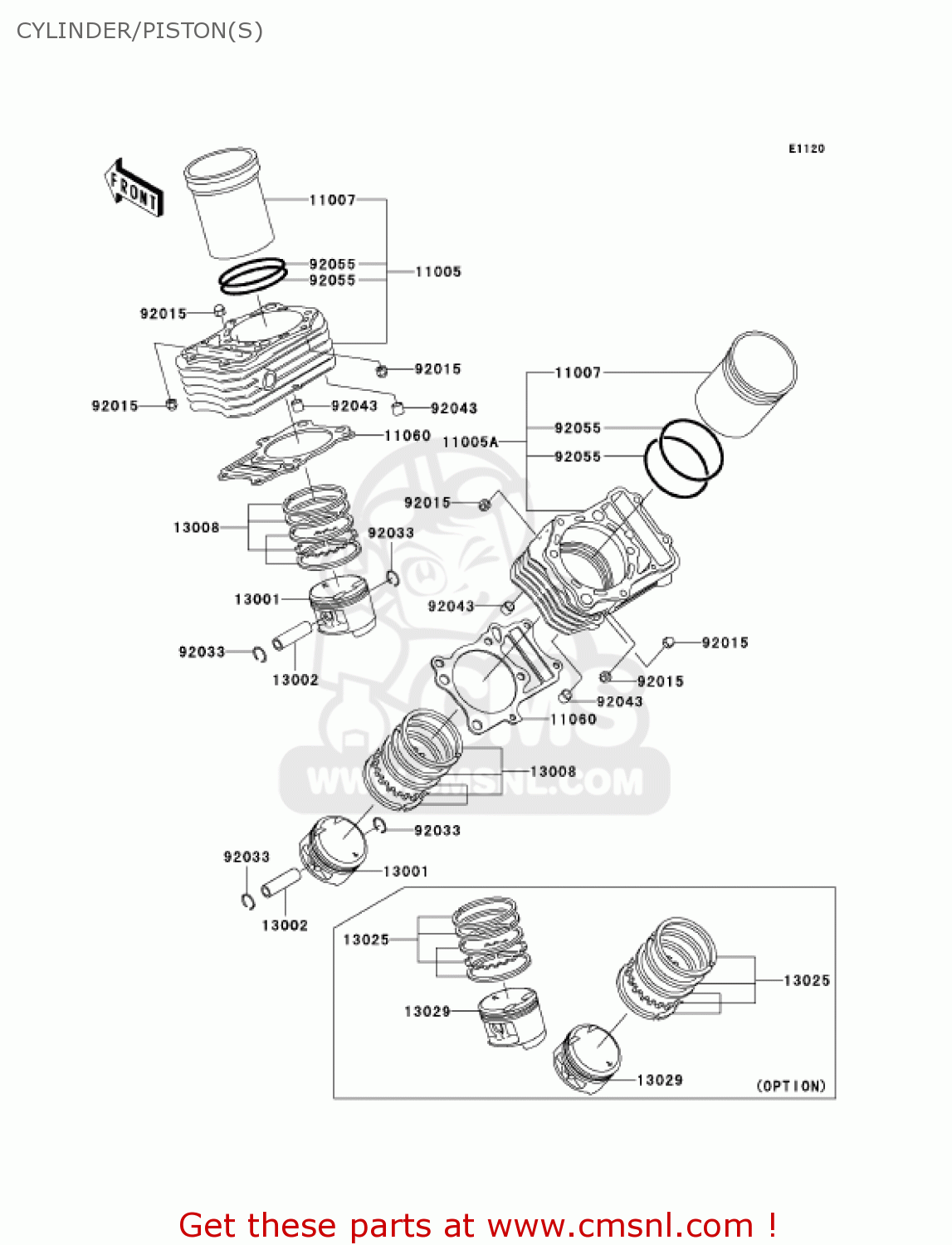

Cylinder/piston(s) diagram VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110051768
ref: 11005

CYLINDER-ENGINE,FR

€ 831.50

11005A

110051770
ref: 11005A

CYLINDER-ENGINE,RR

€ 873.50

11007

110071134
ref: 11007

LINER-CYLINDER

€ 133.50

11060

110601678
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 9.00

13001

130011434
ref: 13001

PISTON-ENGINE,STD

€ 93.00

13002

130021056
ref: 13002

PIN-PISTON

€ 20.50

13008

130081164
ref: 13008

RING-SET-PISTON,STD

€ 74.00

13025

130251127
ref: 13025
(OPTION)

RING-SET-PISTON L,O/S

€ 88.00

13029

130291228
ref: 13029
(OPTION)

PISTON-ENGINE L,O/S,0

€ 122.00

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92033

920331188
ref: 92033

RING-SNAP

€ 2.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92055

920551535
ref: 92055

RING-O,95.3X2.5

€ 3.50

CYLINDER/PISTON(S)

all assemblies
