Genuine VN Kawasaki Parts delivered quickly!


CRANKCASE

VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

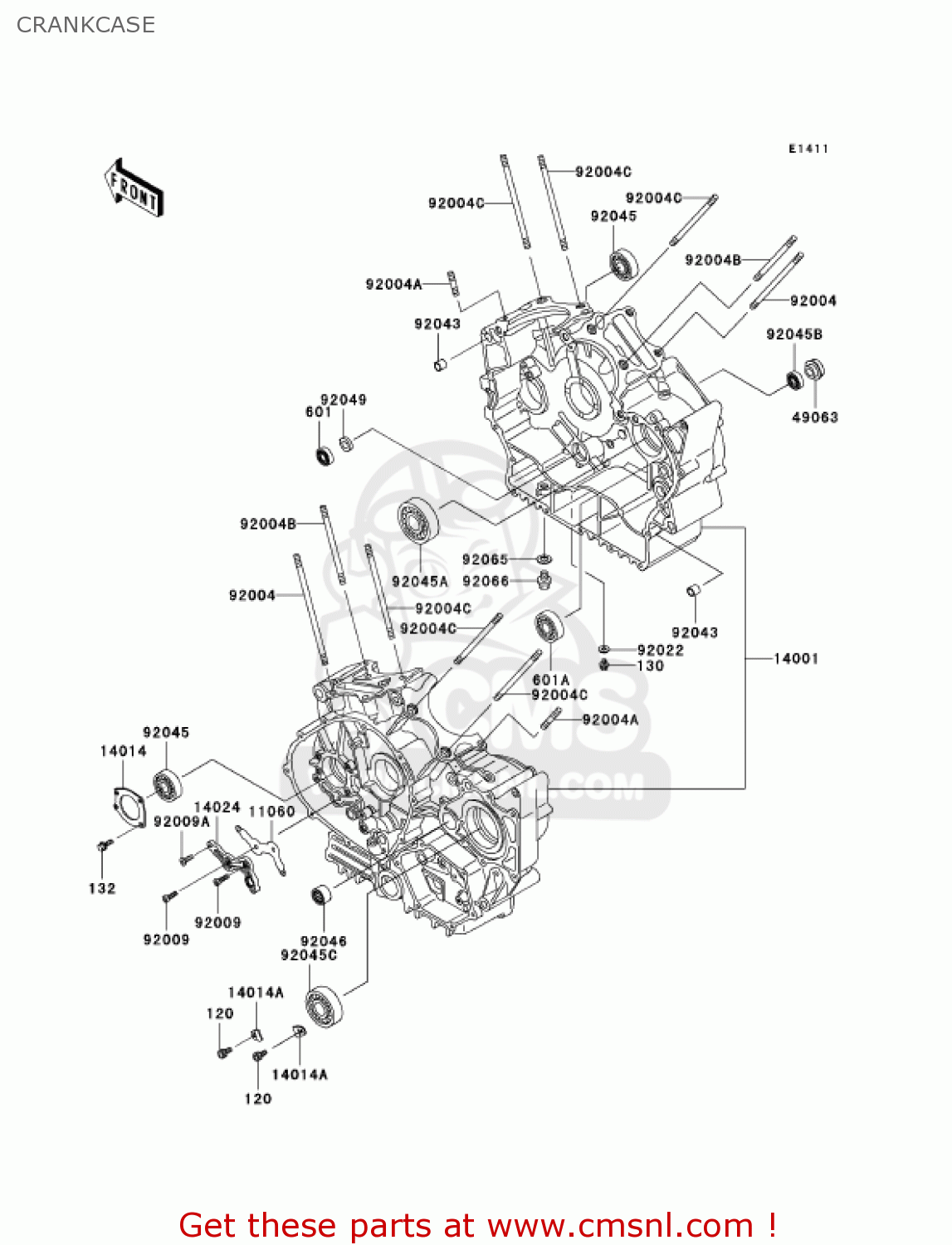

Crankcase diagram VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA

CRANKCASE VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
CRANKCASE VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
CRANKCASE VN800B6 VULCAN 800 CLASSIC 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0612
ref: 120
BOLT-SOCKET
120S0612
€ 1.50
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
601
601A6001
ref: 601
BEARING-BALL
601A6001
€ 9.00
601A
601A6204Z
ref: 601A
BEARING-BALL
601A6204Z
€ 28.00
11060
110601087
ref: 11060
GASKET,OIL LINE COVER (NAS)
110601087
€ 4.50
14001
140015342
ref: 14001
SET-CRANKCASE
€ 1,621.50
14014
140141068
ref: 14014
PLATE-POSITION
140141068
€ 10.50
14014A
140141121
ref: 14014A
PLATE-POSITION
€ 2.50
14024
140241074
ref: 14024
COVER,OIL LINE
€ 19.00
49063
490631057
ref: 49063
SEAL-MECHANICAL
490631057
€ 32.50
92004
920041035
ref: 92004
STUD,8M/M
€ 6.00
92004A
920041142
ref: 92004A
STUD,8X28.5
920041142
€ 6.00
92004B
920041220
ref: 92004B
STUD,10X148
920041220
€ 9.00
92004C
920041221
ref: 92004C
STUD,10X160
€ 9.00
92009
920091266
ref: 92009
SCREW
920091266
€ 2.50
92009A
920091447
ref: 92009A
SCREW,6X20
920091447
€ 3.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92043
920431266
ref: 92043
PIN,11X14X12.3
920431266
€ 1.00
92045
920451041
ref: 92045
BEARING-BALL,TMB204 J
920451041
€ 32.50
92045A
920451137
ref: 92045A
BEARING-BALL,TMB305
€ 43.50
92045B
920451151
ref: 92045B
BEARING-BALL,6001JRXL
920451151
€ 26.00
92045C
920451167
ref: 92045C
BEARING-BALL,TMB305X3
920451167
€ 43.50
92046
920461239
ref: 92046
BEARING-NEEDLE
920461239
€ 20.00
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
920491228
€ 7.00
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
920661174
€ 4.00
