GEAR CHANGE MECHANISM
VN800A3A 1997 NETHERLANDS

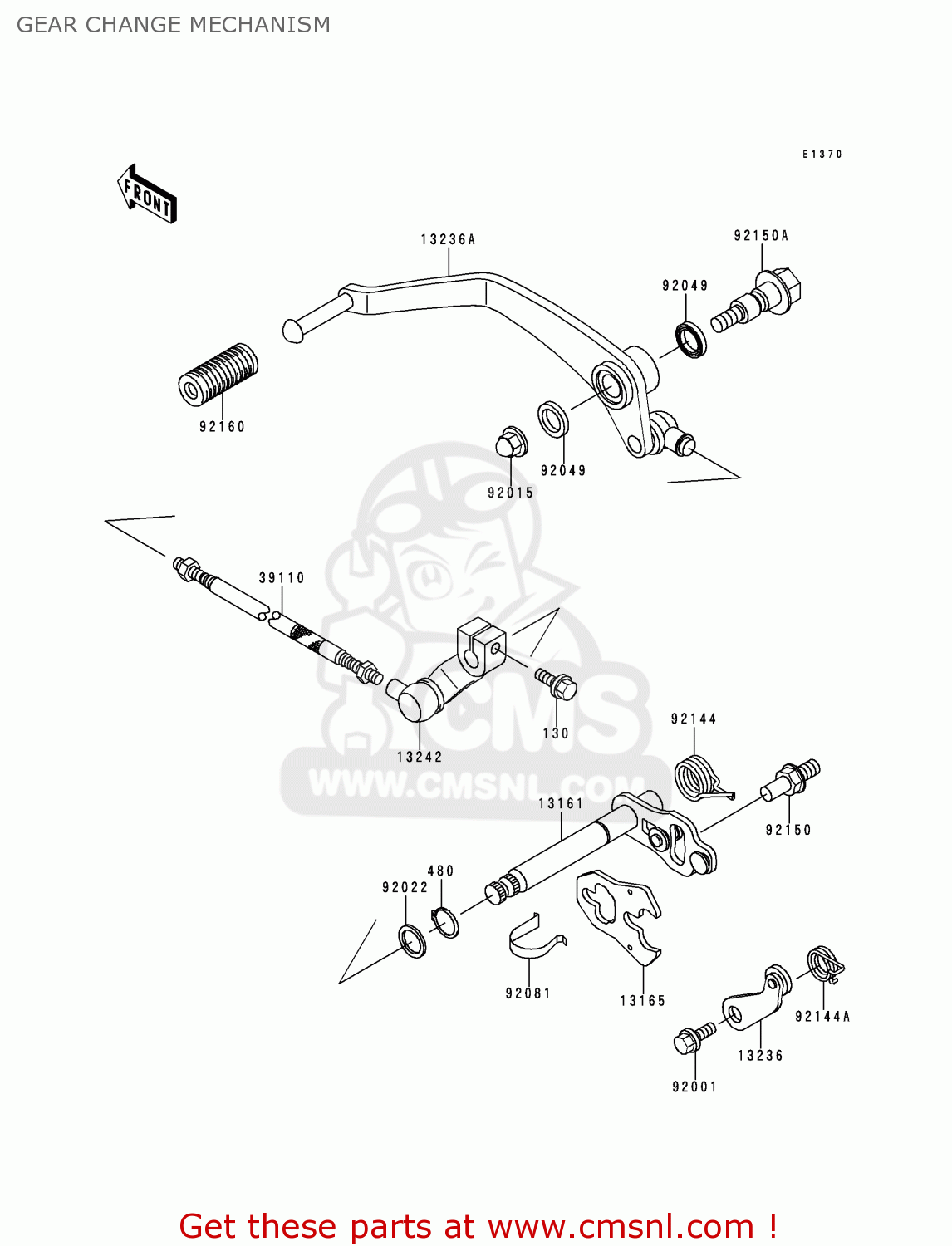

Gear change mechanism diagram VN800A3A 1997 NETHERLANDS
GEAR CHANGE MECHANISM VN800A3A 1997 NETHERLANDS
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
€ 2.50
13161
131611218
ref: 13161
LEVER-COMP-CHANGE SHA
€ 57.00
13165
131651151
ref: 13165
PAWL,CHANGE LEVER
€ 9.50
13236
132361126
ref: 13236
LEVER-COMP,POSITION
€ 9.00
13236A
132361271
ref: 13236A
LEVER-COMP,CHANGE PED
€ 59.00
13242
132421290
ref: 13242
LEVER-ASSY-CHANGE
€ 38.50
39110
391101111
ref: 39110
ROD-ASSY-TIE
€ 13.50
92001
920011715
ref: 92001
BOLT
€ 7.00
92015
920151370
ref: 92015
NUT,CAP,8MM
€ 3.00
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
€ 2.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
€ 4.00
92081
920811829
ref: 92081
SPRING,CHANGE LEVER
€ 6.00
92144
921441345
ref: 92144
SPRING,CHANGE PEDAL R
€ 11.50
92144A
921441850
ref: 92144A
SPRING,LEVER
€ 2.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92150A
921501908
ref: 92150A
BOLT,CHANGE PEDAL
€ 14.50
92160
921601637
ref: 92160
DAMPER,CHANGE PEDAL
€ 5.50
