CLUTCH
VN800A3A 1997 NETHERLANDS

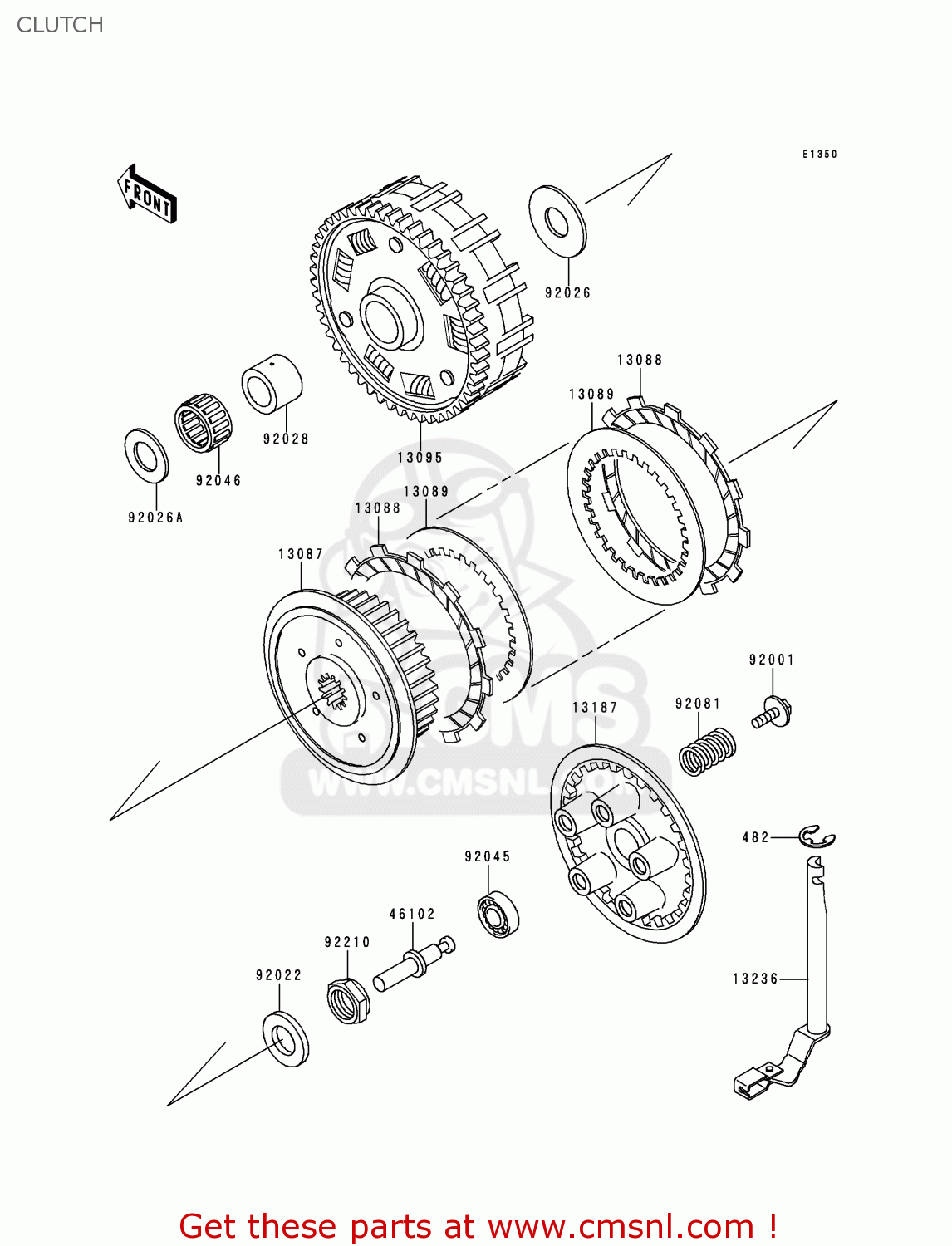

Clutch diagram VN800A3A 1997 NETHERLANDS
CLUTCH VN800A3A 1997 NETHERLANDS
×
prices are in EUR
ref
part #
description
quantity
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
13087
13087042
ref: 13087
HUB,CLUTCH
€ 133.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13089
13089027
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 7.50
13095
130951307
ref: 13095
HOUSING-COMP-CLUTCH
€ 424.50
13187
131871006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 58.00
13236
132361269
ref: 13236
LEVER-COMP,CLUTCH REL
€ 26.50
46102
461021374
ref: 46102
ROD,PULL
€ 13.50
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
€ 5.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
€ 6.50
92026A
92026116
ref: 92026A
SPACER,THRUST,T=5.5MM
€ 12.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
€ 17.00
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
€ 20.50
92081
920811864
ref: 92081
SPRING,CLUTCH
€ 5.00
92210
922101084
ref: 92210
NUT,20MM
€ 10.00
