AIR CLEANER
VN800A3A 1997 NETHERLANDS

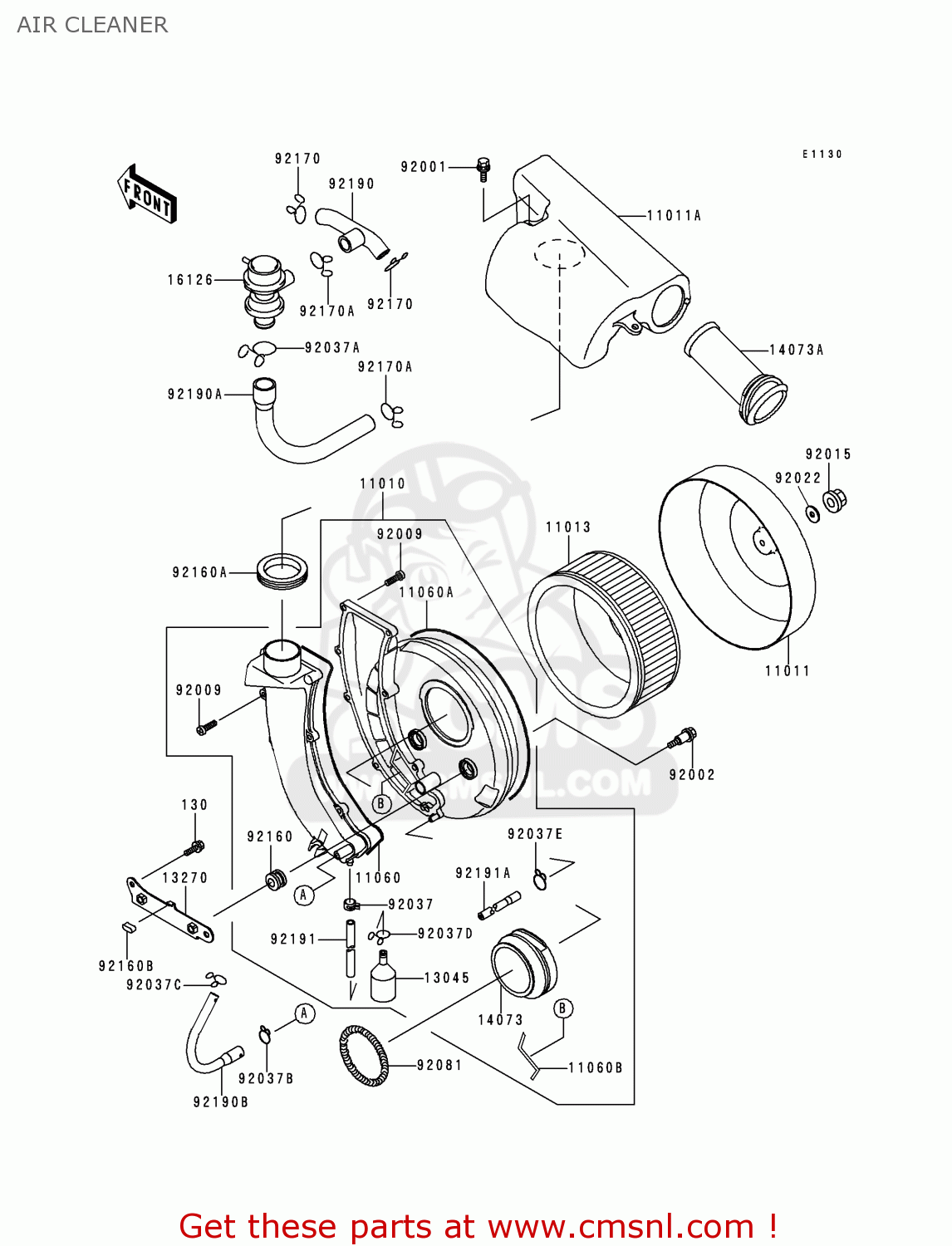

Air cleaner diagram VN800A3A 1997 NETHERLANDS
AIR CLEANER VN800A3A 1997 NETHERLANDS
×
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
11010
110101597
ref: 11010
FILTER-ASSY-AIR
€ 142.50
11011
110111453
ref: 11011
CASE-AIR FILTER,COVER
€ 75.00
11011A
110111454
ref: 11011A
CASE-AIR FILTER,CHAMB
€ 79.50
11013
110131243
ref: 11013
ELEMENT-AIR FILTER
€ 43.50
11060
110601720
ref: 11060
GASKET,AIR FILTER (NAS)
€ 3.50
11060A
110601721
ref: 11060A
GASKET,AIR FILTER (NAS)
€ 6.00
11060B
110601748
ref: 11060B
GASKET (NAS)
€ 4.50
13045
130451057
ref: 13045
RECEIVER-OIL
€ 6.50
13270
132701388
ref: 13270
PLATE,AIR FILTER CASE
€ 10.50
14073
140731622
ref: 14073
DUCT,AIR FILTER
€ 13.00
14073A
140731623
ref: 14073A
DUCT,AIR FILTER CHAMB
€ 26.00
16126
161261289
ref: 16126
VALVE,AIR SWITCH
€ 136.00
92001
920011862
ref: 92001
BOLT,W/SP,6X14
€ 2.50
92002
920021595
ref: 92002
BOLT,HEAD COVER
€ 8.50
92009
920091399
ref: 92009
SCREW,TAPPING,5X20
€ 2.00
92015
920151385
ref: 92015
NUT,CAP,6MM
€ 2.50
92022
92022193
ref: 92022
WASHER,6.5X20X1.6,WHI
€ 3.50
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
€ 2.50
92037A
920371076
ref: 92037A
CLAMP,TUBE
€ 4.00
92037B
920371271
ref: 92037B
CLAMP,FUEL TUBE
€ 2.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92037D
920371712
ref: 92037D
CLAMP
€ 3.00
92037E
920373025
ref: 92037E
CLAMP,TUBE
€ 4.00
92081
920811638
ref: 92081
SPRING,DUCT
€ 6.50
92160
921601594
ref: 92160
DAMPER
€ 3.00
92160A
921601600
ref: 92160A
DAMPER
€ 4.50
92160B
921601605
ref: 92160B
DAMPER,PLATE
€ 2.00
92170
921701017
ref: 92170
CLAMP
€ 3.00
92170A
921701445
ref: 92170A
CLAMP,TUBE
€ 3.00
92190
921901600
ref: 92190
TUBE,AIR SWITCH-HEAD
€ 11.50
92190A
921901601
ref: 92190A
TUBE,AIR SWITCH-FILTE
€ 13.50
92190B
921901602
ref: 92190B
TUBE,BREATHER
€ 7.50
92191
921911111
ref: 92191
TUBE,6X9X345
€ 4.50
92191A
921911112
ref: 92191A
TUBE
€ 6.50
