BATTERY CASE
VN800A3A 1997 NETHERLANDS

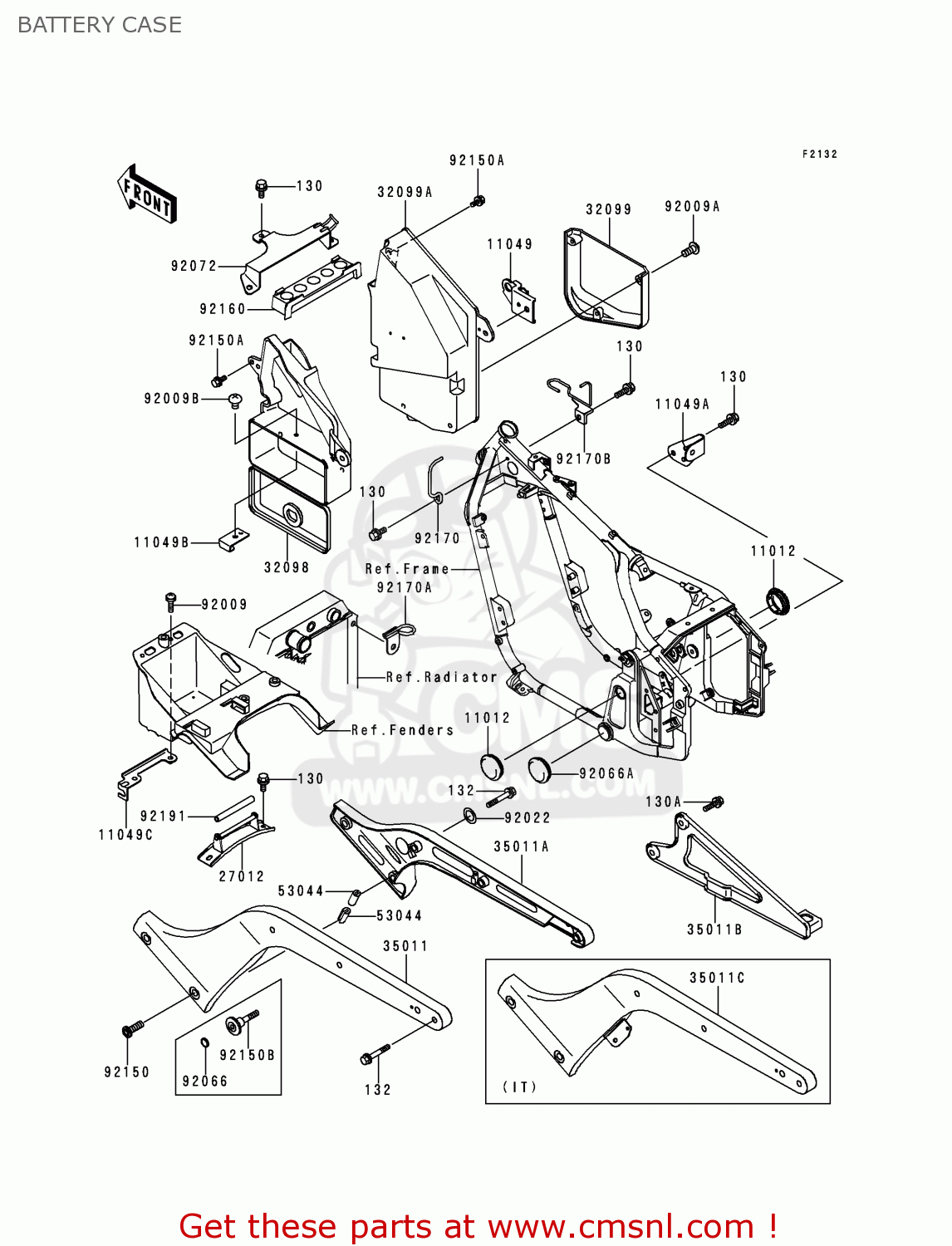

Battery case diagram VN800A3A 1997 NETHERLANDS
BATTERY CASE VN800A3A 1997 NETHERLANDS
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
130A
130J0820
ref: 130A
BOLT-FLANGED,8X20
€ 0.50
132
132E0835
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
11012
110121926
ref: 11012
CAP
€ 8.00
11049
110491183
ref: 11049
BRACKET,SIDE COVER LO
€ 10.50
11049A
110491233
ref: 11049A
BRACKET,RESERVOIR TAN
€ 6.50
11049B
110491266
ref: 11049B
BRACKET,TOOL CASE LOC
€ 3.00
11049C
110491284
ref: 11049C
BRACKET,CHOCK CABLE
€ 8.00
27012
270121495
ref: 27012
HOOK,SEAT
€ 17.50
32098
320981106
ref: 32098
CASE-TOOL
€ 62.50
32099
320991164
ref: 32099
CASE
€ 12.50
32099A
320991167
ref: 32099A
CASE,BASE
€ 38.50
35011
350111725
ref: 35011
STAY,LH
€ 209.00
35011A
350111726
ref: 35011A
STAY,RH
€ 201.00
35011B
350111727
ref: 35011B
STAY,MUFFLER
€ 36.50
53044
530441292
ref: 53044
TRIM,L=20
€ 2.00
92009
920091402
ref: 92009
SCREW,6X10
€ 1.50
92009A
920091635
ref: 92009A
SCREW,TAPPING,5X14
€ 2.00
92009B
920091653
ref: 92009B
SCREW
€ 2.50
92022
920221823
ref: 92022
WASHER
€ 3.50
92066
920661277
ref: 92066
PLUG
€ 4.00
92066A
920661434
ref: 92066A
PLUG
€ 7.50
92072
920721320
ref: 92072
BAND,BATTERY
€ 25.00
92150
921501517
ref: 92150
BOLT,SOCKET,10X30
€ 5.50
92150A
921501689
ref: 92150A
BOLT,FLANGED,6X14
€ 2.00
92150B
921501947
ref: 92150B
BOLT
€ 11.00
92160
921601634
ref: 92160
DAMPER,BATTERY BAND
€ 24.50
92170
921701605
ref: 92170
CLAMP,HARNESS
€ 8.00
92170A
921701608
ref: 92170A
CLAMP,CABLE
€ 4.50
92170B
921701622
ref: 92170B
CLAMP,HARNESS&CABLE
€ 9.00
92191
921911009
ref: 92191
TUBE,6X10X80
€ 2.50
