SWINGARM

VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

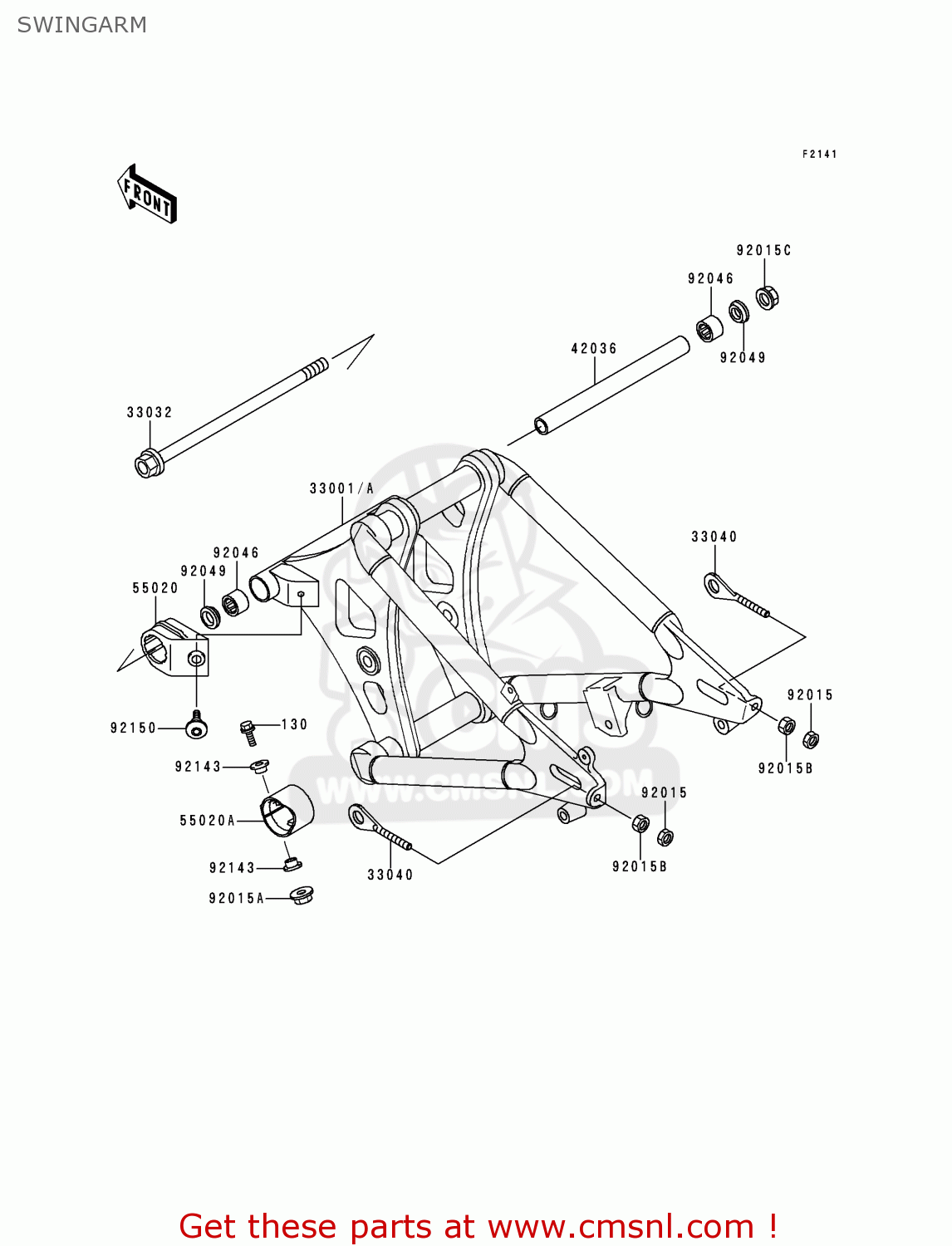

Swingarm diagram VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

33001A

330011509
ref: 33001A

ARM-COMP-SWING

€ 580.00

33032

330321177
ref: 33032

SHAFT-SWING ARM

€ 46.50

33040

330401146
ref: 33040

ADJUSTER-CHAIN

€ 20.00

42036

420361324
ref: 42036

SLEEVE,SWING ARM,L=24

€ 29.00

55020

550201530
ref: 55020

GUARD,CHAIN PIVOT

€ 30.50

55020A

550201531
ref: 55020A

GUARD,CHAIN CLOSS

€ 13.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151603
ref: 92015A

NUT

€ 3.00

92015B

920151658
ref: 92015B

NUT,FLANGED,8MM

€ 3.00

92015C

920151946
ref: 92015C

NUT

€ 8.50

92046

920461174
ref: 92046

BEARING-NEEDLE,TA2230

€ 37.50

92049

920491289
ref: 92049

SEAL-OIL

€ 6.00

92143

921431088
ref: 92143

COLLAR,L=6.6

€ 3.50

92150

921501154
ref: 92150

BOLT,SOCKET,6MM

€ 5.00

SWINGARM

all assemblies
