STAND(S)

VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

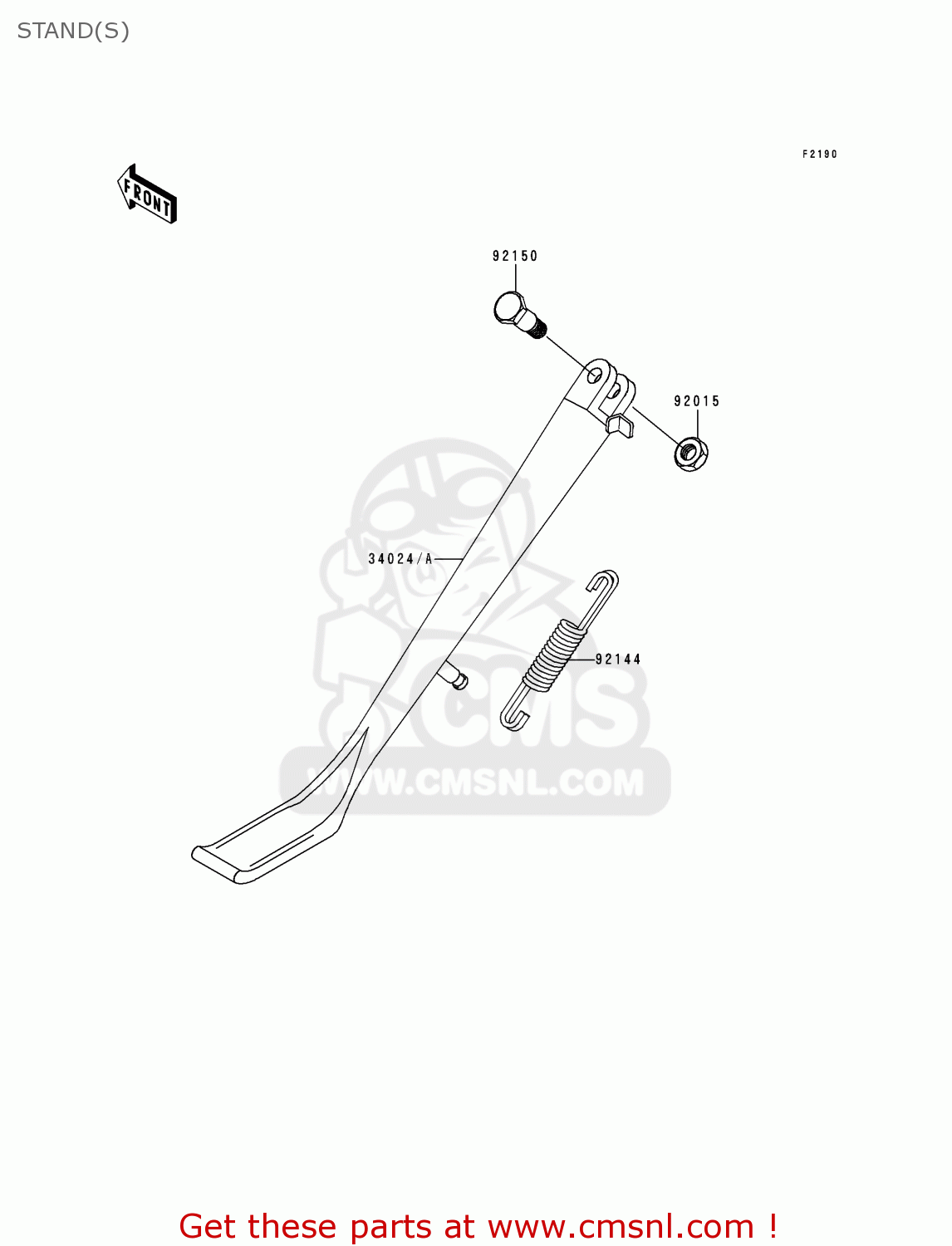

Stand(s) diagram VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

STAND(S) VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

STAND(S) VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

34024A

340241327
ref: 34024A

STAND-SIDE

€ 100.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92144

921441098
ref: 92144

SPRING,CENTER STAND

€ 17.50

92150

921501941
ref: 92150

BOLT,SIDE STAND

€ 4.00
