Genuine VN Kawasaki Parts delivered quickly!


SUSPENSION/SHOCK ABSORBER

VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

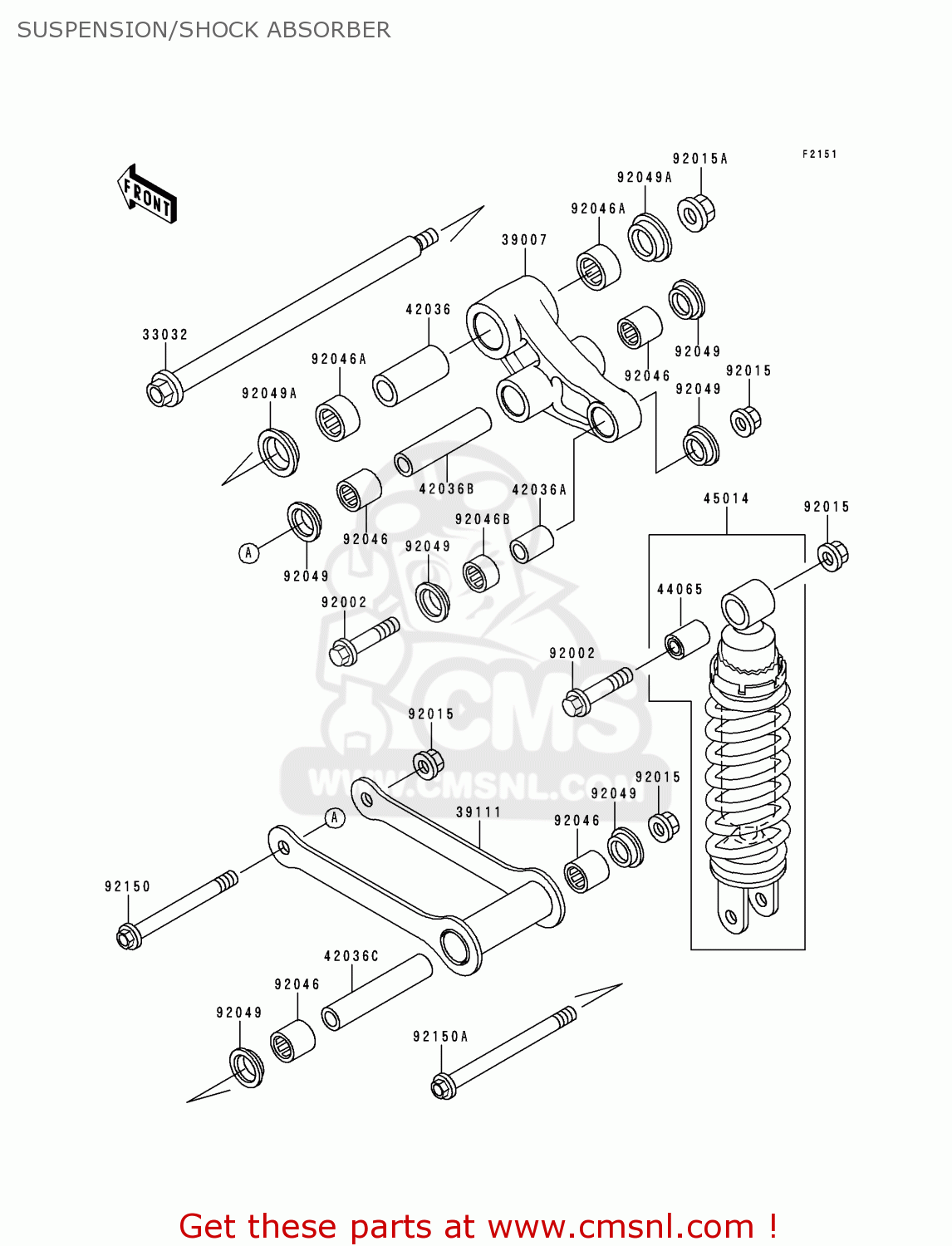

Suspension/shock absorber diagram VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

SUSPENSION/SHOCK ABSORBER VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA
SUSPENSION/SHOCK ABSORBER VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA
SUSPENSION/SHOCK ABSORBER VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
33032
330321176
ref: 33032
SHAFT-SWING ARM
€ 59.00
39007
390071233
ref: 39007
ARM-SUSP,UNI TRAK
€ 219.00
39111
391111141
ref: 39111
ROD-TIE,SUSPENSION
391111141
€ 117.50
42036
420361207
ref: 42036
SLEEVE,20X28X60
420361207
€ 22.50
42036A
420361234
ref: 42036A
SLEEVE,12.1X20X30
420361234
€ 10.50
42036B
420361322
ref: 42036B
SLEEVE,12.1X20X92
420361322
€ 12.50
42036C
420361323
ref: 42036C
SLEEVE,12.1X20X108
420361323
€ 14.50
44065
440651017
ref: 44065
BUSHING-FRONT FORK
440651017
€ 21.50
45014
450141598
ref: 45014
SHOCKABSORBER
450141598
€ 580.00
92002
920021130
ref: 92002
BOLT,12X55
920021130
€ 7.00
92015
920151433
ref: 92015
NUT,12MM
920151433
€ 6.00
92015A
920151946
ref: 92015A
NUT
920151946
€ 8.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92046A
920461111
ref: 92046A
BEARING-NEEDLE,BM2817
920461111
€ 21.50
92046B
920461112
ref: 92046B
BEARING-NEEDLE,BM2027
920461112
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92049A
920491181
ref: 92049A
SEAL-OIL
920491181
€ 7.50
92150
921501895
ref: 92150
BOLT,FLANGED,12X117
€ 8.50
92150A
921501896
ref: 92150A
BOLT,FLANGED,12X145
921501896
€ 10.00
