CRANKCASE BOLT PATTERN

VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

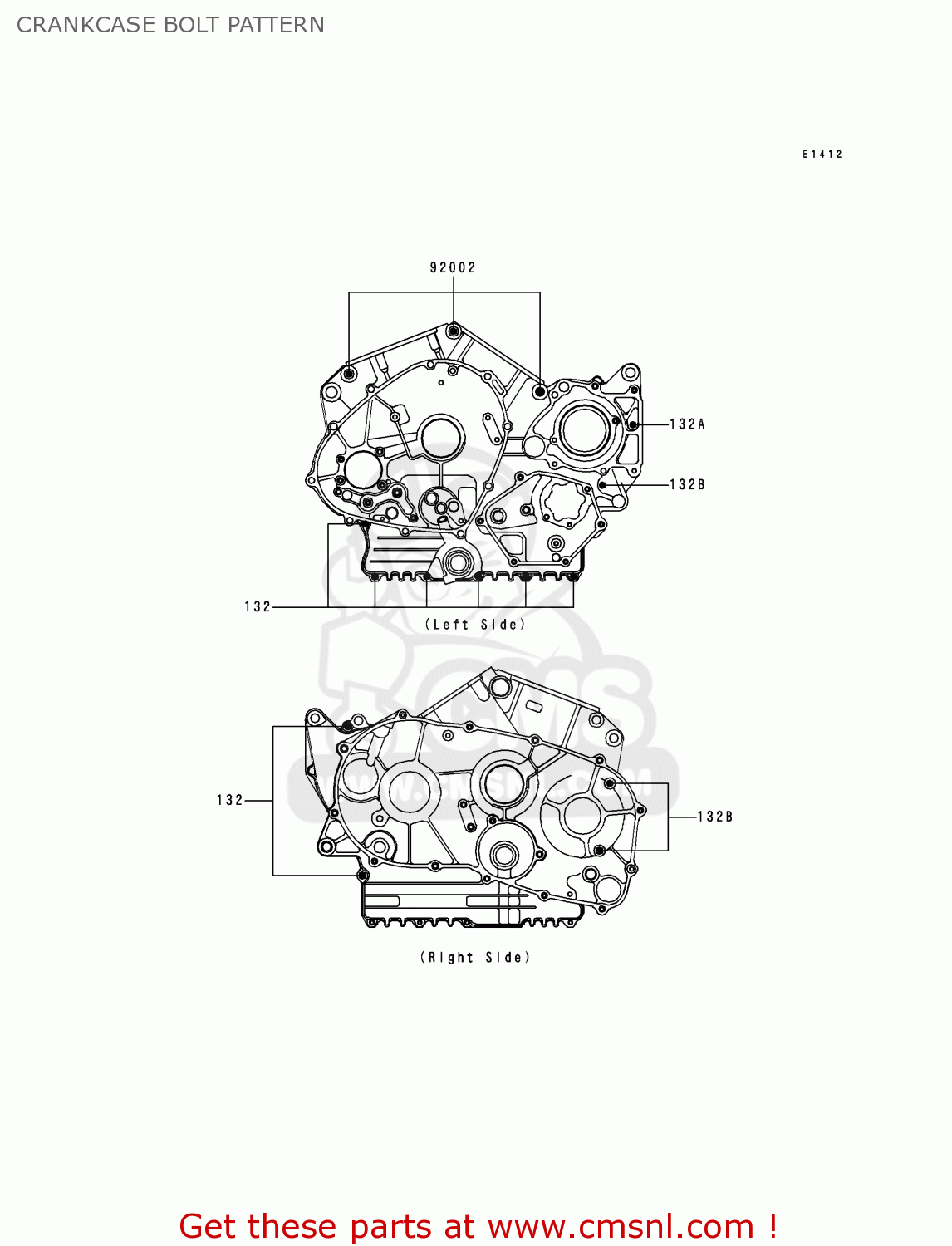

Crankcase bolt pattern diagram VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN VN800A3 VULCAN 800 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0630
ref: 132
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132A
132J0640
ref: 132A
BOLT-FLANGED-SMALL
132J0640
€ 3.00
132B
132J0660
ref: 132B
BOLT-FLANGED-SMALL
132J0660
€ 3.50
92002
920021542
ref: 92002
BOLT,10X80
€ 6.50
