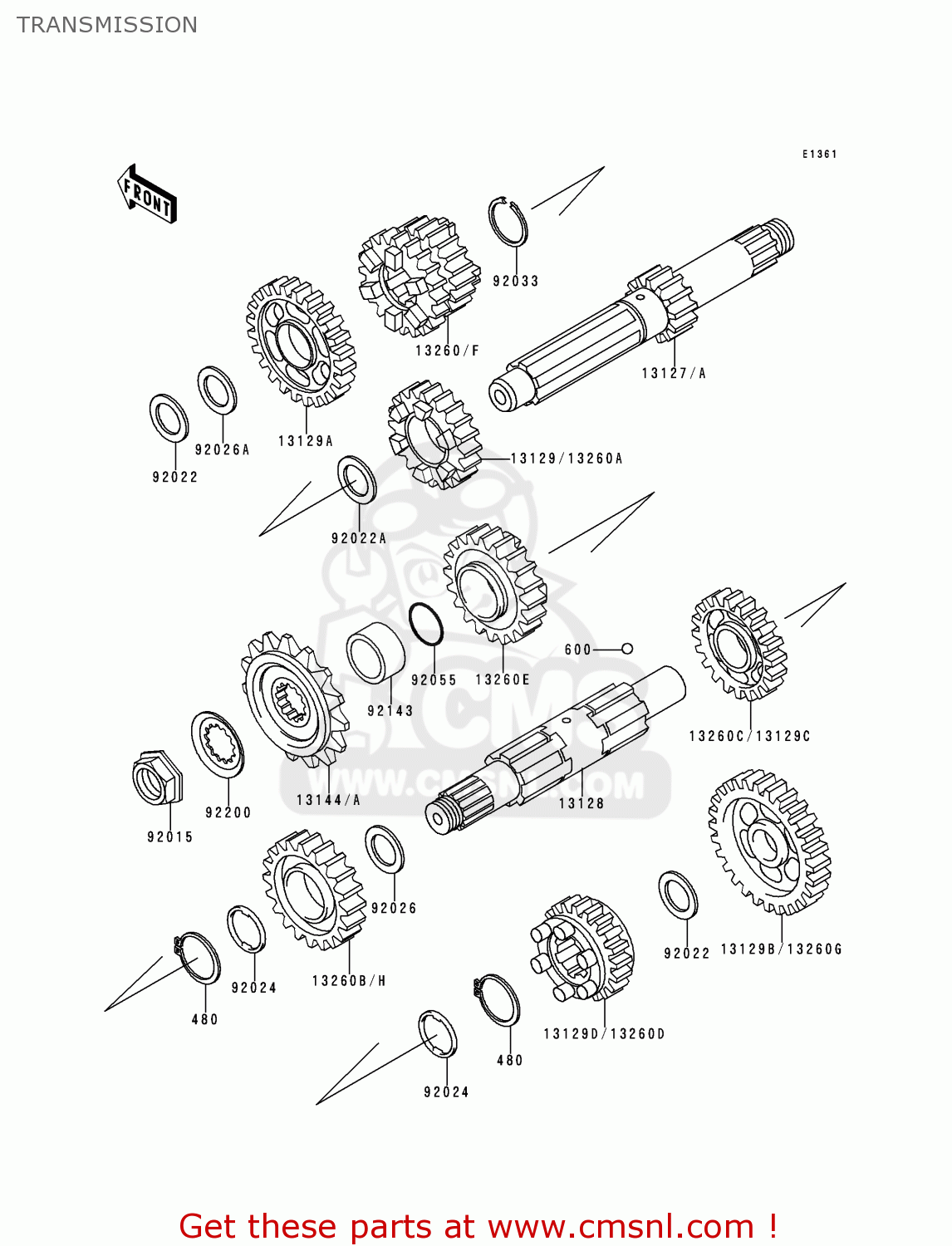

TRANSMISSION

ref

part #

description

quantity

480

480J3000
ref: 480

CIRCLIP-TYPE-C,30MM

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271240
ref: 13127

SHAFT-TRANSMISSION IN

€ 244.00

13128

131281204
ref: 13128

SHAFT-TRANSMISSION OU

€ 203.50

13129

131291631
ref: 13129

GEAR,INPUT 4TH,26T

€ 107.00

13129A

131291632
ref: 13129A

GEAR,INPUT 5TH,28T

€ 51.00

13129B

131291633
ref: 13129B

GEAR,OUTPUT LOW,36T

€ 96.50

13129D

131291636
ref: 13129D

GEAR,OUTPUT 4TH,26T

€ 113.00

13144

131441212
ref: 13144

SPROCKET-OUTPUT,16T

€ 35.50

13260

132601472
ref: 13260

GEAR,INPUT 2ND&3RD,20

€ 94.50

13260B

132601474
ref: 13260B

GEAR,OUTPUT 2ND,32T

€ 90.50

13260C

132601475
ref: 13260C

GEAR,OUTPUT 3RD,32T

€ 85.00

13260E

132601477
ref: 13260E

GEAR,OUTPUT 5TH,24T

€ 121.00

92015

920151963
ref: 92015

NUT,20MM

€ 10.50

92022

92022112
ref: 92022

WASHER,20.5X30X1,STEE

€ 6.00

92022A

92022161
ref: 92022A

WASHER-THRUST,25MM

€ 7.00

92024

92024069
ref: 92024

WASHER,TOOTHED,30.5X3

€ 3.50

92026

92026079
ref: 92026

WASHER,30X38X1

€ 6.00

92026A

920261535
ref: 92026A

SPACER,20.5X30X0.5

€ 4.50

92033

92033026
ref: 92033

CIRCLIP

€ 6.00

92055

92055035
ref: 92055

O RING

€ 3.00

92143

921431735
ref: 92143

COLLAR

€ 14.00

92200

922001065
ref: 92200

WASHER

€ 4.50
