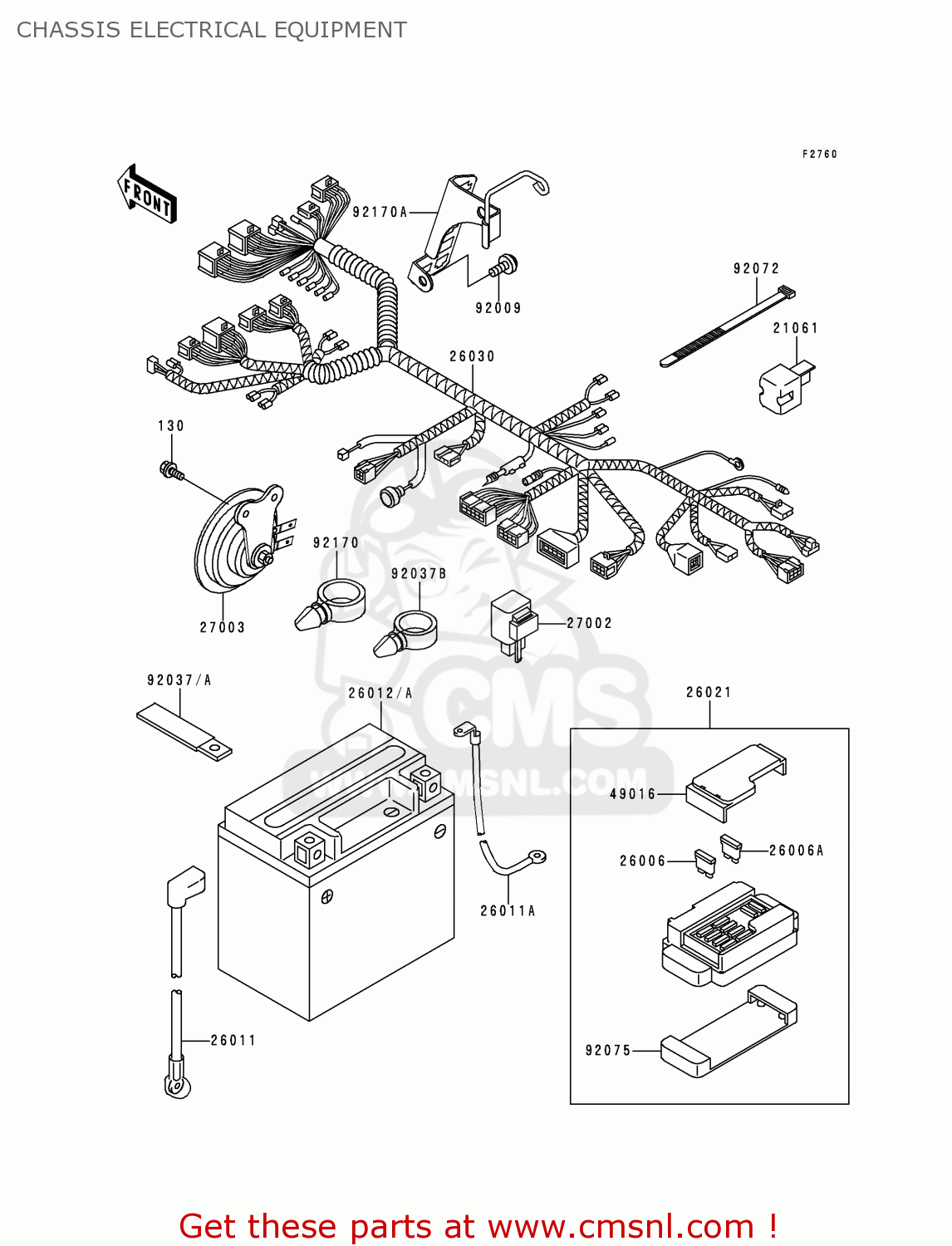

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111621
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 22.00

26011A

260111633
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 20.50

26012A

260121334
ref: 26012A

BATTERY,YTX14-BS,12V

€ 124.50

26021

260211089
ref: 26021

JUNCTION BOX

€ 126.00

26030

260301363
ref: 26030

HARNESS,MAIN

€ 188.50

27002

270021101
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031239
ref: 27003

HORN,350HZ,LH

€ 58.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92009

920091662
ref: 92009

SCREW

€ 2.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371539
ref: 92037A

CLAMP,L=45

€ 3.00

92037B

920371827
ref: 92037B

CLAMP,HOSE

€ 5.00

92072

920721197
ref: 92072

BAND

€ 5.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701067
ref: 92170

CLAMP,HOSE

€ 5.00

92170A

921701570
ref: 92170A

CLAMP,HARNESS

€ 14.00

all assemblies
