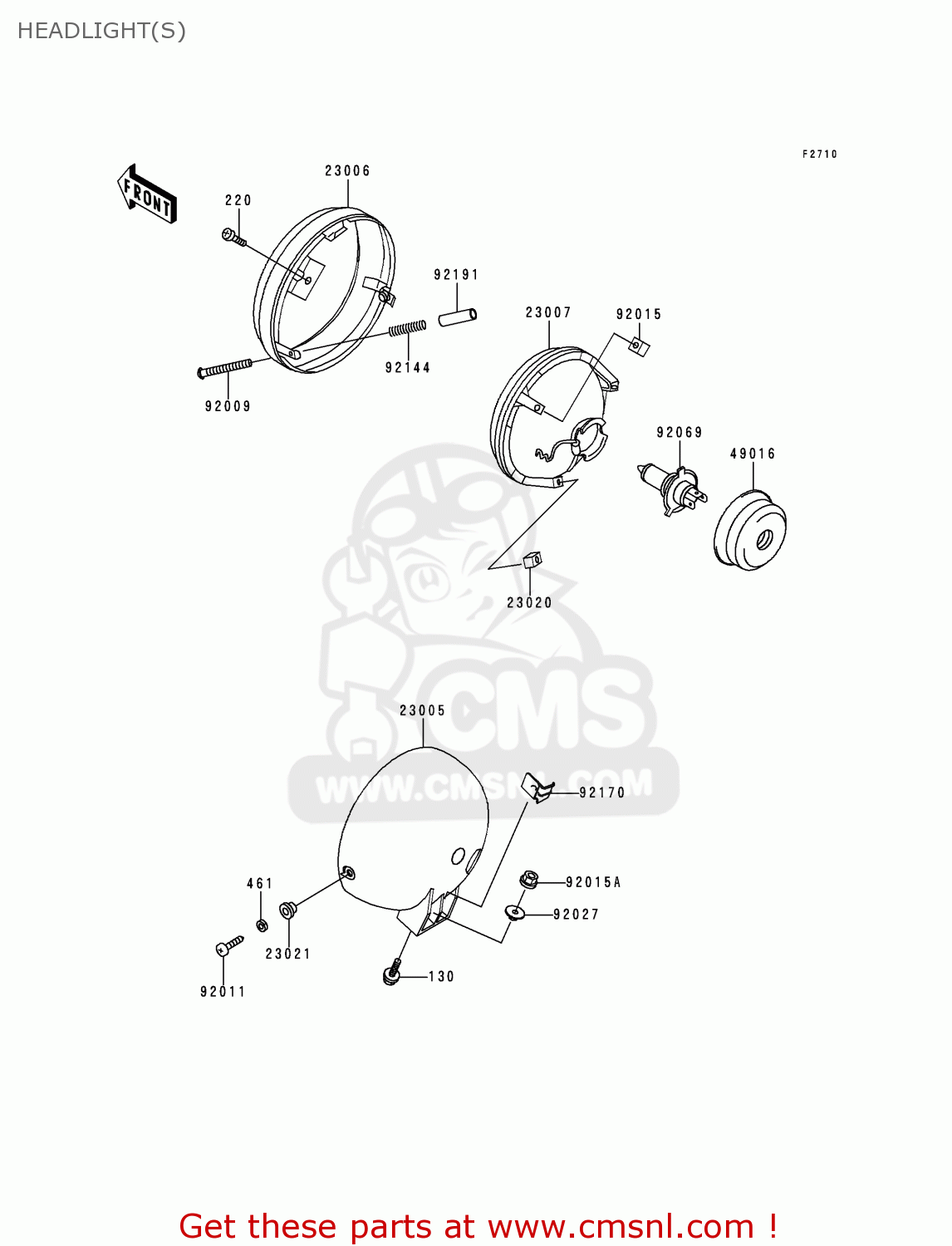

HEADLIGHT(S)

ref

part #

description

quantity

130

130V0620
ref: 130

BOLT-FLANGED

€ 2.00

220

220D0512
ref: 220

SCREW-PAN-CROS,5X12

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

23005

230051149
ref: 23005

BODY-COMP-HEAD LAMP

€ 117.00

23006

230061070
ref: 23006

RIM-LAMP

€ 61.50

23007

230071169
ref: 23007

LENS-COMP, HEAD LAMP

€ 138.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

23021

23021010
ref: 23021

WASHER

€ 2.50

49016

490161129
ref: 49016

COVER-SEAL,HEAD LAMP

€ 8.00

92009

920091472
ref: 92009

SCREW,FOCUS ADJUST,4X

€ 3.50

92011

92011024
ref: 92011

SCREW-PAN HEAD,5MM

€ 2.00

92015

920151157
ref: 92015

NUT,5MM

€ 3.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92027

92027252
ref: 92027

COLLAR,L=6.5

€ 3.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92144

921441149
ref: 92144

SPRING,FOCUS ADJUST

€ 5.50

92170

921701624
ref: 92170

CLAMP

€ 3.50

92191

921911217
ref: 92191

TUBE

€ 1.50

all assemblies
