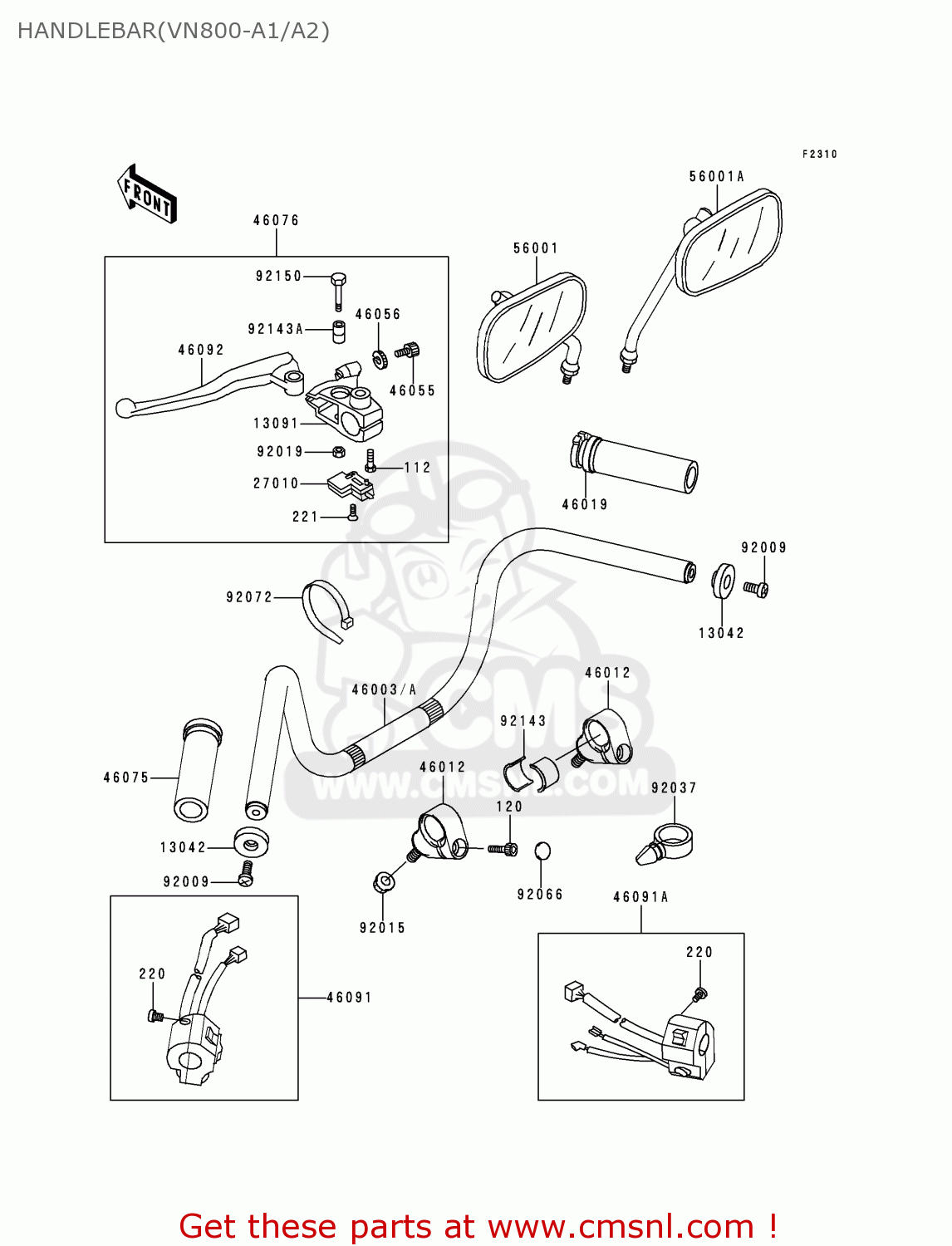

HANDLEBAR(VN800-A1/A2)

ref

part #

description

quantity

112

112G0620
ref: 112

BOLT 6X20

€ 1.00

120

120P1025
ref: 120

BOLT-SOCKET,10X25

€ 3.00

220

220E0516
ref: 220

SCREW-PAN-CROS

€ 2.50

221

221B0320
ref: 221

SCREW-CSK-CROS,3X20

€ 3.50

13042

130421068
ref: 13042

WEIGHT,HANDLE

€ 19.50

13091

130911671
ref: 13091

HOLDER,CLUTCH LEVER

€ 41.50

27010

270101268
ref: 27010

SWITCH,CLUTCH

€ 20.50

46003

460031424
ref: 46003

HANDLE

€ 107.50

46012

460121171
ref: 46012

HOLDER-HANDLE

€ 96.50

46019

460191065
ref: 46019

GRIP-ASSY,THROTTLE

€ 33.50

46055

46055003
ref: 46055

SCREW-CABLE ADJUST

€ 11.50

46056

46056005
ref: 46056

NUT-LOCK

€ 6.00

46075

460751074
ref: 46075

GRIP,LH

€ 20.50

46076

460761174
ref: 46076

LEVER-ASSY-GRIP,CLUTC

€ 99.00

46091

460911618
ref: 46091

HOUSING-ASSY-CONTROL,

€ 166.00

46091A

460911621
ref: 46091A

CONTROLLER HOUSING ASSEMBLY

€ 116.50

46092

460921164
ref: 46092

LEVER-GRIP,CLUTCH

€ 22.50

56001

560011407
ref: 56001

MIRROR-ASSY,LH

€ 71.50

56001A

560011408
ref: 56001A

MIRROR-ASSY,RH

€ 71.50

92009

920091484
ref: 92009

SCREW,8X20

€ 3.50

92015

920151717
ref: 92015

NUT,LOCK,FLANGED,10MM

€ 6.50

92019

92019008
ref: 92019

NUT-LOCK,6MM

€ 3.00

92037

920371827
ref: 92037

CLAMP,HOSE

€ 5.00

92066

920661285
ref: 92066

PLUG

€ 5.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92143

921431098
ref: 92143

COLLAR,HANDLE HOLDER

€ 6.00

92143A

921431351
ref: 92143A

COLLAR

€ 12.50

92150

921501330
ref: 92150

BOLT,LEVER SET

€ 9.00

all assemblies
