Genuine VN Kawasaki Parts delivered quickly!


TAILLIGHT(S)

VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

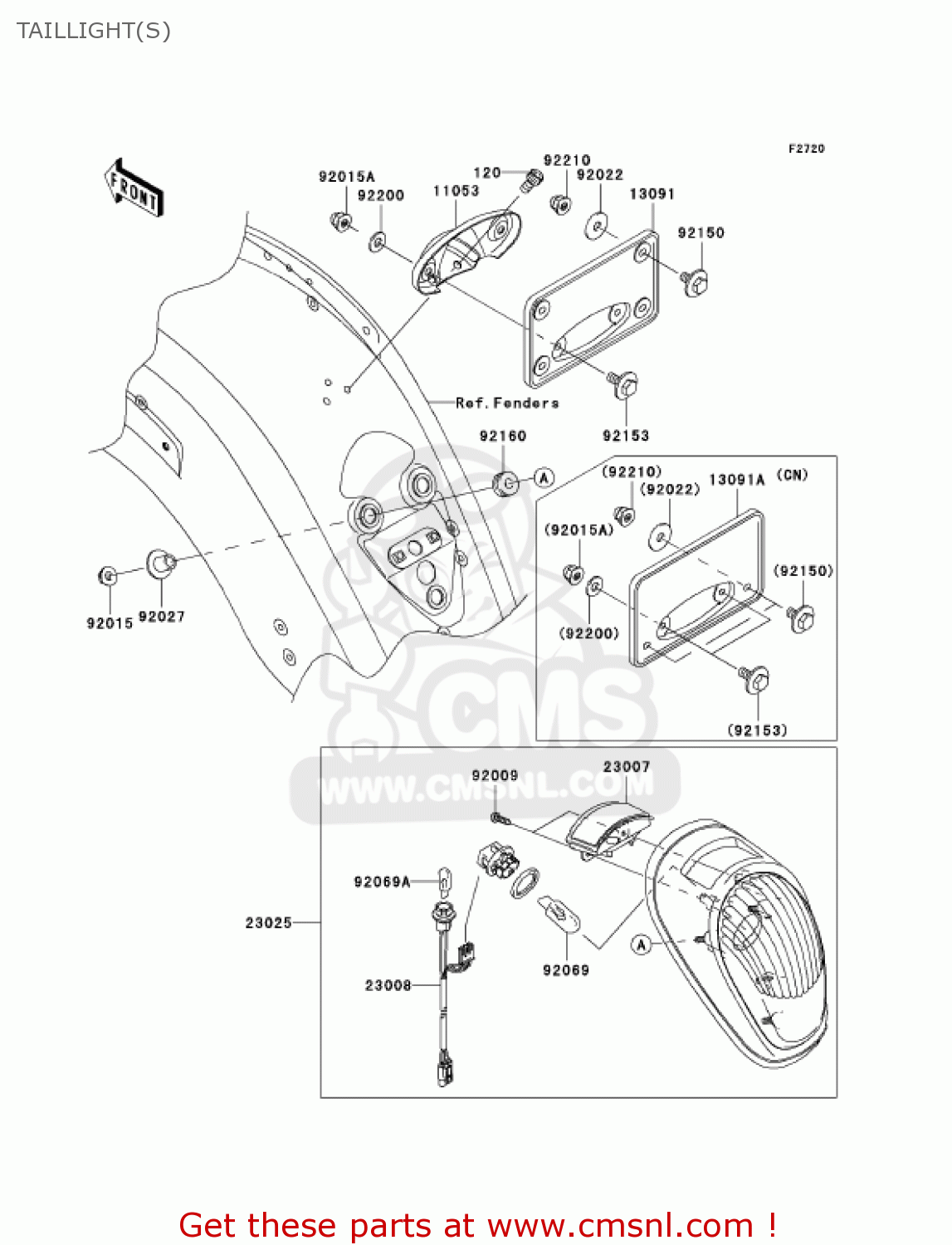

Taillight(s) diagram VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

TAILLIGHT(S) VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
TAILLIGHT(S) VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
TAILLIGHT(S) VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120W0612
ref: 120
BOLT-SOCKET
€ 1.50
11053
110530901
ref: 11053
BRACKET,LICENSE
€ 30.00
13091
130911500
ref: 13091
[CA,US
HOLDER,LICENSE PLATE
130911500
€ 16.00
13091A
130911952
ref: 13091A
[CN]
HOLDER,LICENSE PLATE
€ 0.00
23007
230070020
ref: 23007
LENS-COMP,LICENSE
230070020
€ 47.50
23008
230080017
ref: 23008
SOCKET-ASSY,TAIL LAMP
€ 35.50
23025
230250001
ref: 23025
LAMP-TAIL
€ 294.00
92009
920091381
ref: 92009
SCREW,TAPPING,4X12
920091381
€ 2.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92015A
920151385
ref: 92015A
NUT,CAP,6MM
920151385
€ 2.50
92022
920221346
ref: 92022
[CN]
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022
920221346
ref: 92022
[CA,US
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92069
920690004
ref: 92069
BULB,12V 21/5W
920690004
€ 3.50
92069A
920691016
ref: 92069A
BULB,12V 5W
920691016
€ 4.00
92150
921501133
ref: 92150
[CN]
BOLT,6X14
921501133
€ 2.50
92150
921501133
ref: 92150
[CA,US
BOLT,6X14
921501133
€ 2.50
92153
921530684
ref: 92153
BOLT,6X16
921530684
€ 3.00
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
92200
922003775
ref: 92200
WASHER,6.5X14.5X1.5
922003775
€ 1.50
92210
922100003
ref: 92210
[CN]
NUT
922100003
€ 0.50
92210
922100003
ref: 92210
[CA,US
NUT
922100003
€ 0.50
