Genuine VN Kawasaki Parts delivered quickly!


IGNITION SWITCH/LOCKS/REFLECTORS

VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

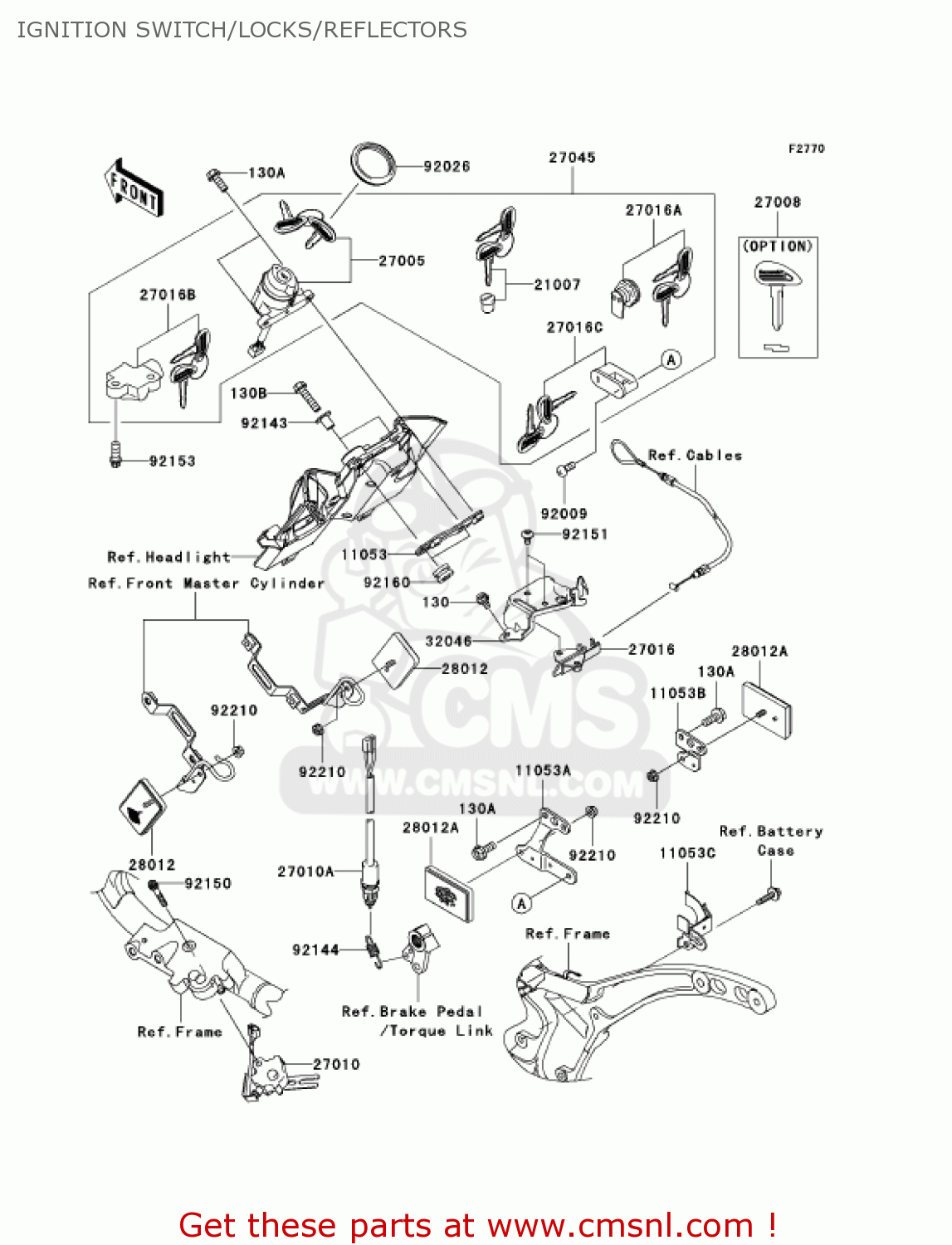

Ignition switch/locks/reflectors diagram VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130L0612
ref: 130
BOLT-FLANGED
€ 1.50
130A
130L0616
ref: 130A
BOLT-FLANGED
130L0616
€ 1.50
130B
130L0625
ref: 130B
BOLT-FLANGED
130L0625
€ 2.00
11053
110530218
ref: 11053
BRACKET,IGNITION SWIT
€ 9.50
11053A
110530222
ref: 11053A
BRACKET,REFLECTOR,RR,
€ 7.50
11053B
110530223
ref: 11053B
BRACKET,REFLECTOR,RR,
€ 7.50
11053C
110530920
ref: 11053C
BRACKET,SIDE COVER LO
€ 13.00
21007
210075053
ref: 21007
SWITCH-ASSY,TANK CAP
€ 50.50
27005
270050004
ref: 27005
SWITCH-ASSY-IGNITION
€ 235.00
27008
270081211
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081211
€ 23.50
27010
270100011
ref: 27010
SWITCH,SIDE STAND
€ 52.00
27010A
270100023
ref: 27010A
SWITCH,REAR BRAKE
€ 25.50
27016
270161115
ref: 27016
LOCK-ASSY,SEAT STRIKE
270161115
€ 27.00
27016A
270165279
ref: 27016A
LOCK-ASSY,PAD
€ 54.00
27016B
270165298
ref: 27016B
LOCK-ASSY,STEERING
270165298
€ 97.50
27016C
270165311
ref: 27016C
LOCK-ASSY,HELMET
270165311
€ 58.00
27045
270455212
ref: 27045
SWITCH-ASSY
€ 518.50
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
28012A
280121088
ref: 28012A
REFLECTOR-REFLEX
280121088
€ 15.00
32046
320460037
ref: 32046
BRACKET-SEAT
€ 23.50
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
92026
920260018
ref: 92026
SPACER,IGNITION SWITC
€ 5.50
92143
921431041
ref: 92143
COLLAR,L=15.6
921431041
€ 5.50
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92150
921501958
ref: 92150
BOLT,SOCKET,6X40
€ 3.00
92151
921511219
ref: 92151
BOLT
921511219
€ 4.50
92153
921531273
ref: 92153
BOLT,TORX,8X22
€ 3.50
92160
921601167
ref: 92160
DAMPER,10X20X12
921601167
€ 3.00
92210
922100007
ref: 92210
NUT,FLANGED,5MM
922100007
€ 2.00
