OIL PAN

VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

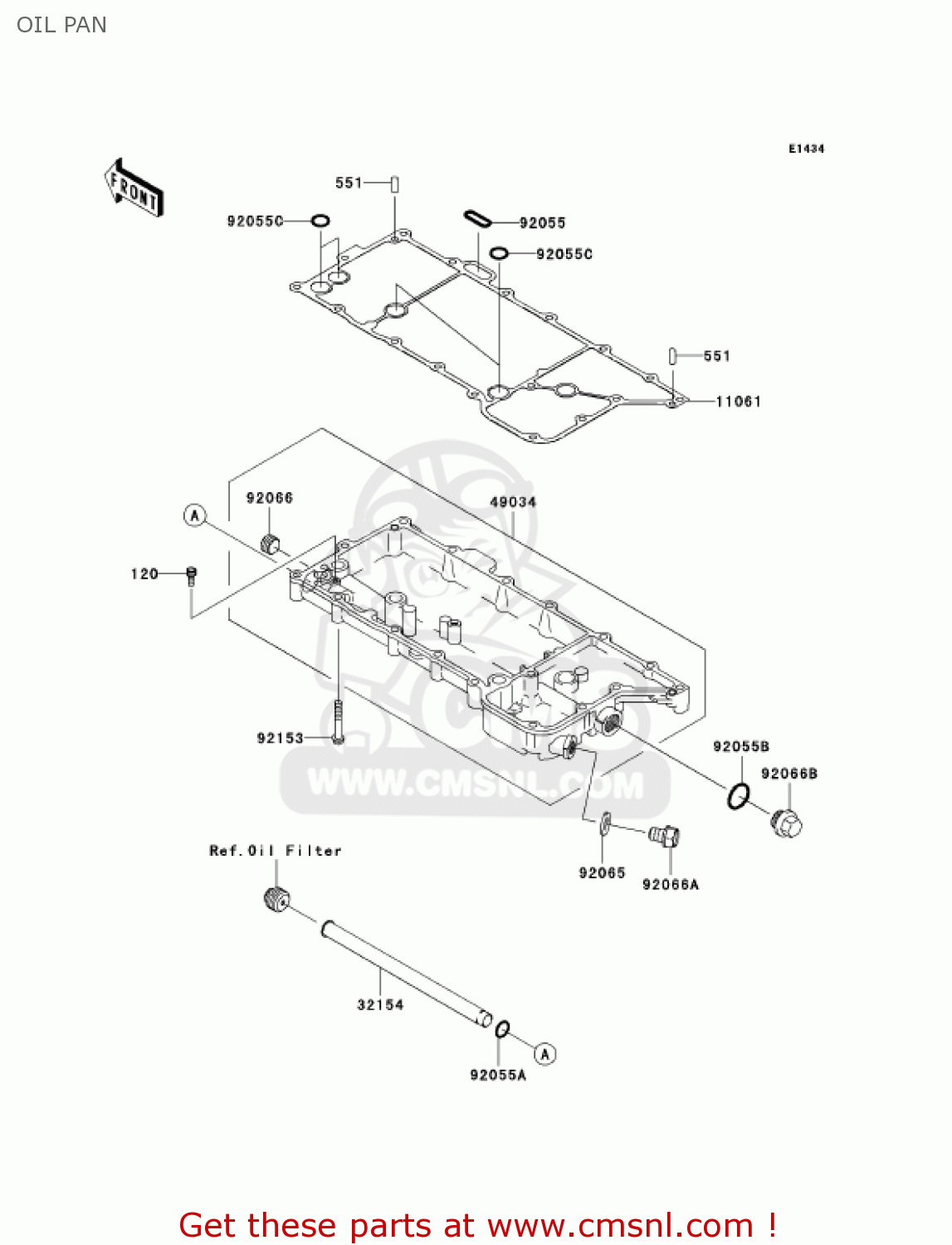

Oil pan diagram VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

551

551A0614
ref: 551

PIN,DOWEL, 6X14

€ 2.50

11061

110610021
ref: 11061

GASKET,OIL PAN (NAS)

€ 42.00

32154

321540065
ref: 32154

PIPE

€ 8.50

49034

490340012
ref: 49034

PAN-OIL

€ 205.50

92055

920550009
ref: 92055

RING-O

€ 2.50

92055A

920551141
ref: 92055A

RING-O,ID=13.8

€ 2.50

92055B

920551146
ref: 92055B

RING-O

€ 5.50

92055C

920551373
ref: 92055C

RING-O,13.2X2.4

€ 3.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920660042
ref: 92066

PLUG

€ 5.00

92066A

920661174
ref: 92066A

PLUG,OIL DRAIN,12X15

€ 4.00

92066B

920661394
ref: 92066B

PLUG,MAIN GALLERY,18X

€ 7.00

92153

921530710
ref: 92153

BOLT,6X40

€ 2.00
