CLUTCH

VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

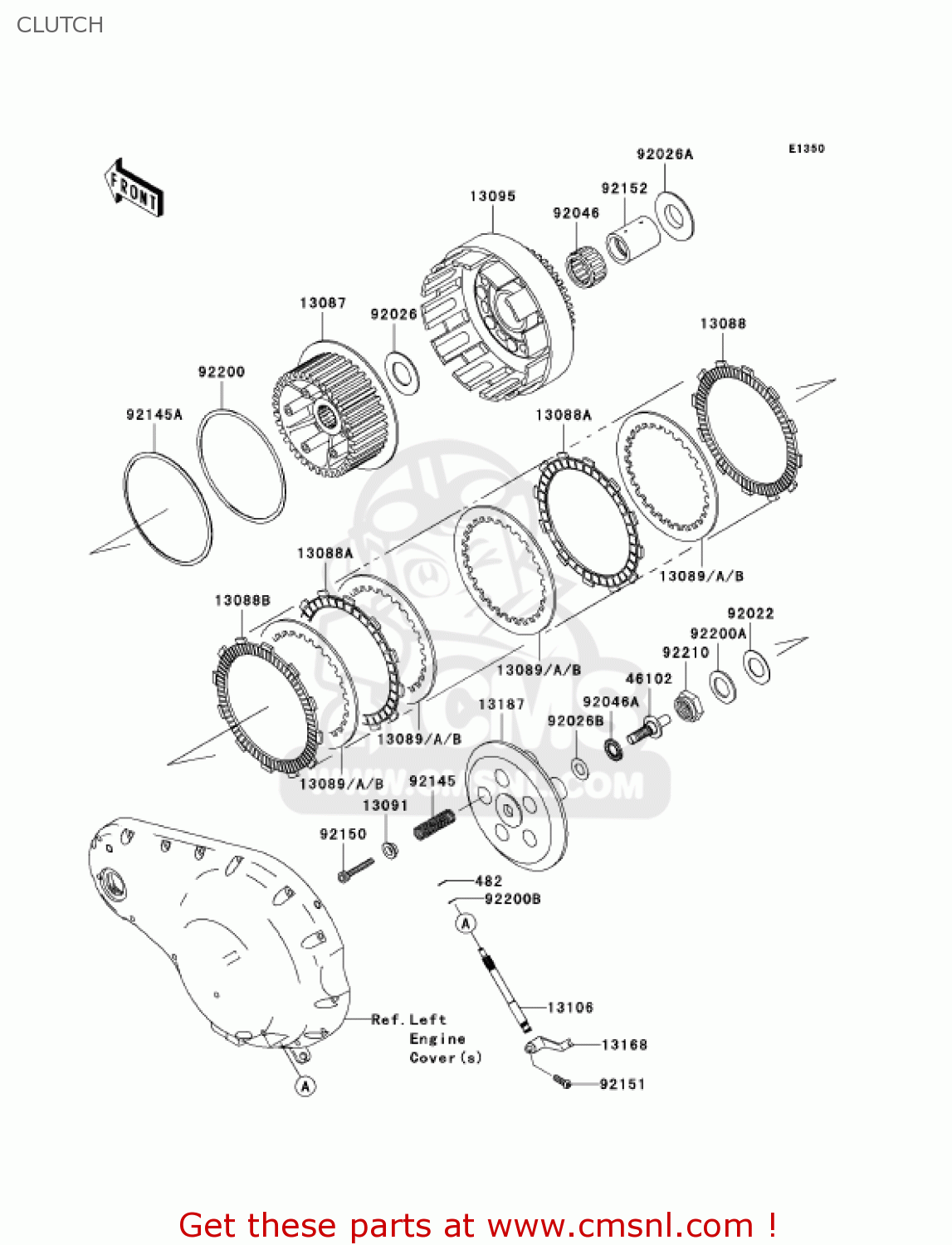

Clutch diagram VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA

CLUTCH VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
CLUTCH VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
CLUTCH VN2000A2 VULCAN 2000 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
482J5000
482J5000
ref: 482J5000
CIRCLIP-TYPE-E,5MM
482J5000
€ 0.50
13087
130870005
ref: 13087
HUB-CLUTCH
130870005
€ 145.00
13088
130880001
ref: 13088
PLATE-FRICTION (NAS)
130880001
€ 14.00
13088
130880011
ref: 13088
PLATE-FRICTION (NAS)
130880011
€ 14.00
13088
130881146
ref: 13088
PLATE-FRICTION (NAS)
130881146
€ 13.00
13089
130891075
ref: 13089
PLATE-CLUTCH (NAS)
130891075
€ 7.50
13089
130891080
ref: 13089
PLATE-CLUTCH,T=1.6 (NAS)
130891080
€ 8.00
13089
130891081
ref: 13089
PLATE-CLUTCH,T=2.3 (NAS)
130891081
€ 8.00
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
130911041
€ 8.50
13095
130950001
ref: 13095
HOUSING-COMP-CLUTCH
€ 938.50
13106
131060002
ref: 13106
SHAFT-CLUTCH RELEASE
€ 45.50
13168
131680006
ref: 13168
LEVER,CLUTCH
131680006
€ 42.00
13187
131870002
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131870002
€ 72.50
46102
461020013
ref: 46102
ROD,CLUTCH RELEASE
€ 39.00
92022
920221390
ref: 92022
WASHER,25.3X44X1
€ 3.00
92026
920260008
ref: 92026
SPACER,30.5X56X2
€ 4.50
92026
920260009
ref: 92026
SPACER,30.2X64X8.5
€ 21.00
92026
920261238
ref: 92026
SPACER,15X28X1
920261238
€ 5.50
92046
920460001
ref: 92046
BEARING-NEEDLE,K40X48
€ 41.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92145
921450032
ref: 92145
SPRING,CLUTCH
921450032
€ 7.00
92145
921450033
ref: 92145
SPRING
921450033
€ 5.00
92150
921501855
ref: 92150
BOLT,CLUTCH OPERATING
921501855
€ 3.50
92151
921511749
ref: 92151
BOLT
€ 1.50
92152
921520190
ref: 92152
COLLAR,30X40X52.3
€ 46.50
92200
922000015
ref: 92200
WASHER,140.1X150X1.2
922000015
€ 5.00
92200
922000016
ref: 92200
WASHER,25.5X42X2.6
€ 3.50
92200
922001107
ref: 92200
WASHER,7.7X13X1.0
922001107
€ 1.50
92210
922100138
ref: 92210
NUT,25MM
922100138
€ 3.50
