HANDLEBAR

VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

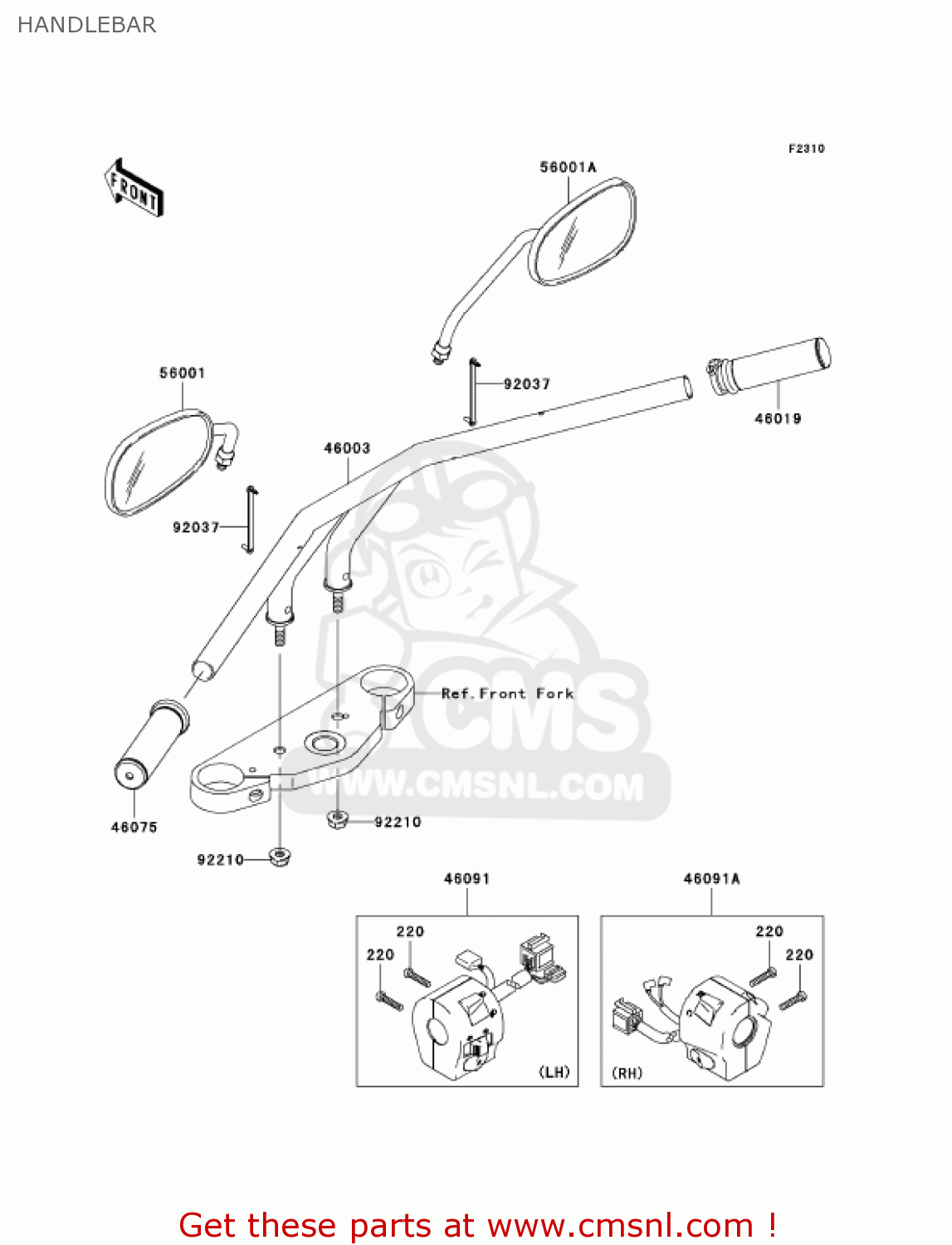

Handlebar diagram VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

220

220R0525
ref: 220

SCREW-PAN-CROS,5X25

€ 3.00

46003

460030005
ref: 46003

HANDLE

€ 154.50

46019

460191123
ref: 46019

GRIP-ASSY,THROTTLE

€ 46.00

46075

460751212
ref: 46075

GRIP,LH

€ 16.50

46091

460910026
ref: 46091

HOUSING-ASSY-CONTROL,

€ 231.00

46091A

460910027
ref: 46091A

HOUSING-ASSY-CONTROL,

€ 184.50

56001

560010019
ref: 56001

MIRROR-ASSY,LH

€ 60.50

56001A

560010020
ref: 56001A

MIRROR-ASSY,RH

€ 42.00

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92210

922101139
ref: 92210

NUT,LOCK,FLANGED 10MM

€ 2.50

HANDLEBAR

all assemblies
