FRONT WHEEL

VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

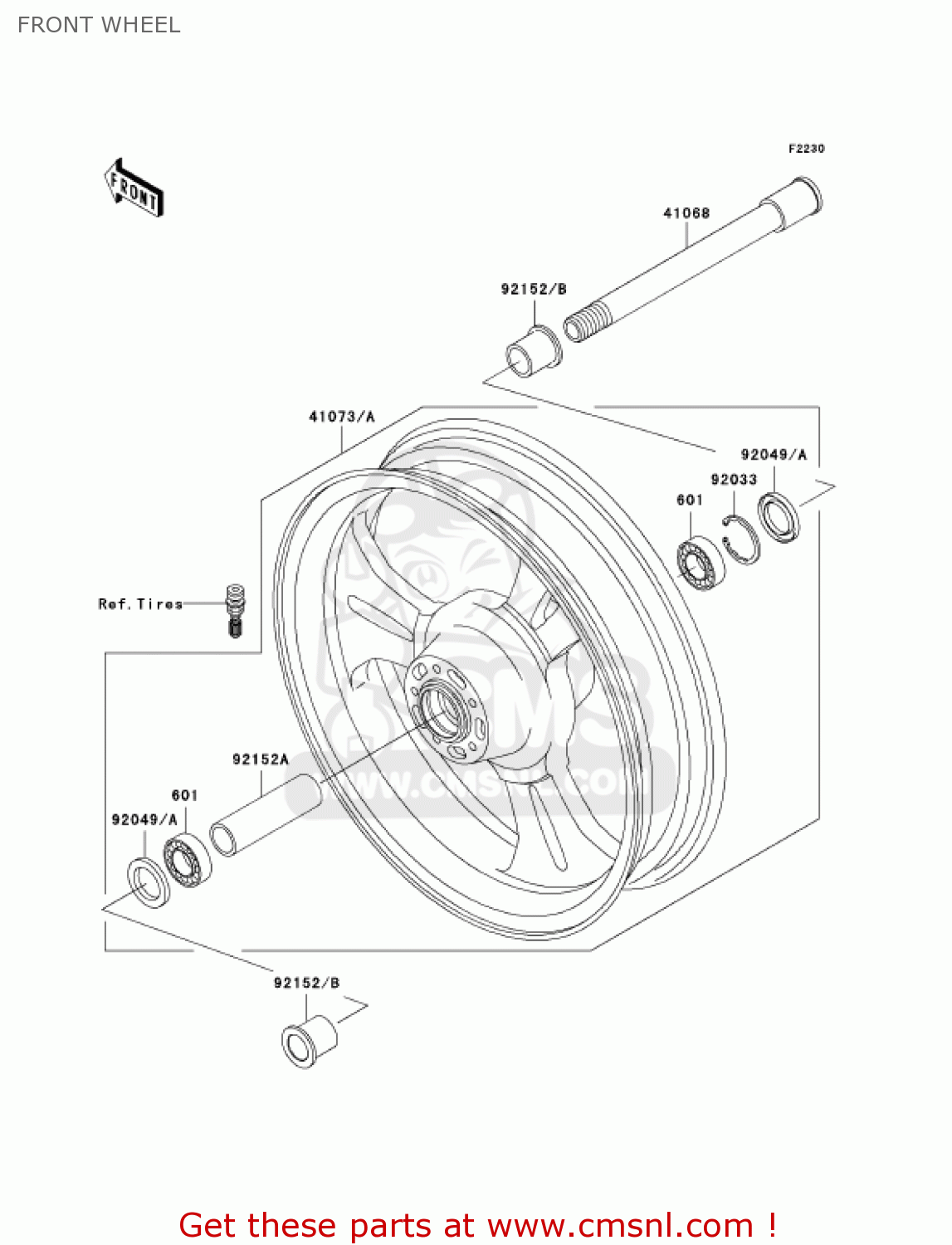

Front wheel diagram VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

FRONT WHEEL VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

FRONT WHEEL VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

601

601B6005UU
ref: 601

BEARING-BALL,#6005UU

€ 26.00

41068

410681458
ref: 41068

AXLE,FR

€ 68.00

41073

410730006496
ref: 41073

WHEEL-ASSY,FR,P.SILVE

€ 904.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92049A

920491377
ref: 92049A

SEAL-OIL,BJN 32 47 5

€ 9.50

92152A

921521308
ref: 92152A

COLLAR,FR HUB,L=109

€ 21.50

92152B

921521309
ref: 92152B

COLLAR,FR AXLE,L=34

€ 20.50
