GEAR CHANGE MECHANISM

VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

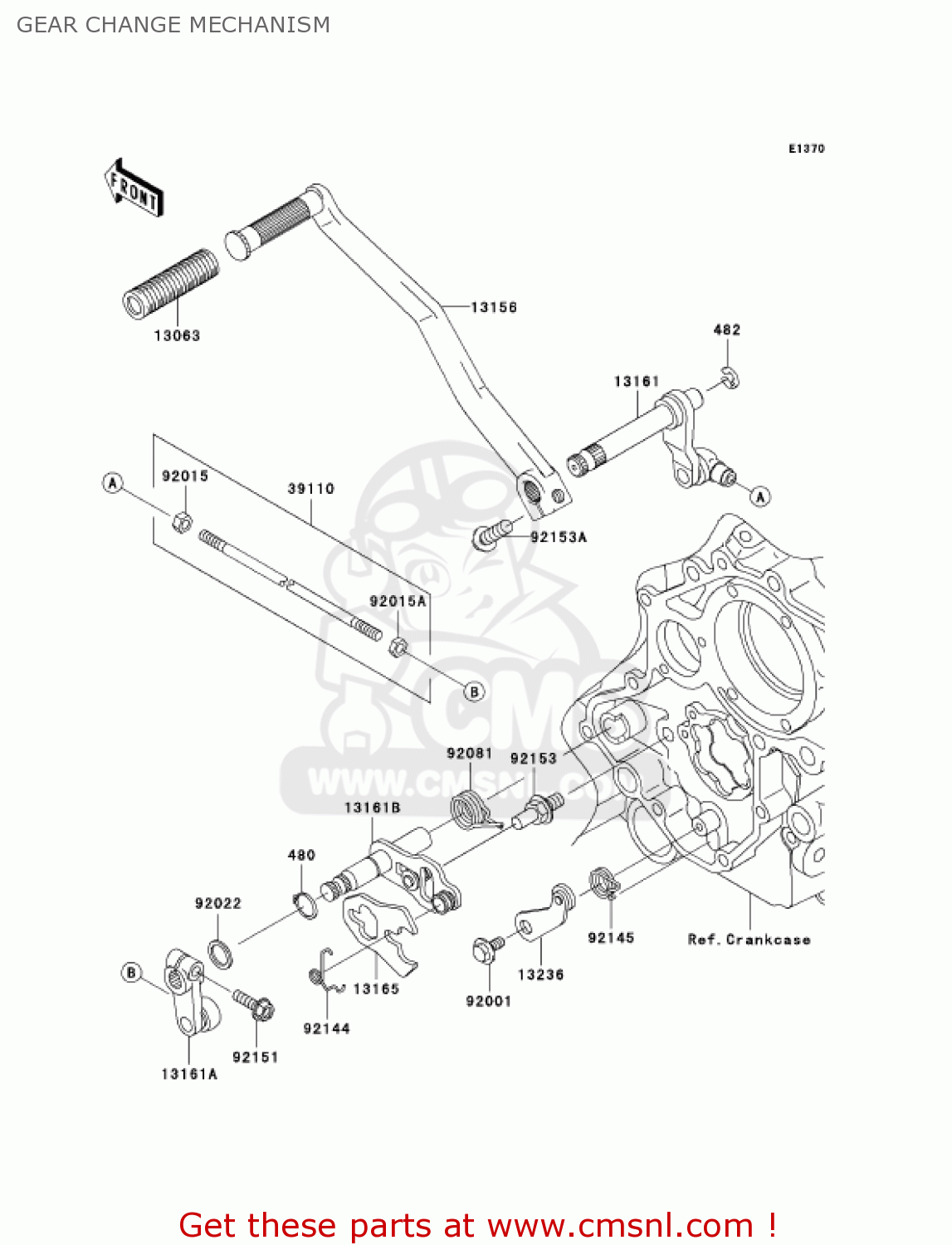

Gear change mechanism diagram VN1600B1 VULCAN 1600 MEANSTREAK 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

13063

13063002
ref: 13063

RUBBER-KICK PEDAL

€ 3.00

13156

131560013
ref: 13156

LEVER-CHANGE

€ 88.50

13161

131610006
ref: 13161

LEVER-COMP-CHANGE SHA

€ 70.50

13161A

131611253
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 53.50

13161B

131611254
ref: 13161B

LEVER-COMP-CHANGE SHA

€ 52.00

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361126
ref: 13236

LEVER-COMP,POSITION

€ 9.00

39110

391101119
ref: 39110

ROD-ASSY-TIE

€ 9.50

92001

920011715
ref: 92001

BOLT

€ 7.00

92015

920151443
ref: 92015

NUT

€ 2.50

92015A

920151444
ref: 92015A

NUT

€ 3.00

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92081

920811869
ref: 92081

SPRING,CHANGE PEDAL R

€ 7.00

92144

921441029
ref: 92144

SPRING

€ 5.00

92145

921450008
ref: 92145

SPRING,RETURN

€ 5.50

92151

921511226
ref: 92151

BOLT,6X20

€ 1.50

92153

921531076
ref: 92153

BOLT

€ 6.50

92153A

921531268
ref: 92153A

BOLT,8X25

€ 2.00
