IGNITION SYSTEM

VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

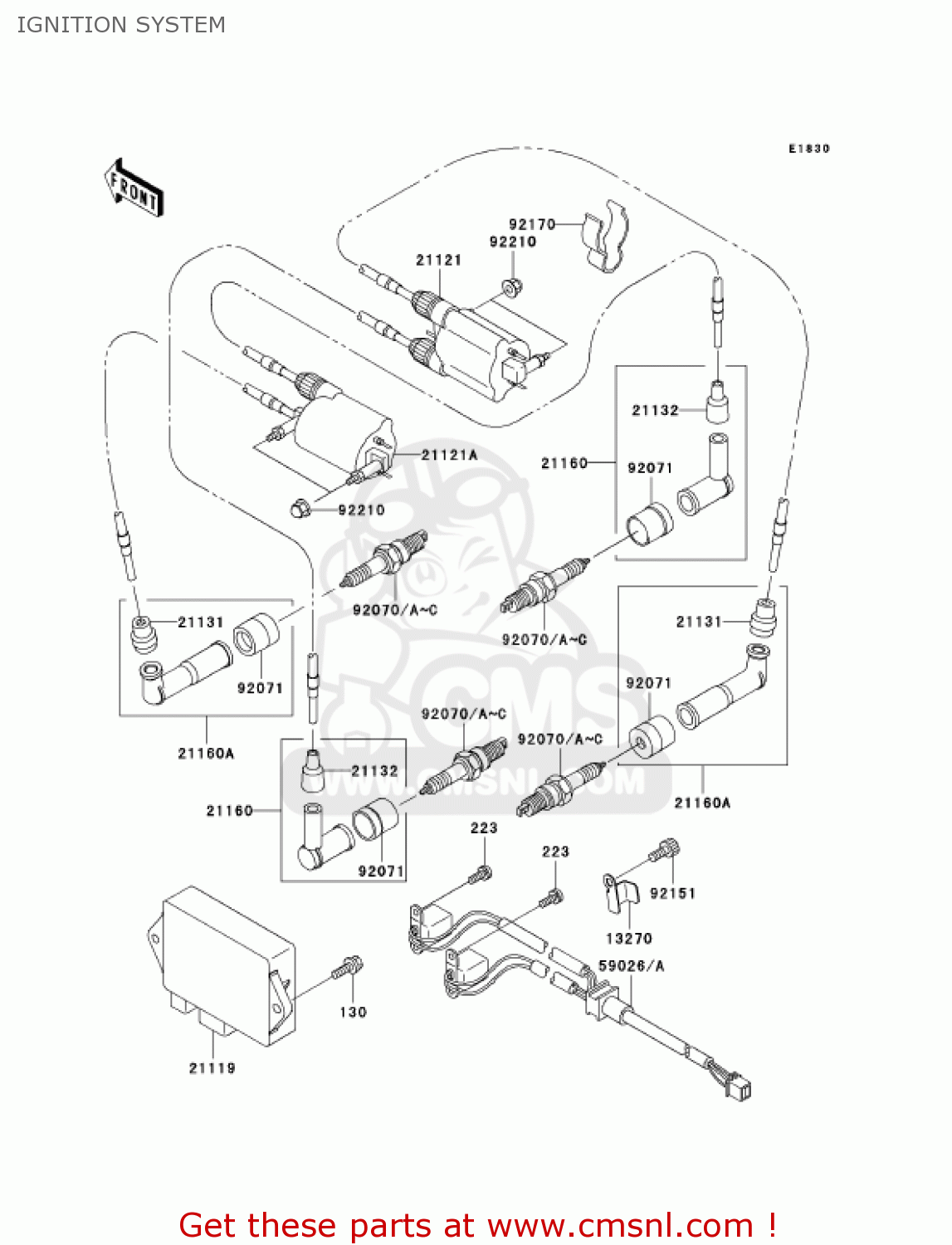

Ignition system diagram VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

IGNITION SYSTEM VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
IGNITION SYSTEM VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
IGNITION SYSTEM VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130H0620
ref: 130
BOLT-FLANGED
130H0620
€ 0.50
223
223B0516
ref: 223
SCREW-PAN-WS-CROS
223B0516
€ 2.50
13270
132701979
ref: 13270
PLATE
€ 2.00
21119
211191515
ref: 21119
IGNITER
211191515
€ 708.50
21121
211211288
ref: 21121
COIL-IGNITION,RR
€ 171.00
21121A
211211289
ref: 21121A
COIL-IGNITION,FR
211211289
€ 180.00
21131
21131005
ref: 21131
GROMMET,TENSION,ITALY
21131005
€ 4.00
21132
21132005
ref: 21132
GROMMET,SPARK PLUG CP
21132005
€ 2.50
21160
211601085
ref: 21160
CAP-ASSY-PLUG
211601085
€ 15.00
21160A
211601091
ref: 21160A
CAP-ASSY-PLUG
211601091
€ 15.50
59026A
590261157
ref: 59026A
COIL-PULSING
€ 85.00
92070
920701138
ref: 92070
(OPTION)
DPR6EA-9 (NGK SPARKPL
€ 4.00
92070A
?
ref: 92070A
(LOCAL PROCUREMENT I
?
92070B
920701250
ref: 92070B
DPR5EA-9 (NGK SPARKPL
€ 4.50
92070C
?
ref: 92070C
(LOCAL PROCUREMENT I
?
92071
920711184
ref: 92071
GROMMET,PLUG CAP
920711184
€ 4.00
92151
921513704
ref: 92151
BOLT,SOCKET,6X10
€ 2.50
92170
921701930
ref: 92170
CLAMP,HOSE
€ 5.50
92210
922100003
ref: 92210
NUT
922100003
€ 0.50
