AIR CLEANER

VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

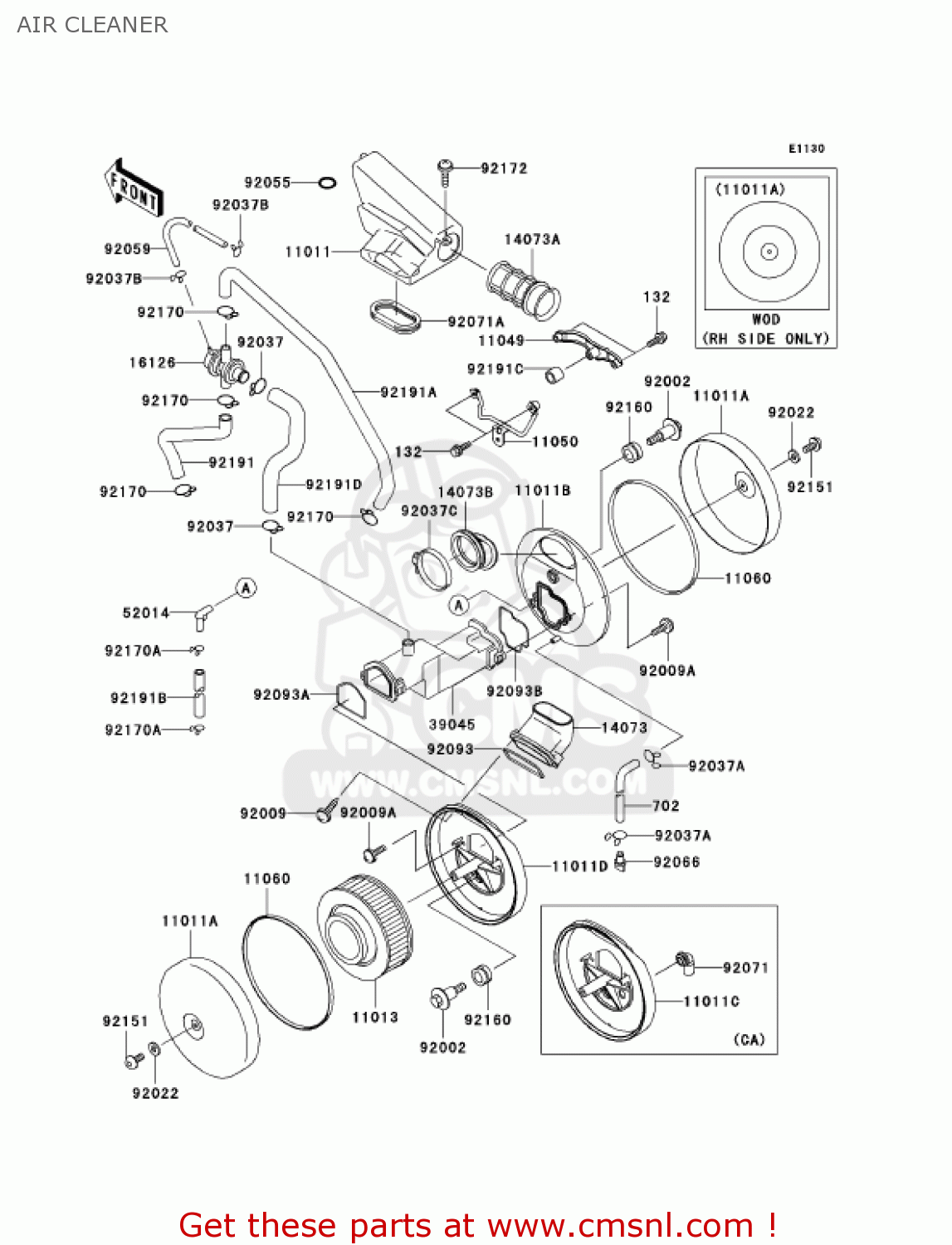

Air cleaner diagram VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

AIR CLEANER VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
AIR CLEANER VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
AIR CLEANER VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11011
110111488
ref: 11011
CASE-AIR FILTER,CENTE
€ 51.00
11011A
110111489
ref: 11011A
CASE-AIR FILTER,OUTSI
110111489
€ 65.00
11011B
110111529
ref: 11011B
CASE-AIR FILTER,RH
110111529
€ 73.50
11011C
110111533
ref: 11011C
[CA]
AIR FILTER CASE,LH
€ 48.50
11011D
110111570
ref: 11011D
[US]
CASE-AIR FILTER,LH
110111570
€ 73.50
11013
110131248
ref: 11013
ELEMENT-AIR FILTER
110131248
€ 40.00
11049
110491539
ref: 11049
BRACKET,AIR FILTER,RH
€ 24.50
11050
110501510
ref: 11050
BRACKET,AIR FILTER,LH
110501510
€ 24.00
11060
110601736
ref: 11060
GASKET,AIR FILTER CAS (NAS)
110601736
€ 13.00
14073
140731658
ref: 14073
DUCT,AIR FILTER,LH
€ 23.50
14073A
140731660
ref: 14073A
DUCT
140731660
€ 20.50
14073B
140731712
ref: 14073B
DUCT,AIR FILTER,RH
140731712
€ 23.50
16126
161261356
ref: 16126
VALVE,AIR SWITCH
€ 176.50
39045
390451056
ref: 39045
DUCT-ASSY
€ 92.50
52014
520141083
ref: 52014
ELBOW
520141083
€ 5.50
92002
920021595
ref: 92002
BOLT,HEAD COVER
920021595
€ 8.50
92009
920091264
ref: 92009
SCREW,TAPPING,5X16
920091264
€ 0.50
92009A
920091905
ref: 92009A
SCREW
920091905
€ 1.50
92022
92022193
ref: 92022
WASHER,6.5X20X1.6,WHI
92022193
€ 3.50
92037
920371076
ref: 92037
CLAMP,TUBE
920371076
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
920371712
€ 3.00
92037C
920371859
ref: 92037C
CLAMP
920371859
€ 5.50
92055
920551282
ref: 92055
RING-O
920551282
€ 3.00
92059
920591133
ref: 92059
TUBE,4X9X290
€ 7.00
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920711114
ref: 92071
[CA]
GROMMET,AIR FILTER
€ 16.50
92071A
920711233
ref: 92071A
GROMMET
€ 7.50
92093
920931408
ref: 92093
SEAL,AIR FILTER CASE
920931408
€ 7.50
92093A
920931459
ref: 92093A
SEAL,DUCT,LH
920931459
€ 4.50
92093B
920931460
ref: 92093B
SEAL,DUCT,RH
920931460
€ 4.00
92151
921511503
ref: 92151
BOLT,6X14
921511503
€ 1.50
92160
921601594
ref: 92160
DAMPER
921601594
€ 3.00
92170
921701445
ref: 92170
CLAMP,TUBE
921701445
€ 3.00
92170A
921701695
ref: 92170A
CLAMP
921701695
€ 1.50
92172
921720004
ref: 92172
SCREW,6X14
921720004
€ 2.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
702
702A07260
ref: 702
TUBE-RUBBER,7X10X260
702A07260
€ 4.50
92191
921911050
ref: 92191
TUBE,HEAD,FR-AIR SWIT
€ 15.50
92191A
921911051
ref: 92191A
TUBE,HEAD,RR-AIR SWIT
€ 22.00
92191B
921911054
ref: 92191B
TUBE,BREATHER
921911054
€ 12.50
92191C
921911089
ref: 92191C
TUBE,15.5X22.5X20
921911089
€ 1.50
92191D
921911266
ref: 92191D
TUBE,AIR SWITCH-DUCT
921911266
€ 10.00
