CHASSIS ELECTRICAL EQUIPMENT

VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

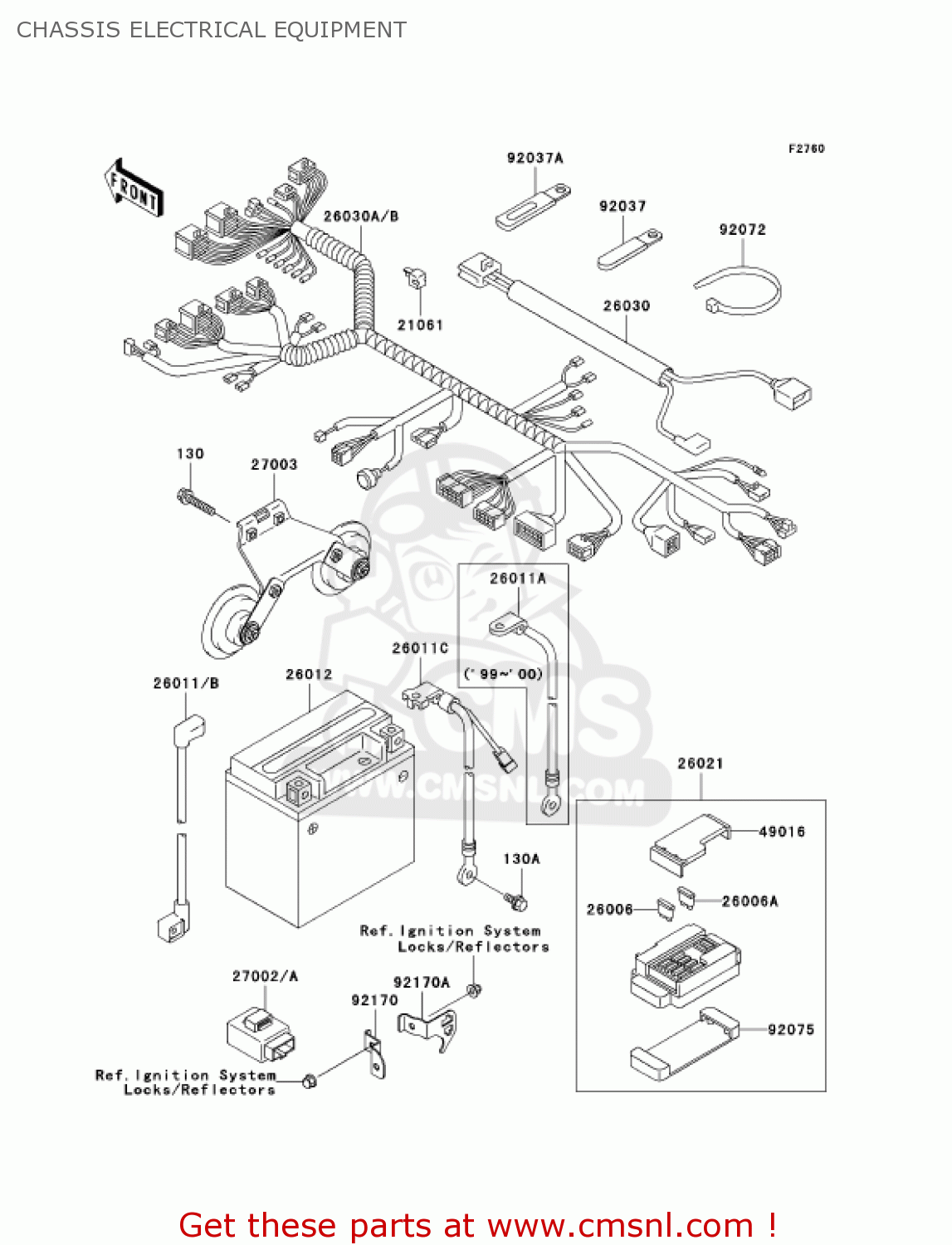

Chassis electrical equipment diagram VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA

CHASSIS ELECTRICAL EQUIPMENT VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT VN1500E5 VULCAN 1500 CLASSIC 2002 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130J0630
ref: 130
BOLT FLANGED,6X30,BLC
130J0630
€ 2.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011B
260111770
ref: 26011B
WIRE-LEAD,BATTERY(+)
€ 22.50
26011C
260111771
ref: 26011C
WIRE-LEAD,BATTERY(-)
€ 20.50
26012
260121368
ref: 26012
BATTERY,MF,FTH16-BS,1
€ 165.50
26021
260211089
ref: 26021
JUNCTION BOX
260211089
€ 126.00
26030
260301450
ref: 26030
HARNESS,SUB
260301450
€ 14.00
26030B
260301797
ref: 26030B
HARNESS,MAIN
€ 189.00
27002A
270021111
ref: 27002A
RELAY-ASSY,SIGNAL LAM
€ 95.50
27003
270031406
ref: 27003
HORN
270031406
€ 106.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92037A
920371780
ref: 92037A
CLAMP
920371780
€ 4.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701699
ref: 92170
CLAMP,IGNITION SWITCH
€ 4.50
92170A
921701700
ref: 92170A
CLAMP,RR BRAKE SWITCH
€ 4.00
